MS2008B Auto Manual Range Digital Clamp AC Volt Current Res Cap Temp Freq Meter

MS2008B Auto Manual Range Digital Clamp AC Volt Current Res Cap Temp Freq Meter

Please note:send without battery

Introduction
This meter 3 3/4 digits with steady operations,fashionable structure and highly reliable measuring instrument.

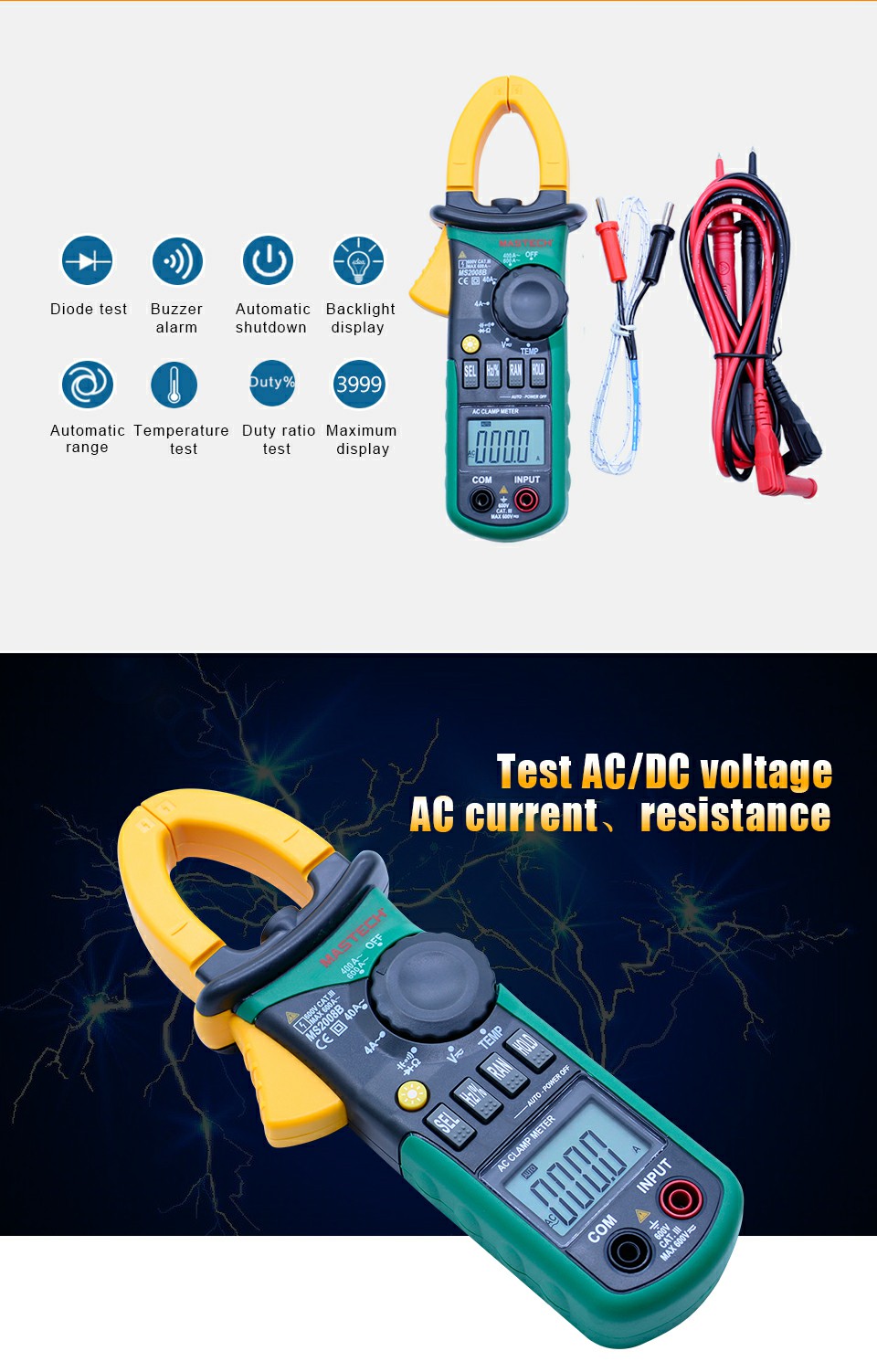

The Meter uses large scale of integrated circuit with double integrated A/D converter as its core and hasfull range overload protection.The meter can perform measurements of AC current, AC/DC voltage, resistance,capacitance as well as continuity and diode test.

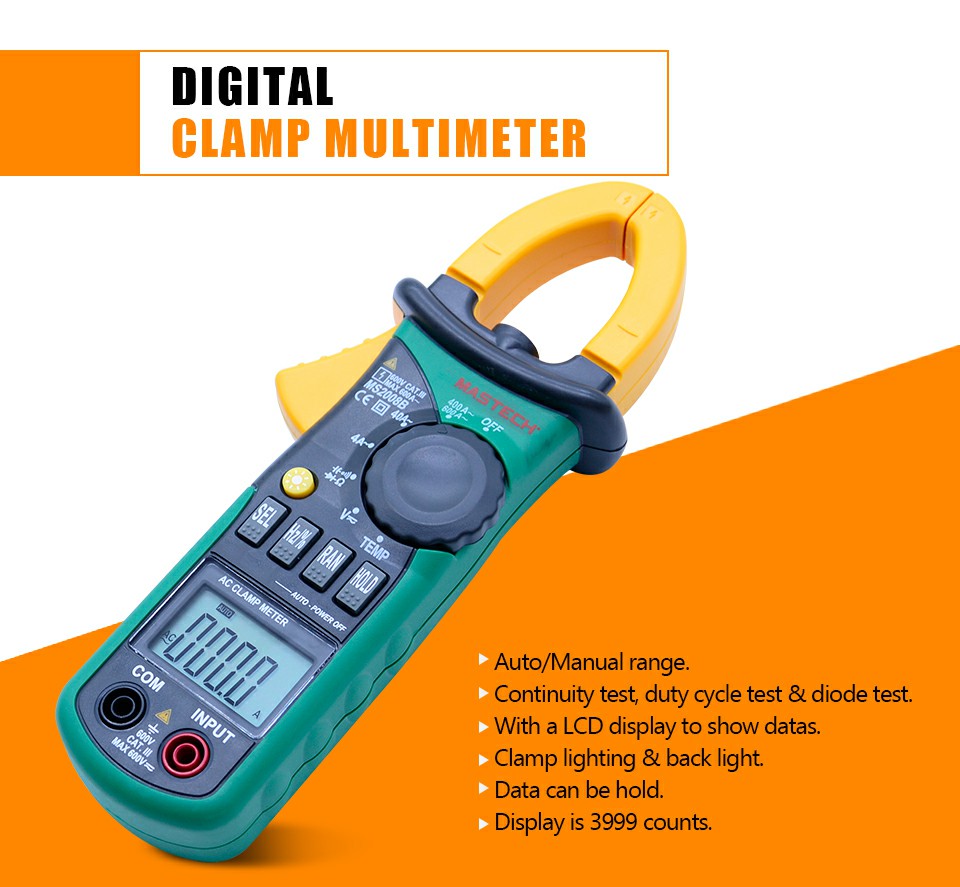

Features
1.Maximum voltage including transient overvoltage between any terminals and grounding: CATⅢ 600VDC or 600V AC peak
2.Display :LCD screen, max reading 3999
3.Measurement principle:double integrated A/D converter
4.Range mode:Auto Range or manual Range
5.Measurement Speed:(2.5~3 times)/ Second
6.Unit display:Sign
7.Polarity Display:－
8.Overloading:'OL'
9.Data hold and Low Battery indication display
10.Power supply: DC1.5V Х3 SIZE AAA battery (Not Included)

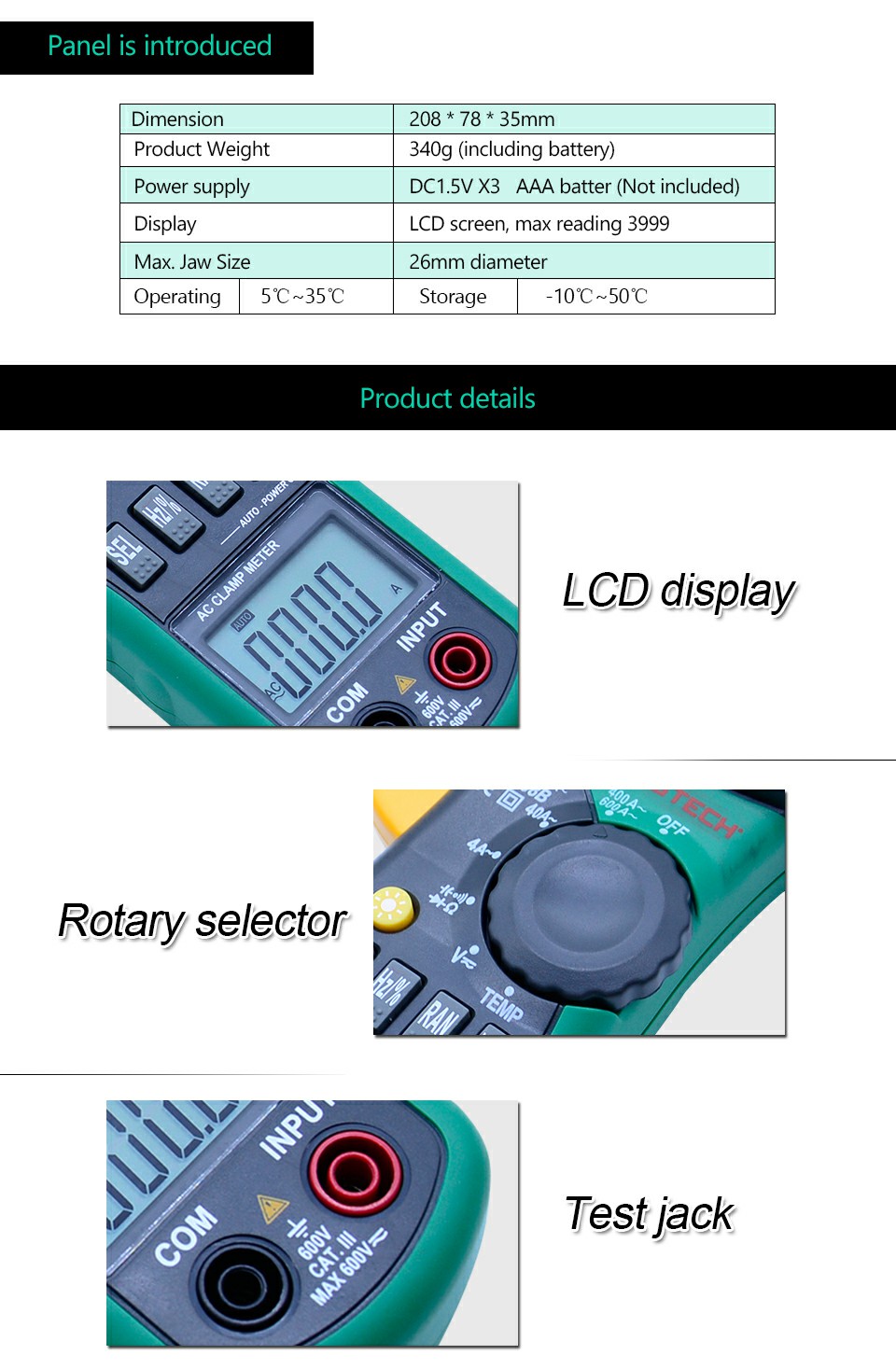

11.Dimensions :208mm×78mm×35mm
13.Max. Jaw Size:26mm diameter
14.Operating:5°~35° ,Storage:-10°~50°

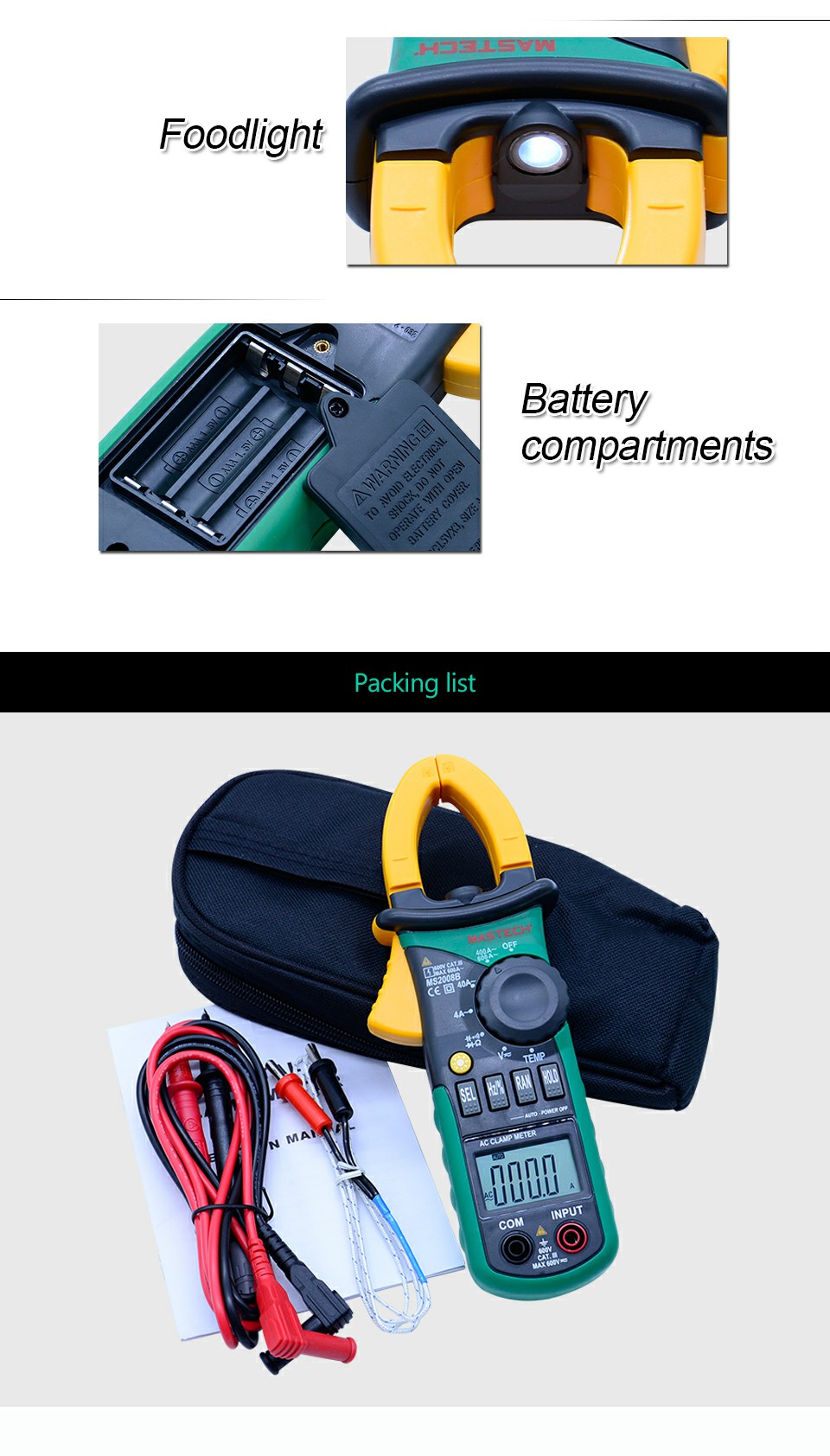

Package List
1*Digital multimeter clamp MS2008B
1*English user manual
1*Bag
2*Test pen
1*Thermocouple

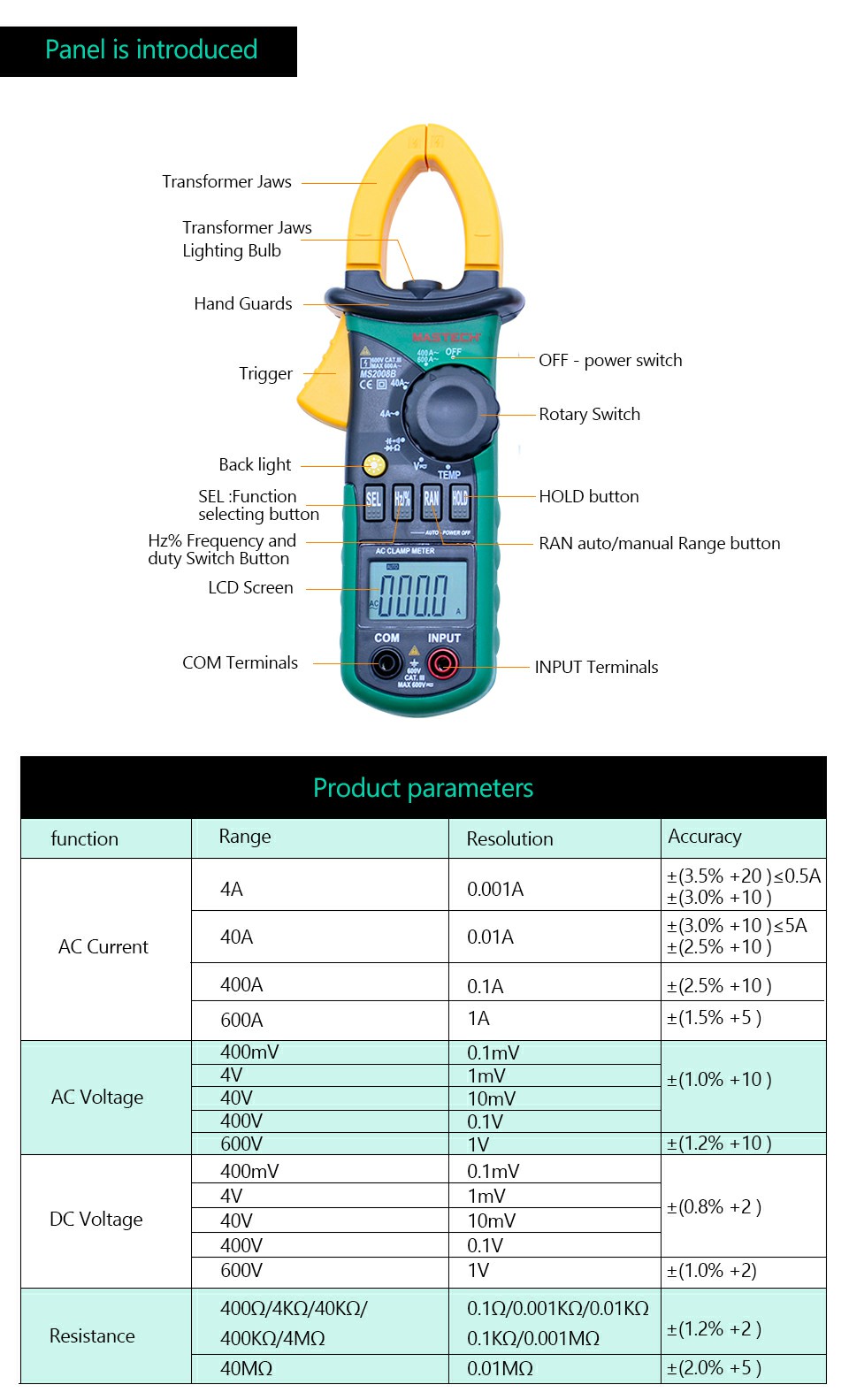

Specifications
