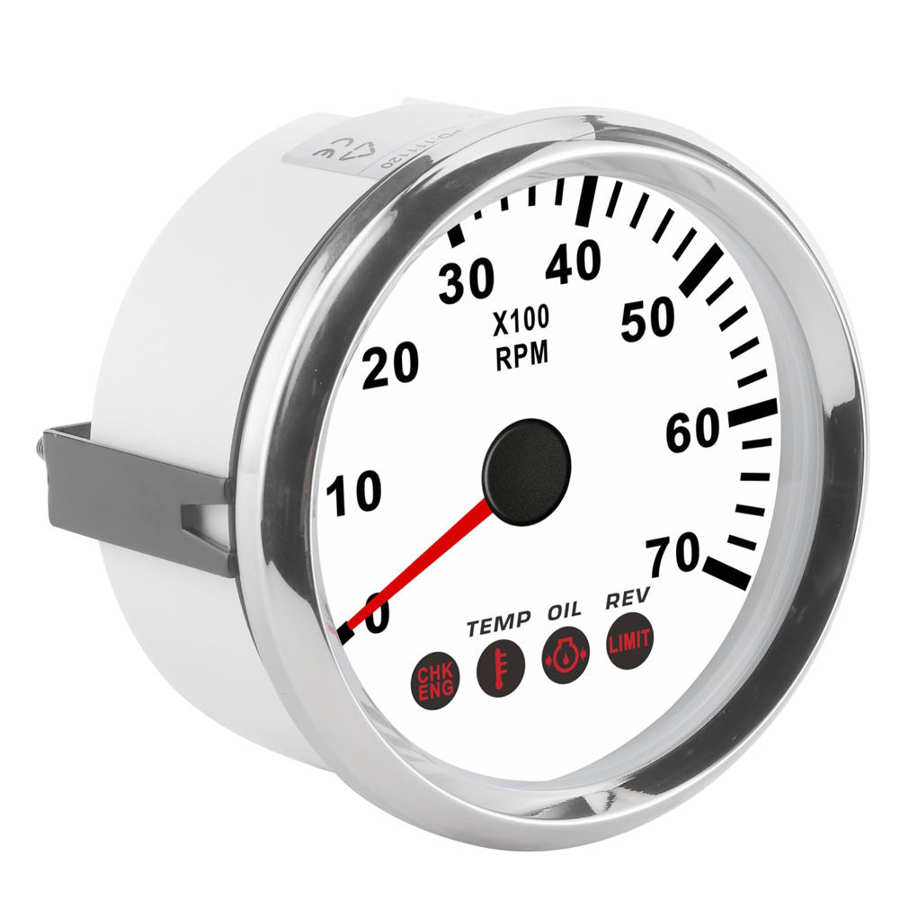

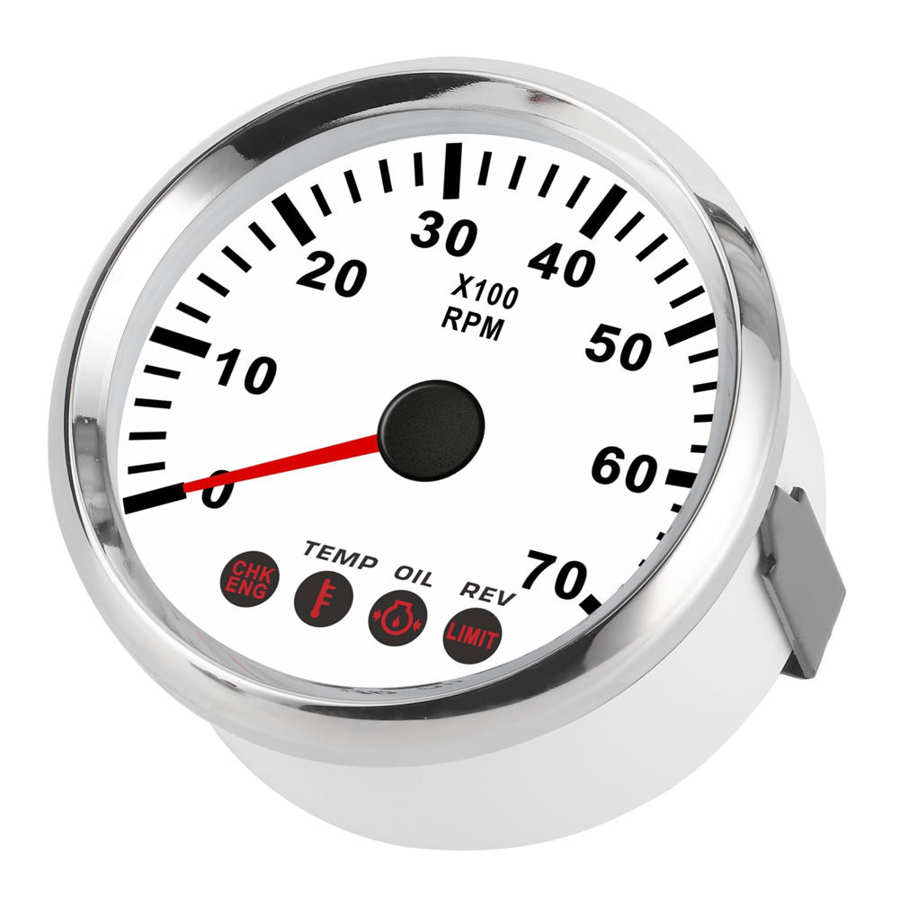

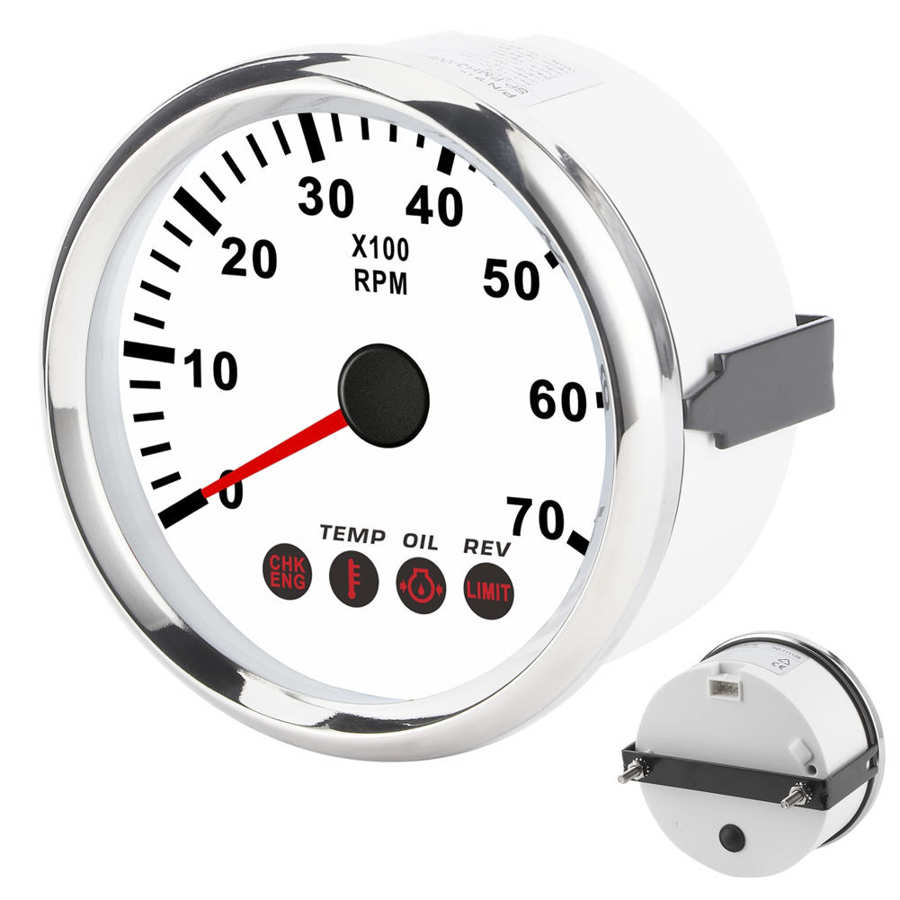

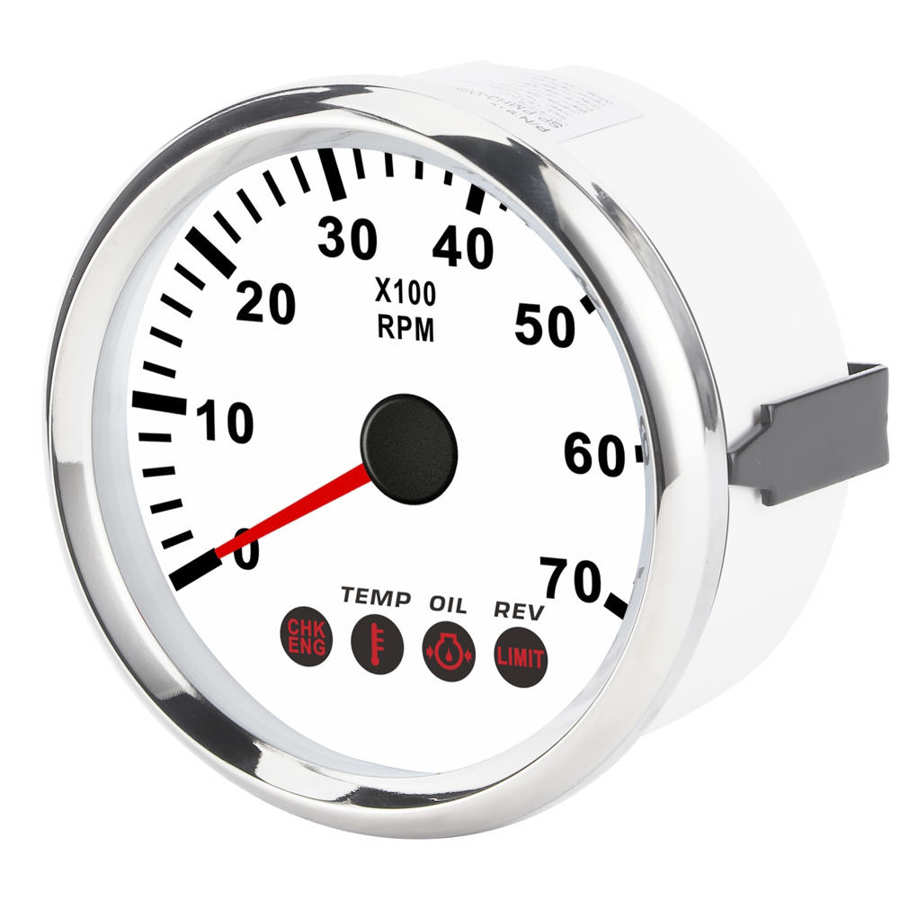

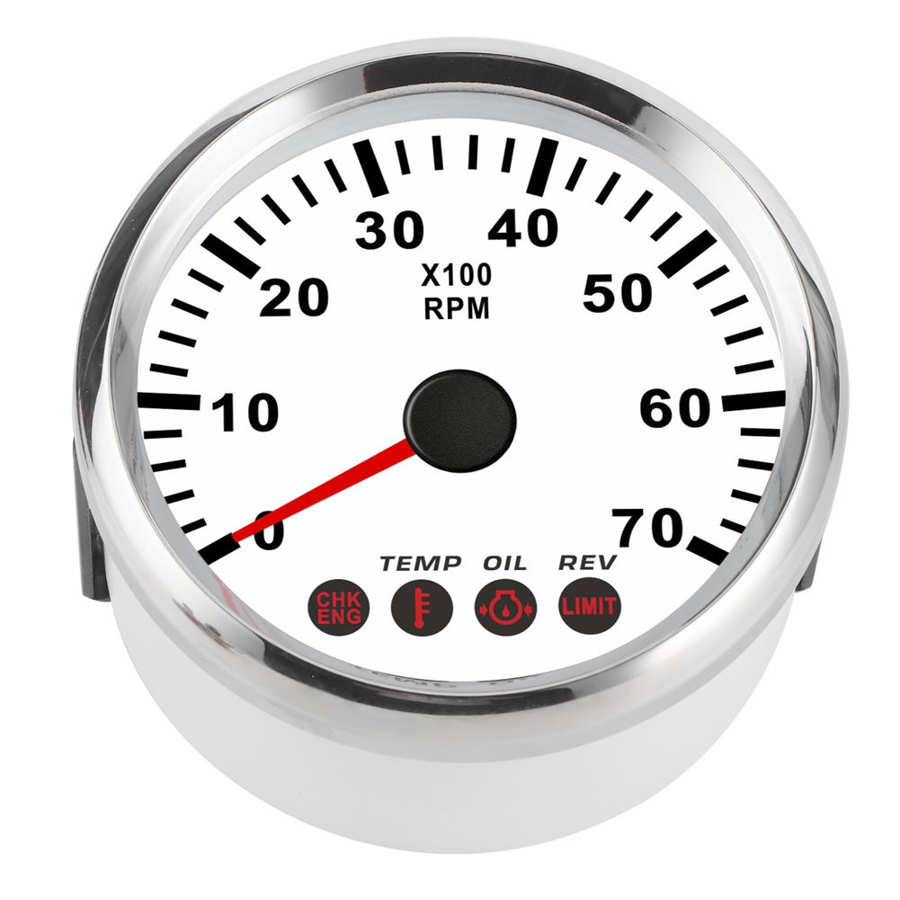

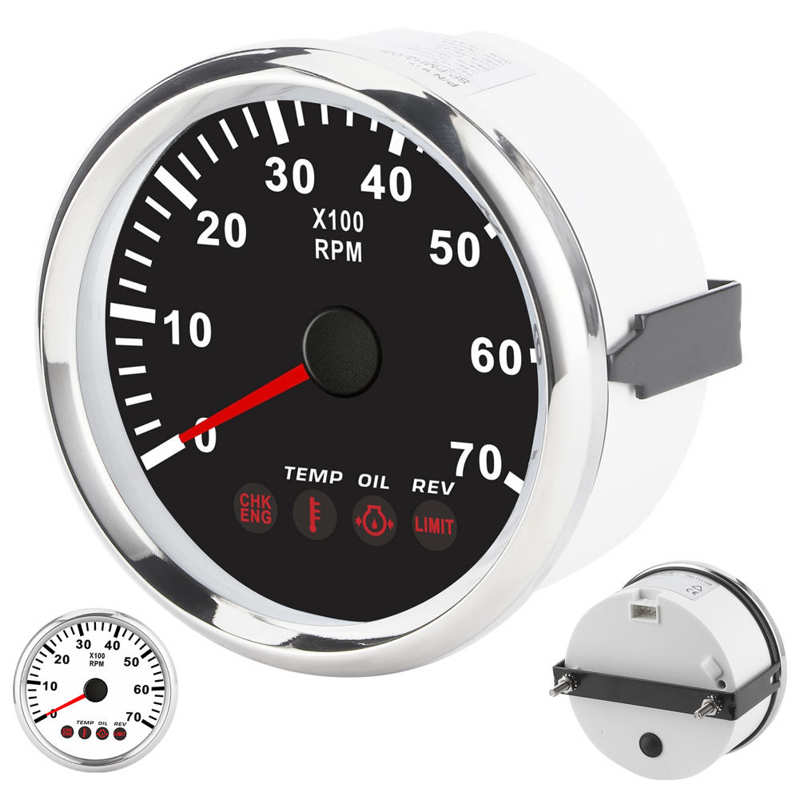

85mm 0‑7000RPM Tachometer Gauge with Oil Pressure Temp Engine Failure Alarm for Boat Motorcycle Truck Tacho Gauge

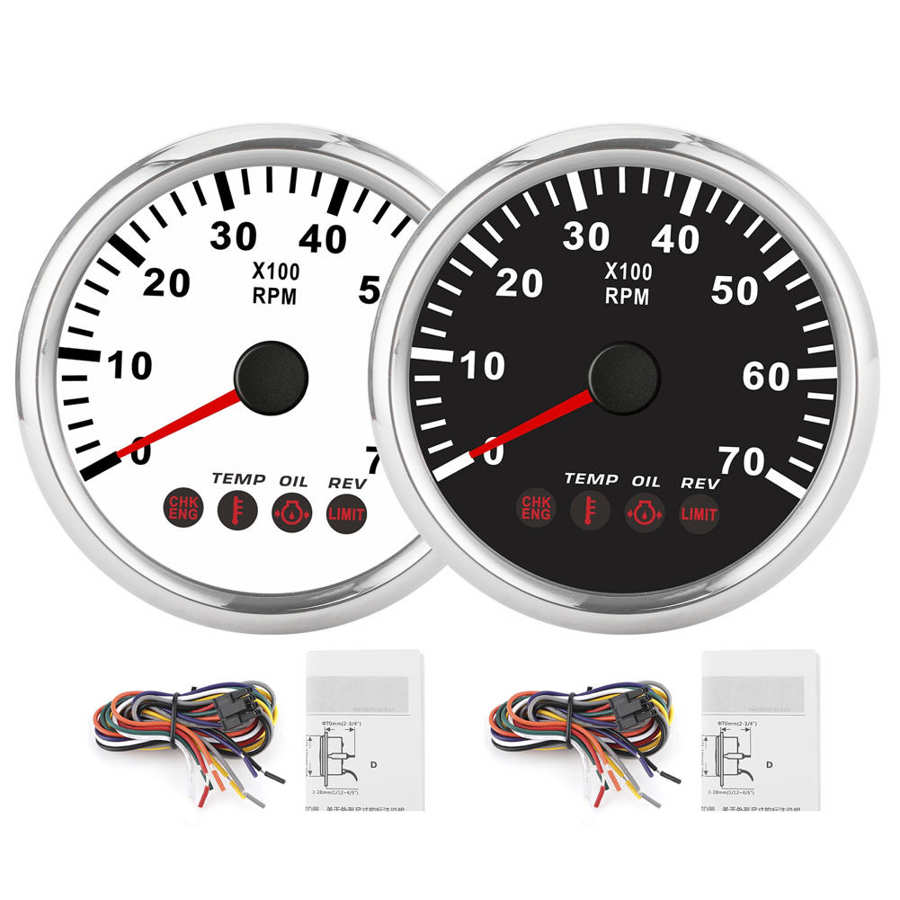

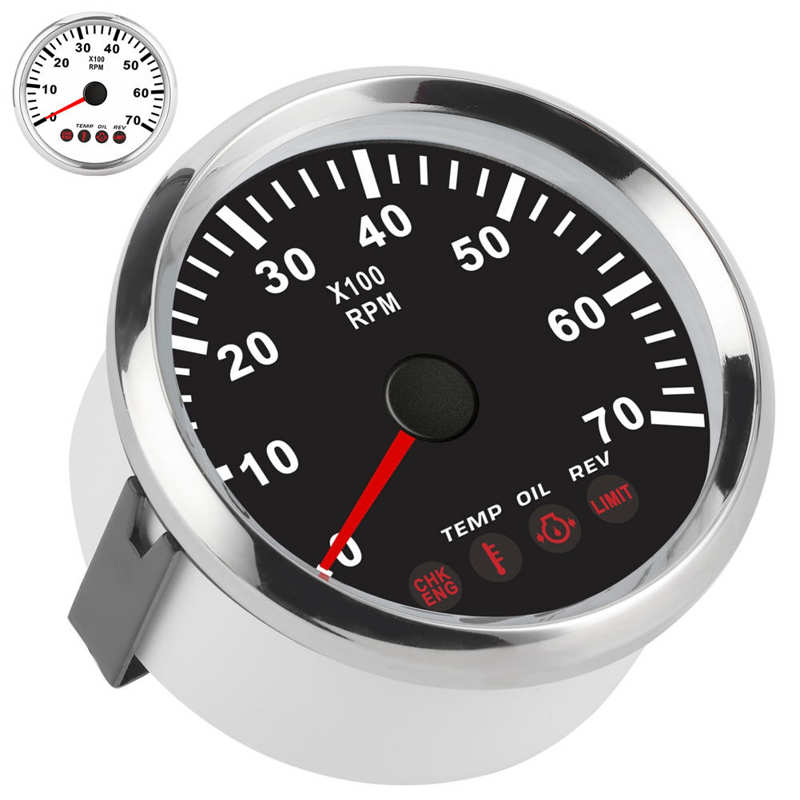

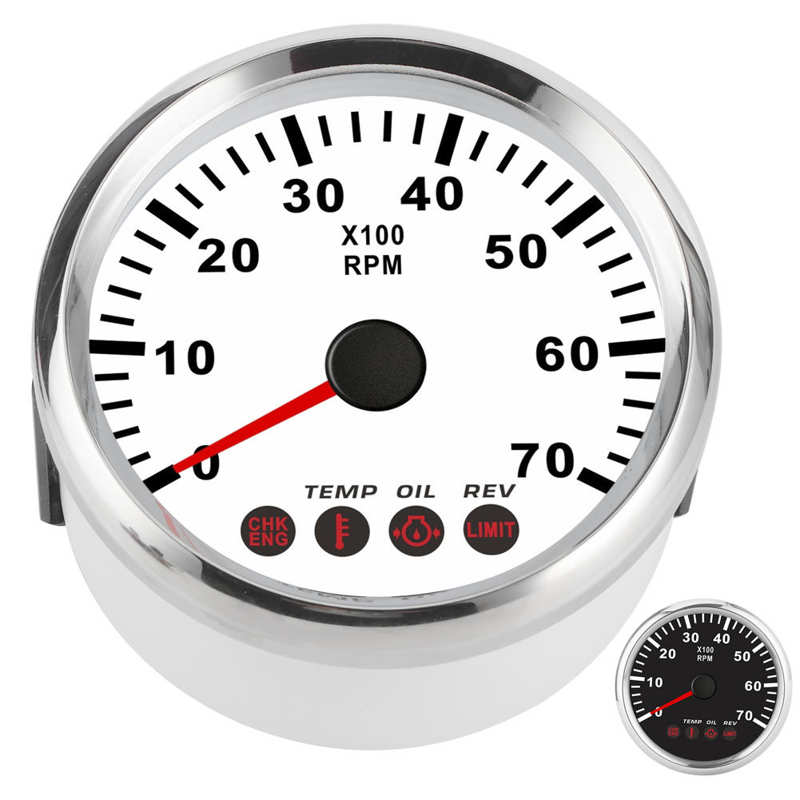

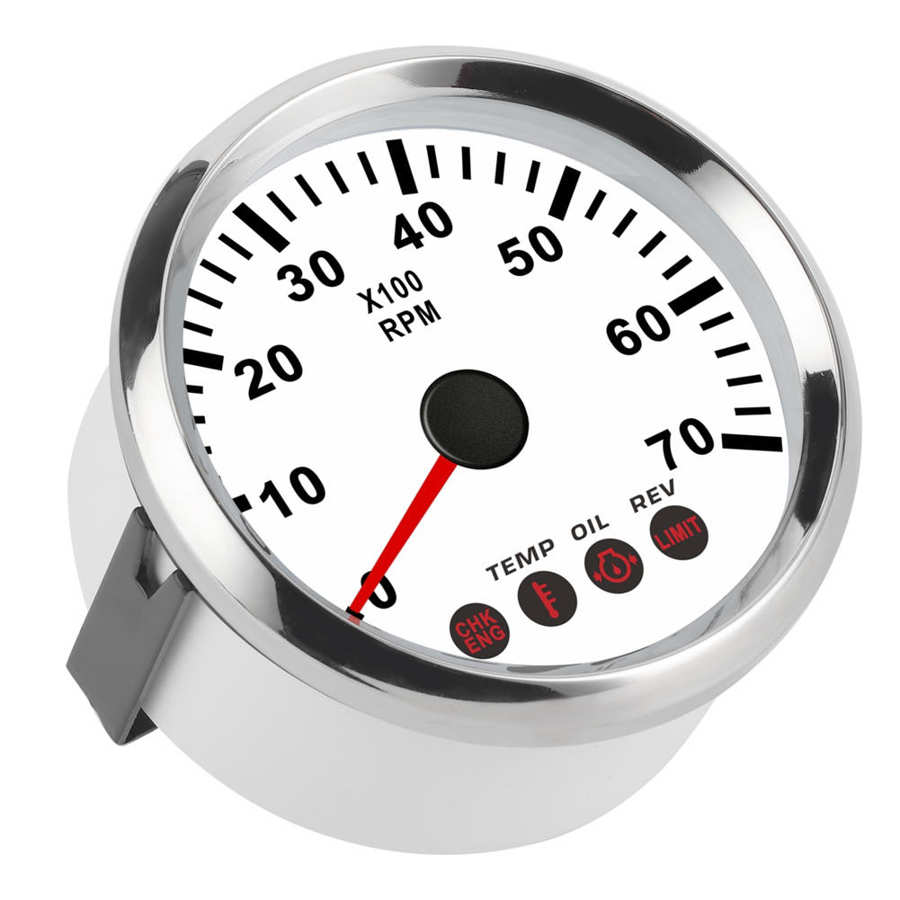

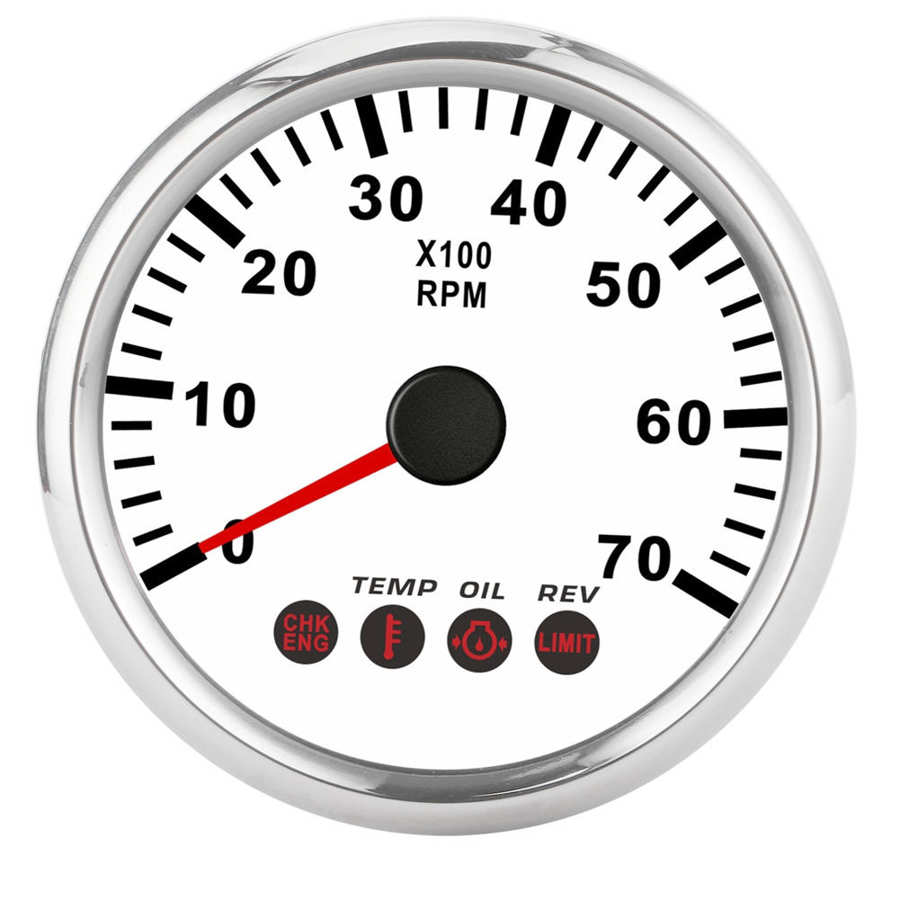

STYLE: Silver frame on white, Silver frame on black

Specification:

Condition: 100% Brand New
Item Type: Tachometer
Material: 316 Stainless Steel+ABS+PVC

Install Diameter: Approx. 85mm (3-3/8in)
Indication Range: 0-7000RPM
Working Voltage: 9-32V DC
Connection Type: Row insert
Backlight Color: Red
Operating temperature: -30-75℃
Storage temperature: -40-85℃
Protection Grade: IP67, back cover is IP5

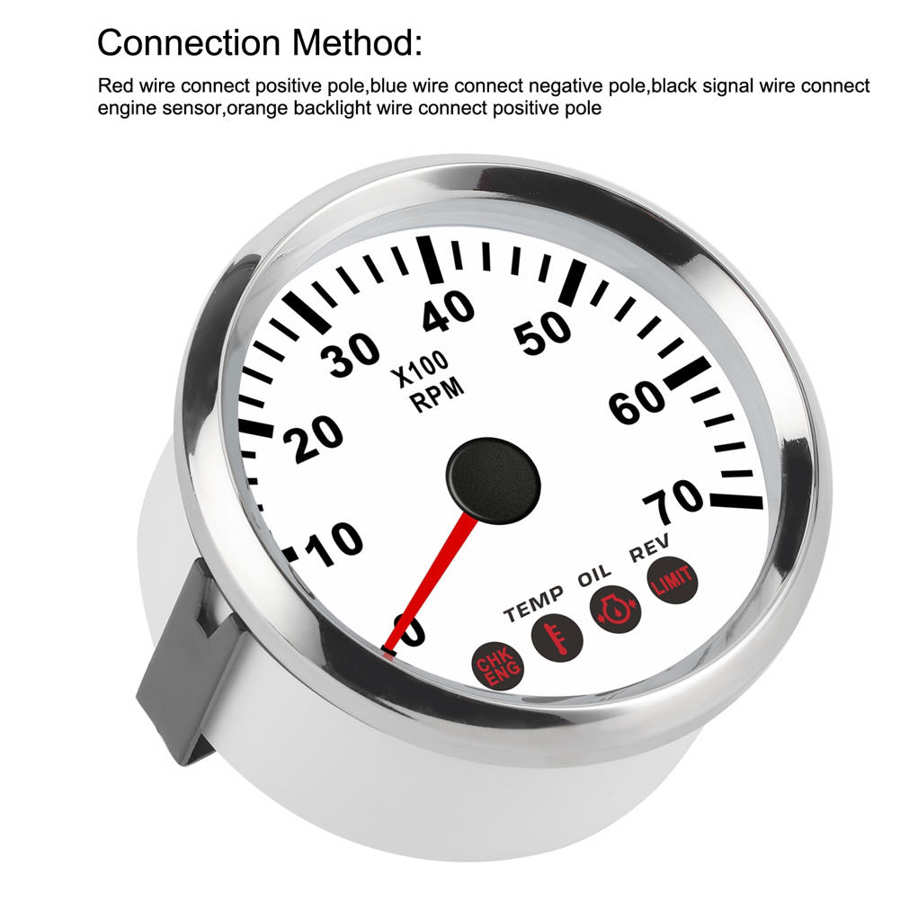

Connection Method: Red wire connect positive pole,blue wire connect negative pole,black signal wire connect engine sensor,orange backlight wire connect positive pole

Installation Instruction:
1. Opening a hole in the panel (your cabin board and dashboard) with a diameter of 85mm,insert meter into the hole,the panel corresponding to the instrument panel is marked with a convex table,and open a small notch in this location,to ensure that there is at least 85mm (3-3/8in) of the instrument panel at the back of the instrument.

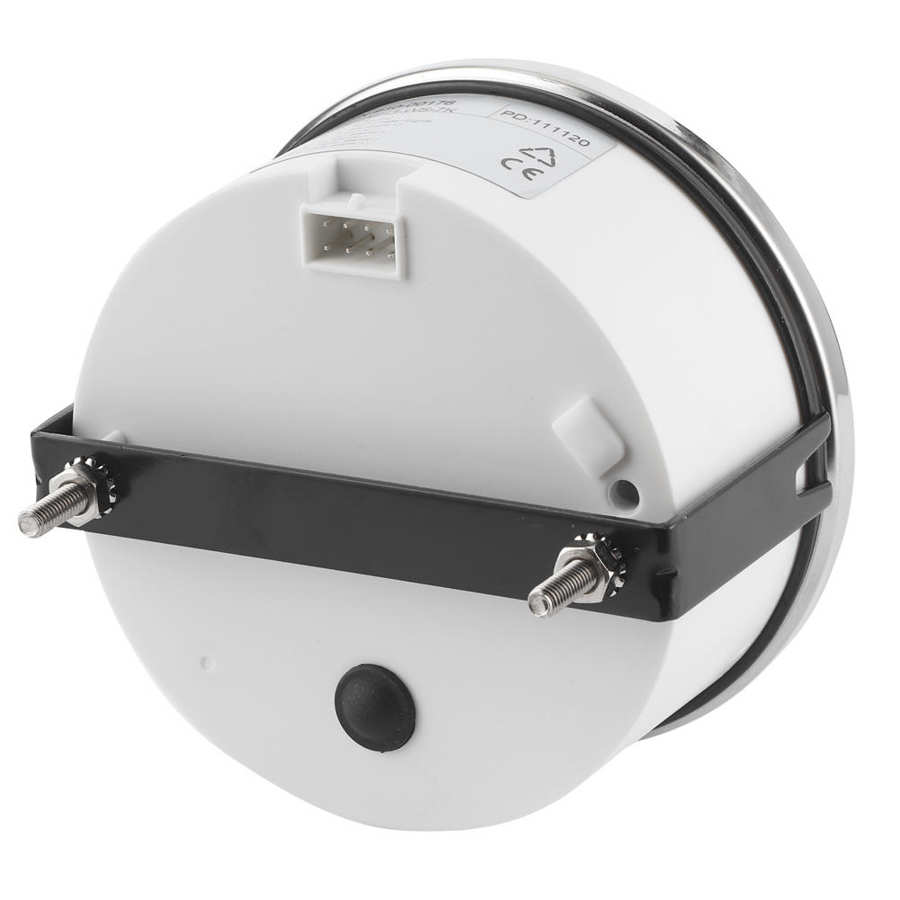

2. After the instrument is mounted in the panel,screw down with a fixed .
3. Connect the wire,the instrument housing is directly connected to the 12/24v power supply.
4. Insert wire harness,firmly locked in the table.

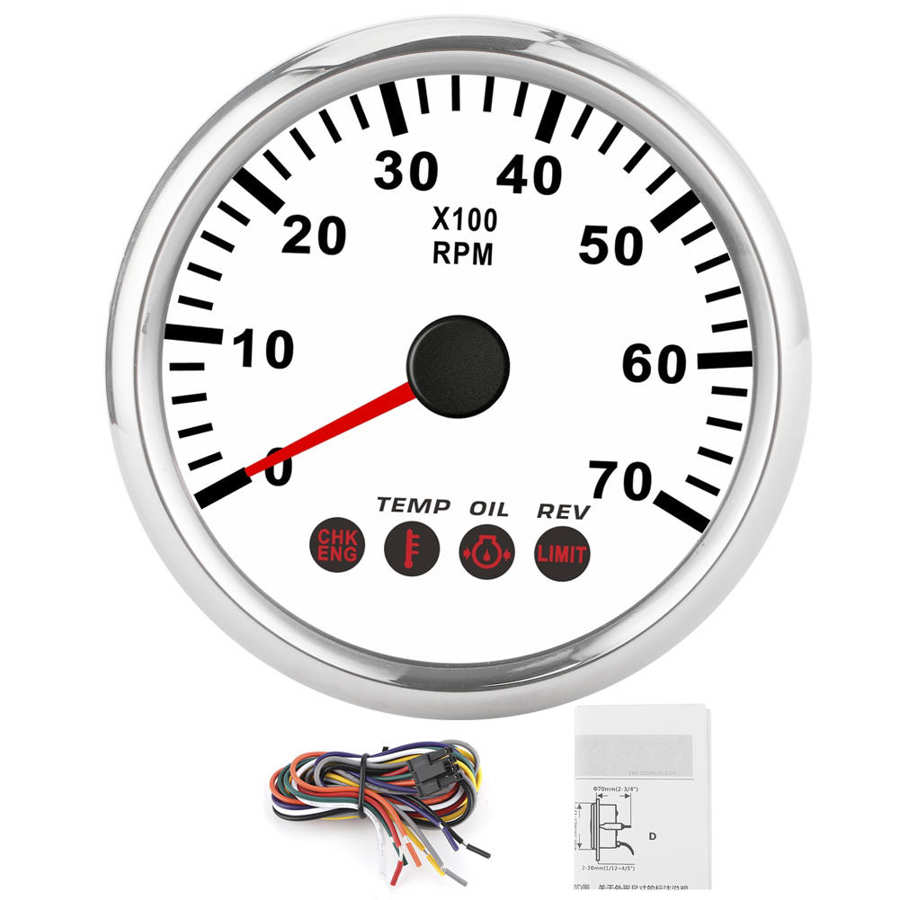

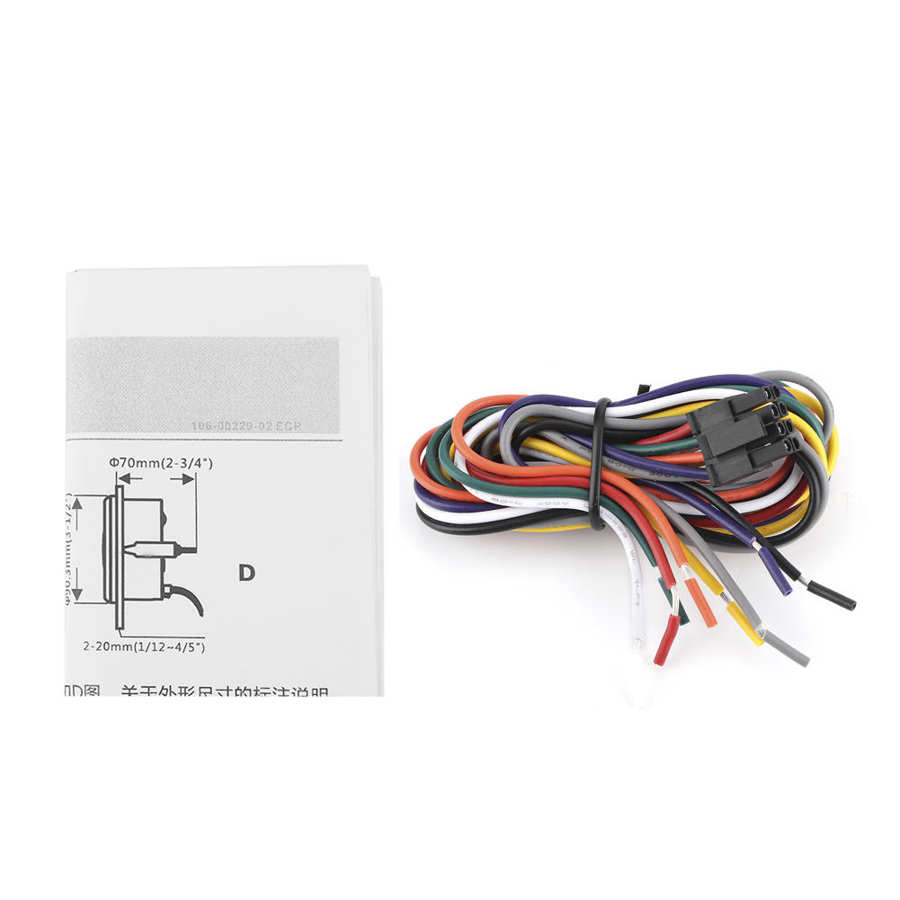

Package List:

1 x Manual

Note:
