Thinkcar Thinkscan Plus S6 OBD2 Automotive Tools 4 System Diagnosis Oil SAS EPB TPMS ETS Reset Professional Automotive Scanner

Thinkcar Thinkscan Plus S6 4 System (ABS, ENGINE, SRS, TRANSMISSION)+EPB, OIL, TPMS,SAS, ETS Reset

SRS System Safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic device can detect every electronic parameter to check its health status.Read and clear fault code in SRS (Airbag) system and turn off warning light of airbag for making sure engine work properly and safely. ABS system Read and clear DTCs data flow in the ABS system. Performs various tests to check the operating conditions of Anti-lock Braking System, and turn off the warning light. Engine System Thinkscan Plus S6 can help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission. transmission system Read and clear codes and view live data in transmission systems, keeps the transmission systems output optimally adapted to the speed and load. Retrieve the error information from Automatic Transmission (AT) which is a type of motor vehicle transmission that can automatically change gear ratios as the vehicle moves, freeing the driver from having to shift gears manually.

5 Reset Service Functions

1.Oil Lamp Reset Service Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil. 2.EPB Electronic Park Brake Reset It is important in the maintenance of electronic braking system's safety and efficiency. 3.TPMS Tire Pressure Monitoring System Reset Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors. 4.SAS Steering Angel Sensor Reset Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration. 5. ETS(Throttle) The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

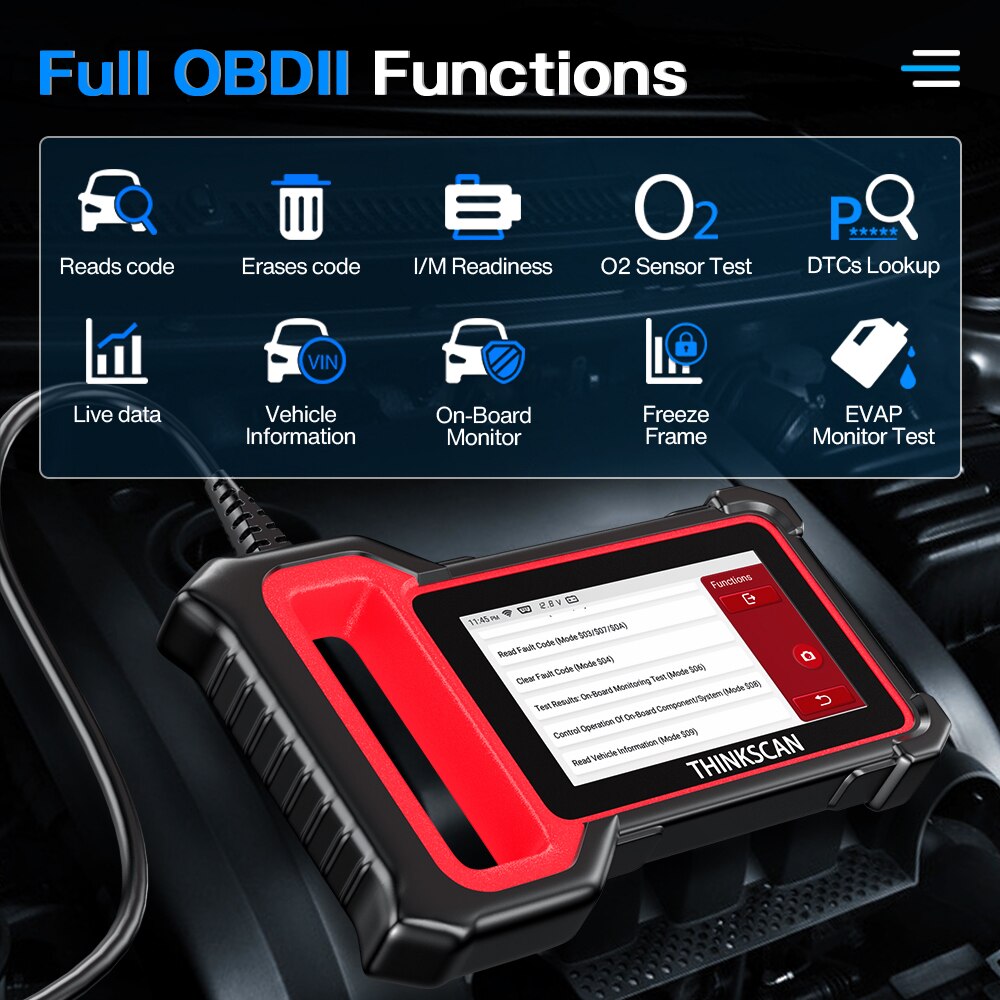

Full OBD2 Functions

1.Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs) 2.Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors. 3.Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data. 4.I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing. 5.Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display. 6.View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs. 7.O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer. 8.On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems. 9.Read Vehicle Information:Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc. 10.Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

What Else you can get?

AUTOVIN Scan, make diagnostic more easy Live Data in Graph, One-Key Wifi Update One-Key Screenshot One-Key Screen Recorder DTC Look-up

Diagnostic Report Print

Share the Diagnostic report with your friends via email, find out the problem quickly and easily, assist repairing.

Wide Vehicle Coverage

Support Language

English, Russian, Spanish, Portuguese, French, Japanese, German,Italian

Submit your Feedback, let engineer help you find the problem

Lifetime free update via wifi

Packing List

Thinkscan plus S6 *1 USB cable *1 Card Reader *1 Packing Box *1 Instruction Maunal *1
