Specifications

Range

UT243

AC current (A)

1000A

±(2%+5)

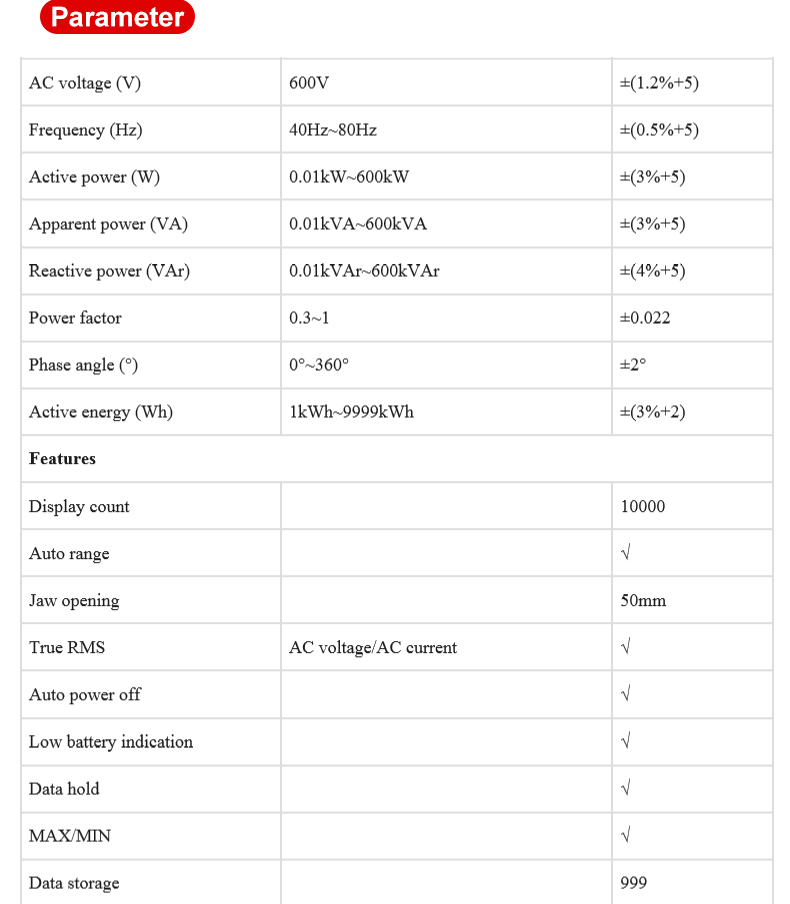

AC voltage (V)

600V

±(1.2%+5)

Frequency (Hz)

40Hz~80Hz

±(0.5%+5)

Active power (W)

0.01kW~600kW

±(3%+5)

Apparent power (VA)

0.01kVA~600kVA

±(3%+5)

Reactive power (VAr)

0.01kVAr~600kVAr

±(4%+5)

Power factor

0.3~1

±0.022

Phase angle (°)

0°~360°

±2°

Active energy (Wh)

1kWh~9999kWh

±(3%+2)

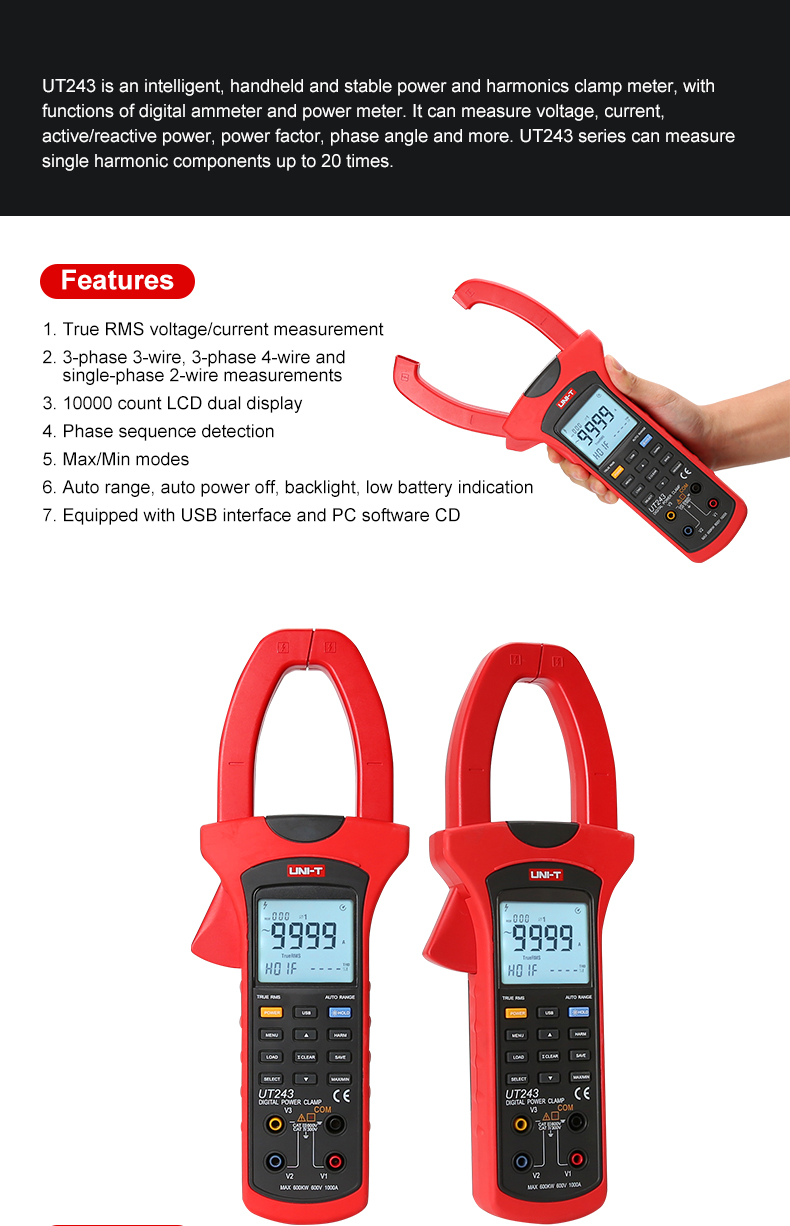

Features

Display count

10000

Auto range

√

Jaw opening

50mm

True RMS

AC voltage/AC current

√

Auto power off

√

Low battery indication

√

Data hold

√

MAX/MIN

√

Data storage

999

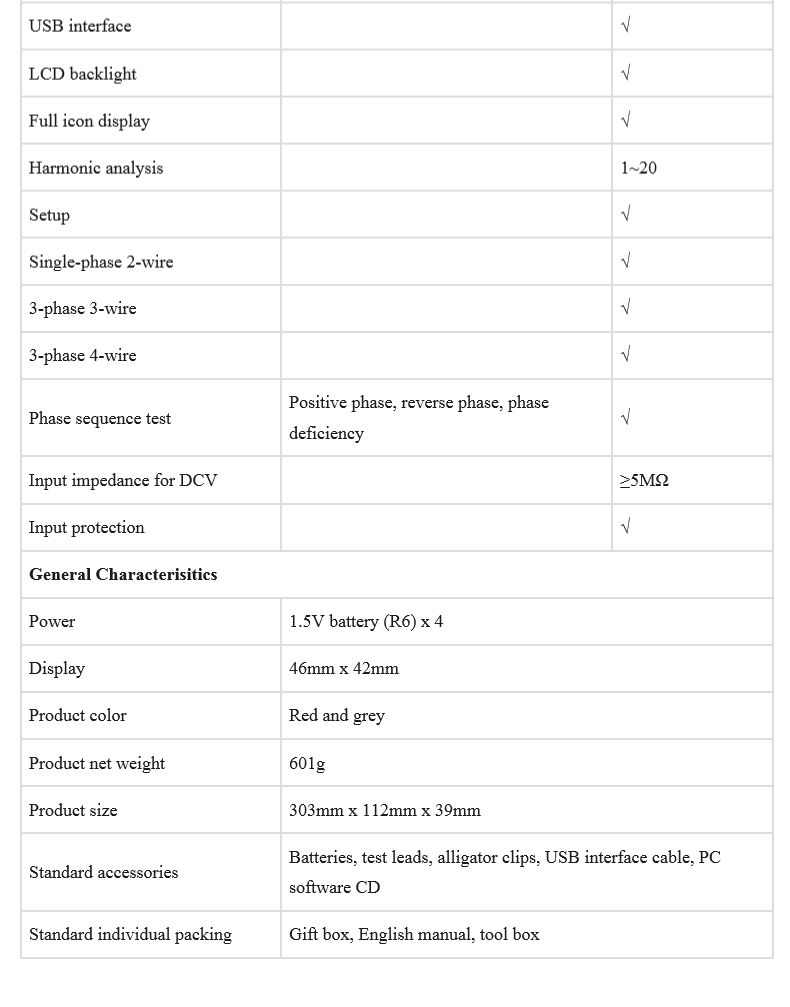

USB interface

√

LCD backlight

√

Full icon display

√

Harmonic analysis

1~20

Setup

√

Single-phase 2-wire

√

3-phase 3-wire

√

3-phase 4-wire

√

Phase sequence test

Positive phase, reverse phase, phase deficiency

√

Input impedance for DCV

≥5MΩ

Input protection

√

General Characterisitics

Power

1.5V battery (R6) x 4(No include)

Display

46mm x 42mm

Product color

Red and grey

Product net weight

601g

Product size

303mm x 112mm x 39mm

Standard accessories

Test leads, alligator clips, USB interface cable, PC software CD
