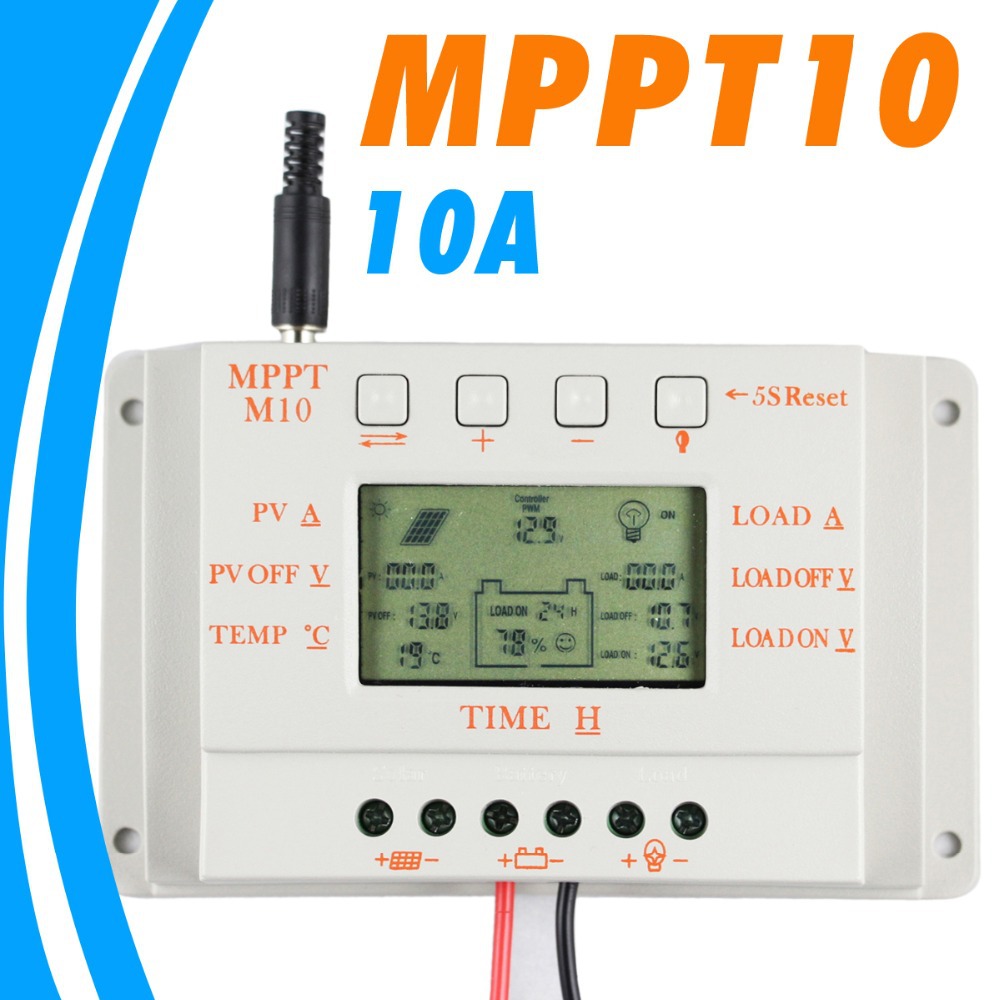

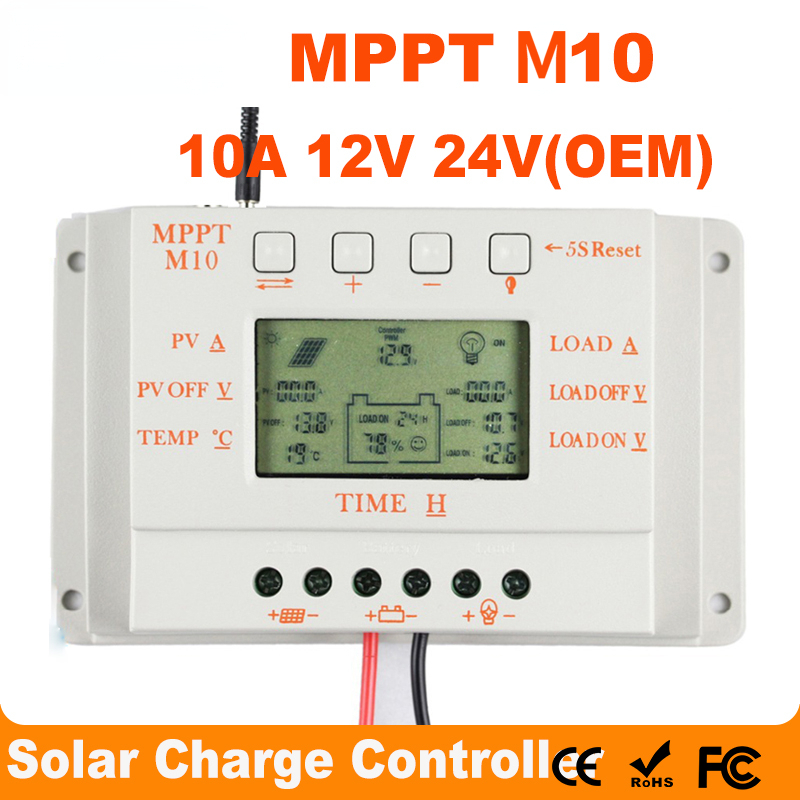

10A MPPT M10 Solar Charge Controller 12V 24VSolar Panel Battery Regulator LCD Display Dual Timer Function New Arrival
  • 10A MPPT M10 Solar Charge Controller 12V 24VSolar Panel Battery Regulator LCD Display Dual Timer Function New Arrival
  • 10A MPPT M10 Solar Charge Controller 12V 24VSolar Panel Battery Regulator LCD Display Dual Timer Function New Arrival
  • 10A MPPT M10 Solar Charge Controller 12V 24VSolar Panel Battery Regulator LCD Display Dual Timer Function New Arrival
  • 10A MPPT M10 Solar Charge Controller 12V 24VSolar Panel Battery Regulator LCD Display Dual Timer Function New Arrival
  • 10A MPPT M10 Solar Charge Controller 12V 24VSolar Panel Battery Regulator LCD Display Dual Timer Function New Arrival
10A MPPT M10 Solar Charge Controller 12V 24VSolar Panel Battery Regulator LCD Display Dual Timer Function New Arrival
10A MPPT M10 Solar Charge Controller 12V 24VSolar Panel Battery Regulator LCD Display Dual Timer Function New Arrival
10A MPPT M10 Solar Charge Controller 12V 24VSolar Panel Battery Regulator LCD Display Dual Timer Function New Arrival
10A MPPT M10 Solar Charge Controller 12V 24VSolar Panel Battery Regulator LCD Display Dual Timer Function New Arrival
10A MPPT M10 Solar Charge Controller 12V 24VSolar Panel Battery Regulator LCD Display Dual Timer Function New Arrival

10A MPPT M10 Solar Charge Controller 12V 24VSolar Panel Battery Regulator LCD Display Dual Timer Function New Arrival

This is a compatible MPPT charge controller PWM intelligent / efficient / energy saving, he not only has efficient MPPT controller charging function to automatically track the maximum power point, 10% -30% higher than the ordinary controller charging efficiency, also has standby energy saving, more than 30% energy than ordinary controller, the standby power consumption of only 10mA-15mA.
Item No. COBD211119 Price Down Notice
In Stock
Price:
US$22.99/ piece
Discount Price:
US$20.69/ piece 10%
Quantity:

Shipping:
Airmail Post
Estimated delivery time: 7-45 working days.See details»
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat WhatsApp Skype Ask a question
10A Solar Charger 12V 24V Solar Panel Battery Regulator Charge Controller LCD Display Dual Timer Function M10 250W Solar Panels M10

notice: Not True MPPT,there is no large transformer coil inside.

This is a compatible MPPT charge controller PWM intelligent / efficient / energy saving, he not only has efficient MPPT controller charging function to automatically track the maximum power point, 10% -30% higher than the ordinary controller charging efficiency, also has standby energy saving, more than 30% energy than ordinary controller, the standby power consumption of only 10mA-15mA.

Package including:
1. 1pcs M10 10a controller
2. 1pcs user manual
3. 1pcs temp sensor

Solar LCD series a kind of intelligent, multi-purpose solar charge and discharge controller

LCD screen display

Battery reverse discharge protection

Easy operation interface

Battery reverse polarity protection

MPPT+ PWM charging mode

Battery under voltage protection

Parameter user can reset

Overload, short-circuit protection

A key to open and close the load

Automatic temperature compensation function

A key to restore the factory settings

Features:

Solar LCD series a kind of intelligent,multipurpose solar charge and discharge controller

1, LCD screen display
2, Easy operation interface
3, PWM charging mode
4, Parameter user can reset,
5, A key to open and close the load,
6, A key to restore the factory settings,
7, Battery reverse discharge protection,
8, Battery reverse polarity protection
9, Battery under voltage protection,
10, Overload, short-circuit protection,
11, Automatic temperature compensation function,

Model

MPPT 20

Model

MPPT 20

Rated working current

20A

Installation wire number

<7# AWG (10mm2)

Rated working voltage

12V/24V

Working temperature

-10c~60c

Solar panels voltage

<48V

Storage temperature

-30c~70c

Float charging voltage(settable)

13.8V/27.6V

Humidity requirements

<90%,NO GEL

Low voltage protection(settable)

10.7V/21.4V

Dimension

90 mmx188 mmx48 mm

Low voltage recovery(settable)

12.5V/25.0V

Mounting hole spacing

60 mm×178 mm --5

No-load loss

<15mA

weight

<435g

Loop pressure drop

<160mV

Tmperature compensation

-4mV/Cell/C
