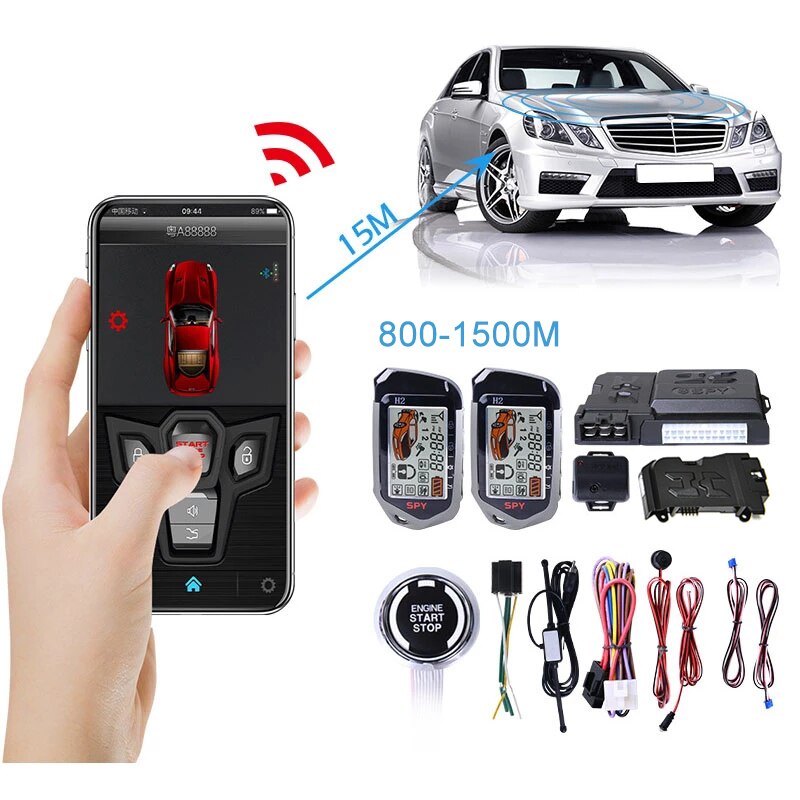

Smart Start System Bluetooth PKE Car Alarm – Mobile Phone Induction Remote Start, Sound and Light Alarm, Trunk Release, Auto Window Control

Key Features

• Intelligent Remote Engine Start via Mobile App – Start your car remotely using your smartphone.
• Bluetooth PKE Keyless Entry System – Unlock and lock your vehicle without pressing any buttons.
• Shake-to-Unlock Function – Lock or unlock your car by simply shaking your phone.
• One-Button Engine Start/Stop – Convenient push-button ignition with integrated anti-theft protection.
• Pre-Cool or Pre-Heat Vehicle – Adjust cabin temperature before entering the car.

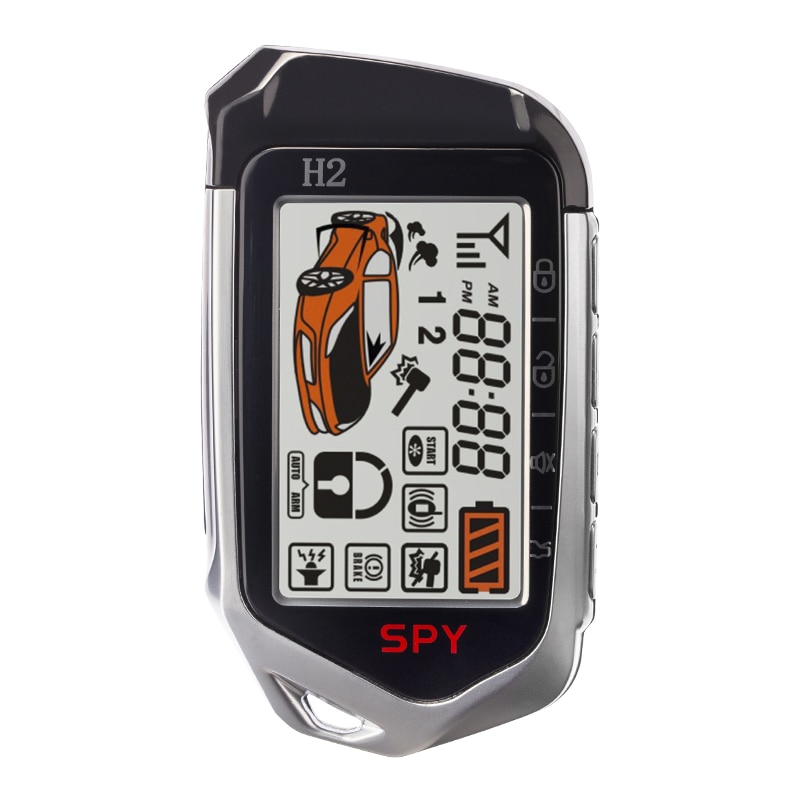

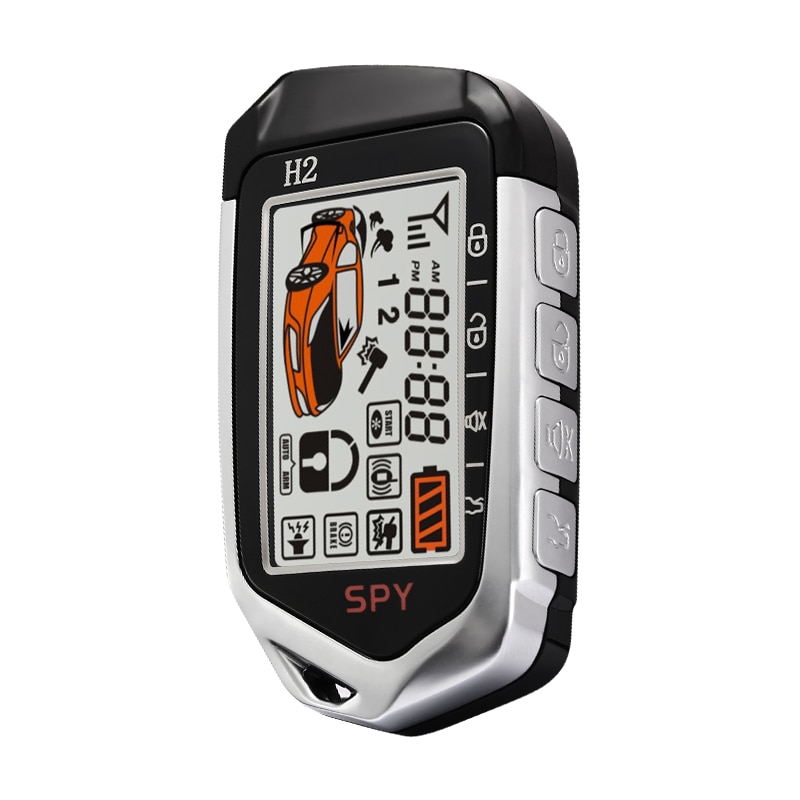

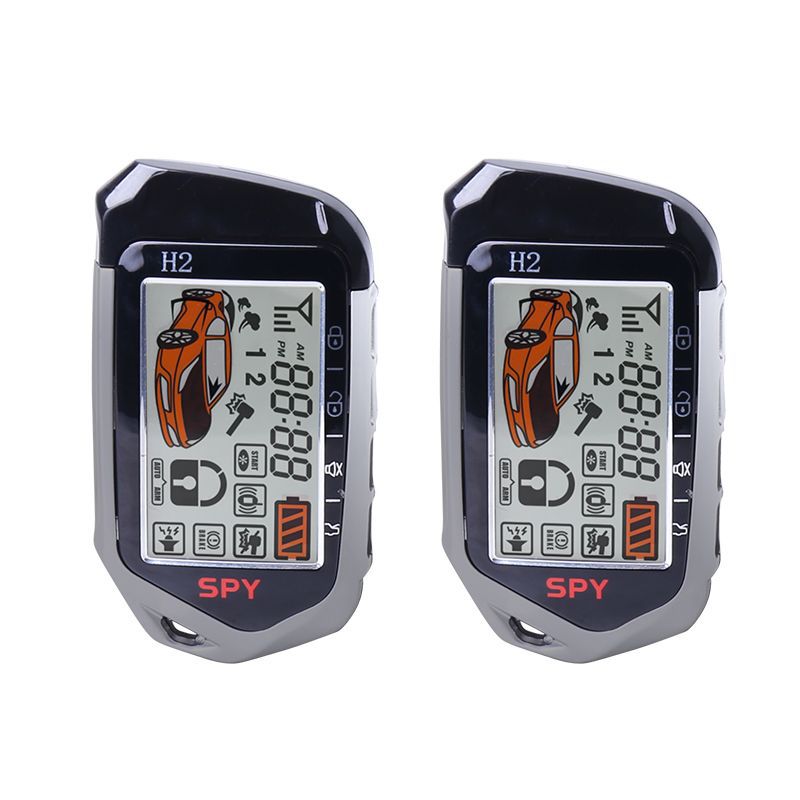

• Two-Way High-Definition LCD Display Anti-Theft Alarm – Receive real-time alerts and system feedback on your remote.
• Vibration Sensor Warning – Enhanced security with impact detection.
• FSK Frequency Shift Keying Technology – Ensures stable signal transmission with up to 800M remote control range and 1500M alarm return monitoring range, minimizing interference.
• Timer-Based Engine Start – Schedule automatic engine starts at set times.
• Integrated Smart Headlight Control Module – Automatically manages headlights based on ambient conditions.

Comprehensive Function List

1. Sound and Light Alert Setting
2. Mute Alert Mode
3. Vibration Alarm
4. Microwave Alarm (Optional)
5. Illegal Door Opening Alarm
6. Unauthorized Ignition (Acc.ON) Detection
7. Emergency Alarm Activation
8. Alarm Pause Function
9. Disarm Mode
10. Remote Trunk Release (for luggage access)
11. Anti-Robbery Engine Kill
12. Open Door Light Flash Toggle (selectable flash or no flash)
13. Emergency Disarm
14. Auto-Alarm and Reminder Mode (Optional)
15. Reminder to Close Car Doors
16. Automatic Re-Arm Security
17. Centralized Door Lock Automation
18. Remote Engine Start
19. Programmable Timer Engine Start
20. In-Car Temperature Display
21. Remote Car Finder (sound and light signaling)
22. Power-Off Memory Retention
23. Automatic Window Roll-Up
24. LED Status Indicator
25. Triggered Alarm Event Memory
26. Remote Control Battery Level Indicator
27. TIME, ALARM, AUTO-ARM, START Settings
28. Backlit Display
29. Maintenance Mode
30. Side Door Detection & Dome Light Delay
31. Remote Control Code Learning
32. Original Car Horn / Electronic Siren Selection
33. Safety Upgrade: Direction Light Detection Options
34. Safety Upgrade: Lock Detection Signal Polarity Selection
35. Safety Upgrade: Unlock Detection Signal Polarity Selection
36. Trunk Release Output Polarity Selection
37. Siren Output Polarity Selection
38. Electric Lock / Pneumatic Lock Mode Selection

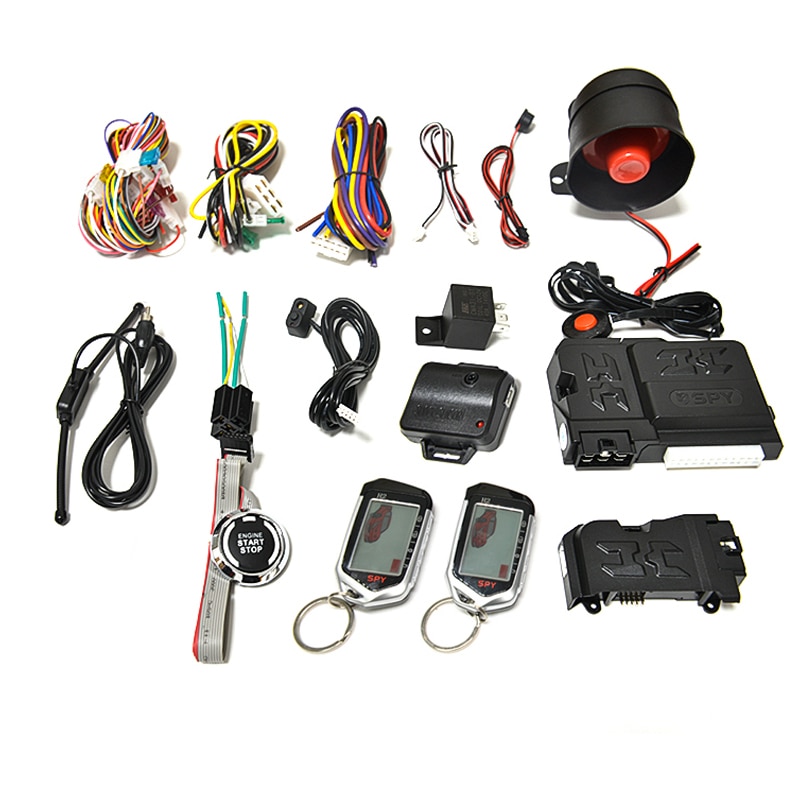

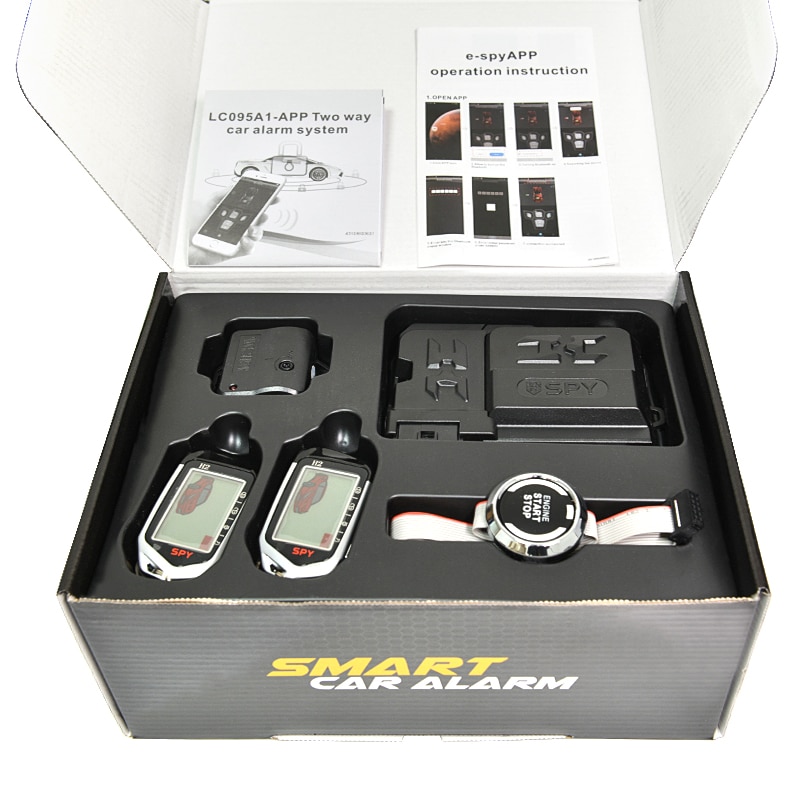

This package includes all functional modules shown below:

Added Functional Modules

Smart Headlight Module

+ +

Features:

• Automatic Light Activation: When the sensor is enabled and the key is in ON position, headlights turn on automatically in dark environments such as tunnels, garages, or nighttime driving.
• Home-Coming Delay Lighting: After turning off the engine (key to OFF), lights remain on for 20 seconds to illuminate your path home.
• Graded Lighting Control: Small lights activate during dusk; full headlights turn on in darker conditions to optimize power usage.
• Unlock Welcome Illumination: At night, pressing the unlock button activates the lights for 20 seconds, providing a welcoming glow when approaching the vehicle.

Smart Button Start/Stop Engine Module

+

Operation:

1. Within 30 seconds of unlocking via remote, press the brake pedal and press the start button once to ignite the engine. Upon success, the purple indicator light illuminates.
2. If initial start fails, second and third attempts are allowed. After three failed attempts, the system remains in third-start mode for subsequent tries.
3. To shut down, apply the handbrake or foot brake and press the start/stop button. The engine turns off and the purple indicator light extinguishes.

Safety Notes:

• Engine start must occur within 30 seconds of unlocking.
• No start command accepted after 30 seconds post-unlock.
• During operation, the system prevents accidental restart unless brake is pressed.
• Opening the door after disarm resets the start window from the moment the door opens.
• Emergency Shutdown: Hold the start/stop button for 5 seconds to cut engine power safely, protecting the handbrake switch.

Smartphone Remote Start (APP Module)

Installation Support

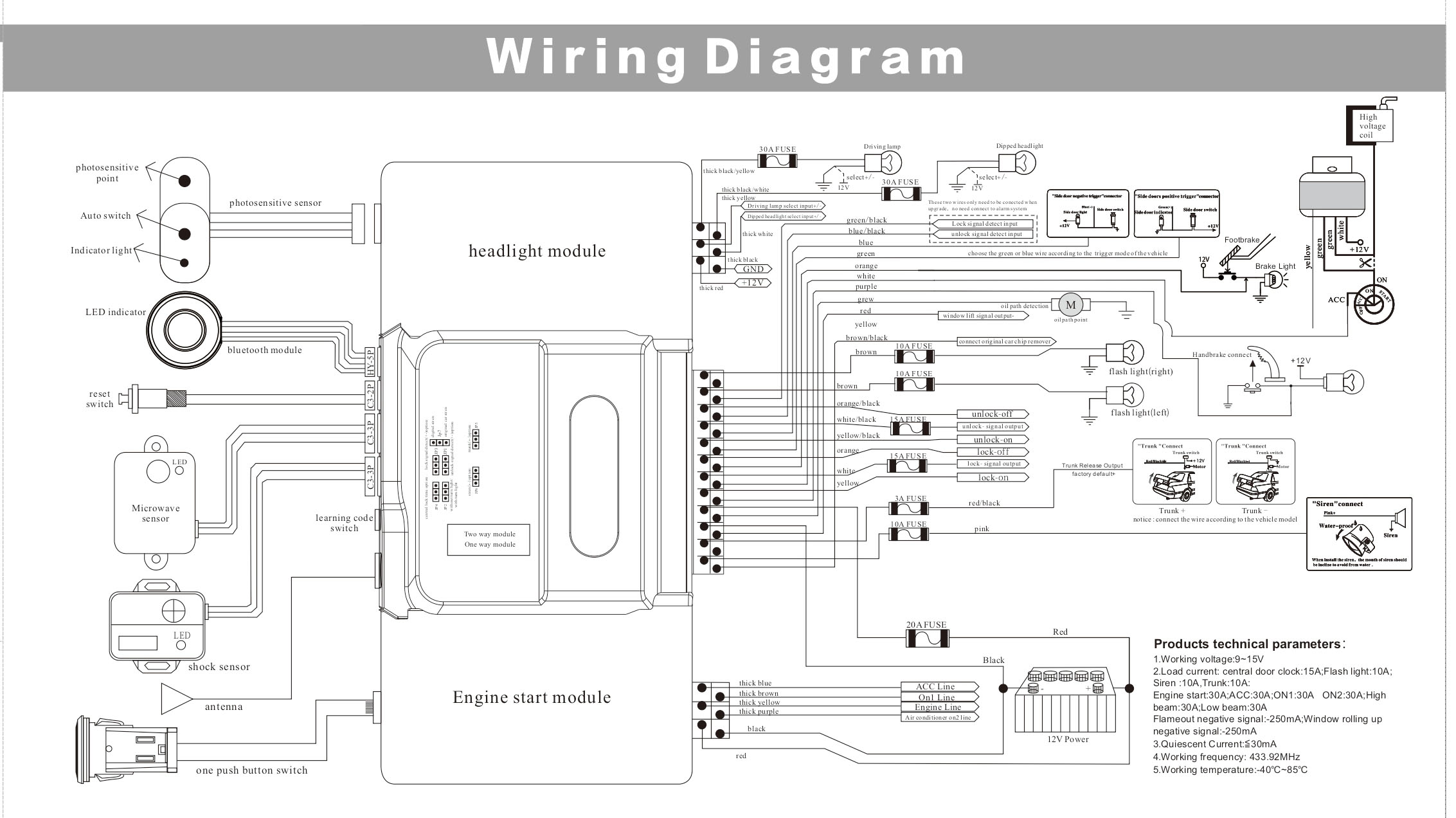

Product Installation Diagram

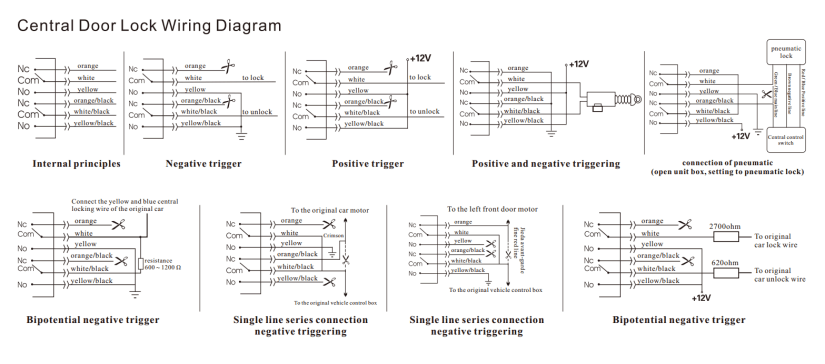

Central Lock Wiring Reference Diagram

Note: This is a general overview. For complete functionality details and step-by-step installation instructions, refer to the included English user manual.
