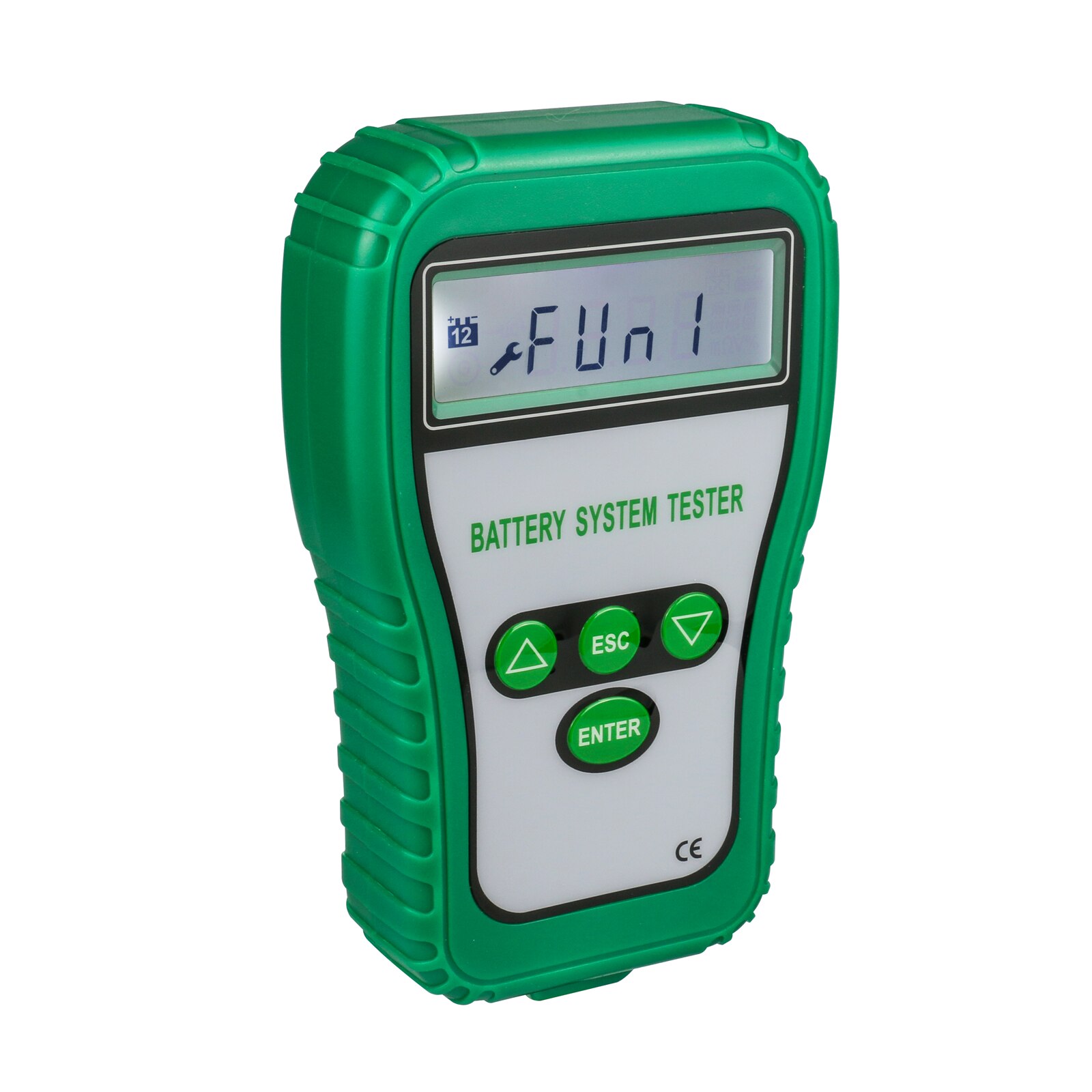

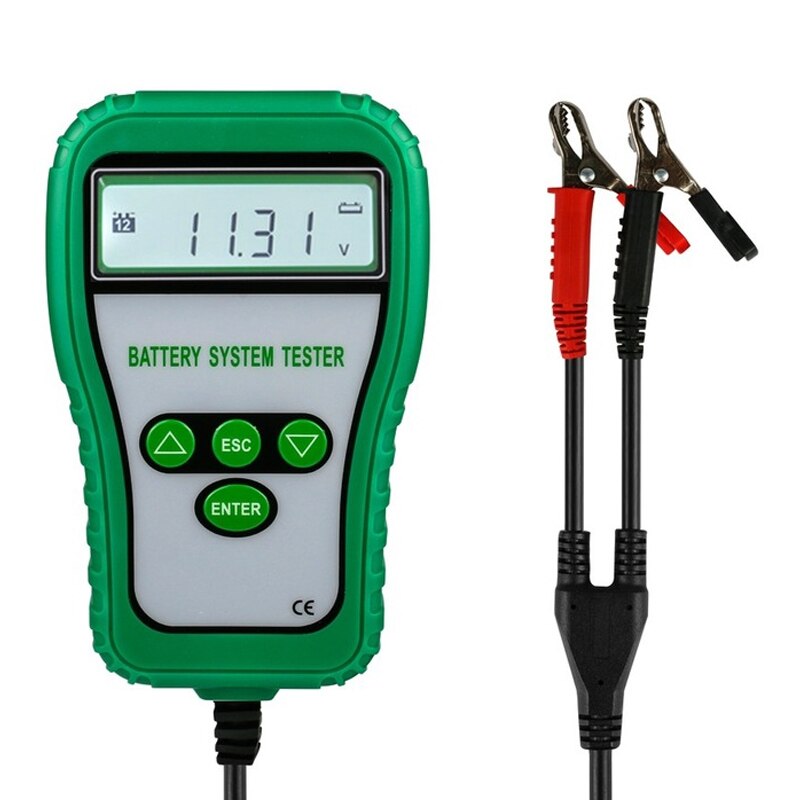

DY216 12V Car Battery Tester 100-1700 CCA Load Digital Tester Battery System Detect Auto Battery Meter Analyzer Car Tool
This battery storage tester is used for activated style lead- acid storage battery, along with checking the following conditions of the battery, starting up, charging, and electrical loading
Item No. COBD211510 Price Down Notice
In Stock
- Price:
- US$38.90/ piece
- Discount Price:
- US$20.34/ piece 48%
- Quantity:
-
- Shipping:
- Airmail Post
Estimated delivery time: 7-45 working days.See details» - Returns:
- Return for refund within 7 days,buyer pays return shipping.Read details »
- Support:
-
Online Chat
WhatsApp
Skype
Ask a question
US$27.00 / piece
US$24.99 / piece
US$19.99 / piece
US$459.00 / piece
US$99.00 / piece
US$20.95 / piece
US$49.99 / piece
US$19.99 / piece
US$29.98 / piece
US$13.90 / piece
US$9.80 / piece
US$8.90 / piece
US$17.44 / piece
US$25.59 / piece
US$27.45 / piece
US$17.80 / piece
US$17.80 / piece
US$29.00 / piece
US$59.69 / piece
US$39.99 / piece
- Product Details
- Product's Reviews
- Write a Review
- Related Products

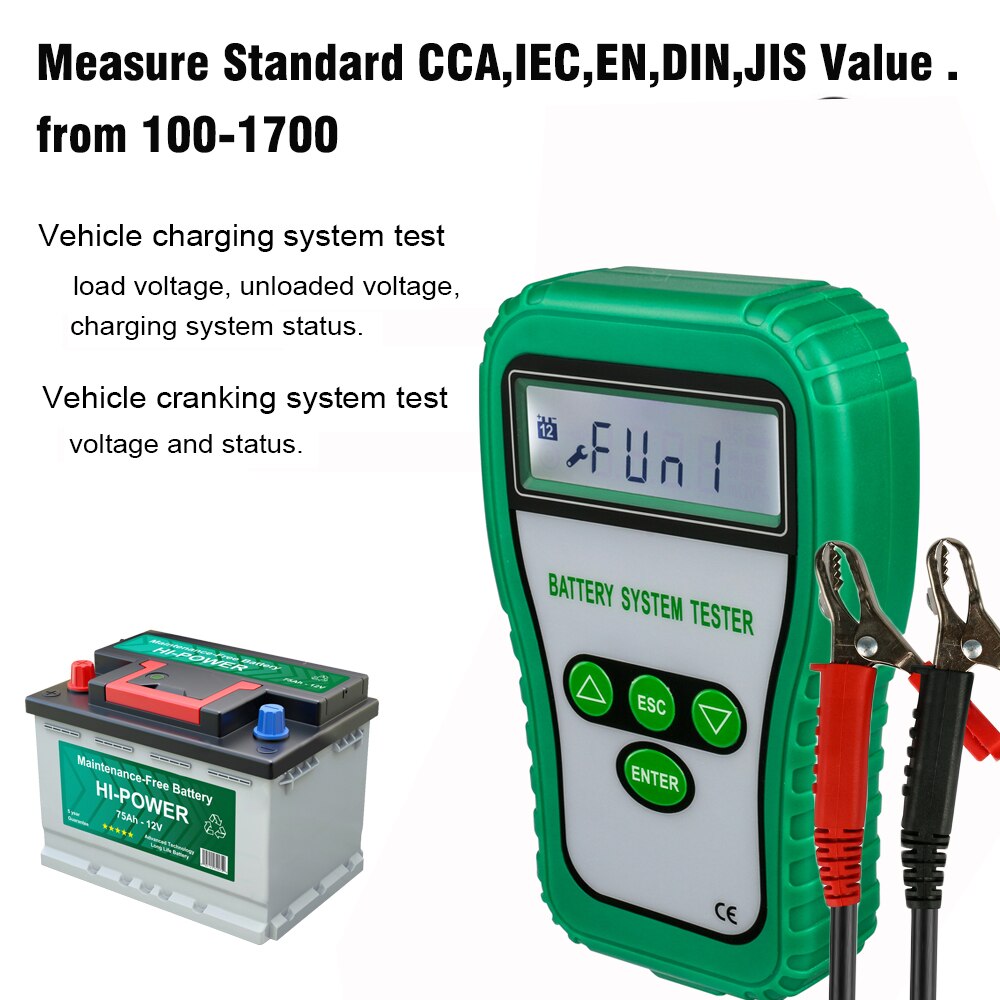

This battery storage tester is used for activated style lead- acid storage battery, along with checking the following conditions of the battery, starting up, charging, and electrical loading. With great design, easy operation, precise reading, complete functions, this tester supply the readings by a large LCD and hints by sound and light when testing. Precise circuit and strong digital processing unit make it complete collection of a series of complicated data and figure out every test data, which availably by 4-wire Kelvin test connection. Besides it strengthens input protection inside , in order to prevent such situations as polar reversal connection , over-high voltage input, poor contact of the test clamps and so on. That makes sure safer and more convenient when testing. This tester is the best tool for battery sales, vehicle repair and condition check of all kinds of lead-acid batteries that used in equipment system associated with lead-acid battery.
LCD display instructions
:Storage battery test
:Engine system activation load test
:Power system test
:Set up
:Test report
:Power tips
1.Storage battery test
Preparation
If the engine is working, please turn off first and switch the key to off location. After driving for a while, the voltage value will be higher than that in the normal situation after the checked battery being fully charged . Please turn on the headlights for 2 to 3 minutes, then check the battery when it's voltage value drop to the normal value.
Operation procedure
(1) Make the red clamp connect to the positive polar , and the black to the negative. Make sure all connections are well contacted in order to void affected result.

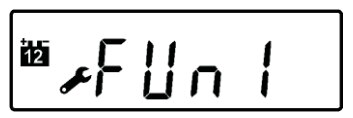

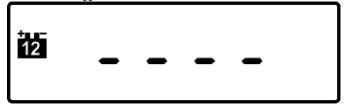

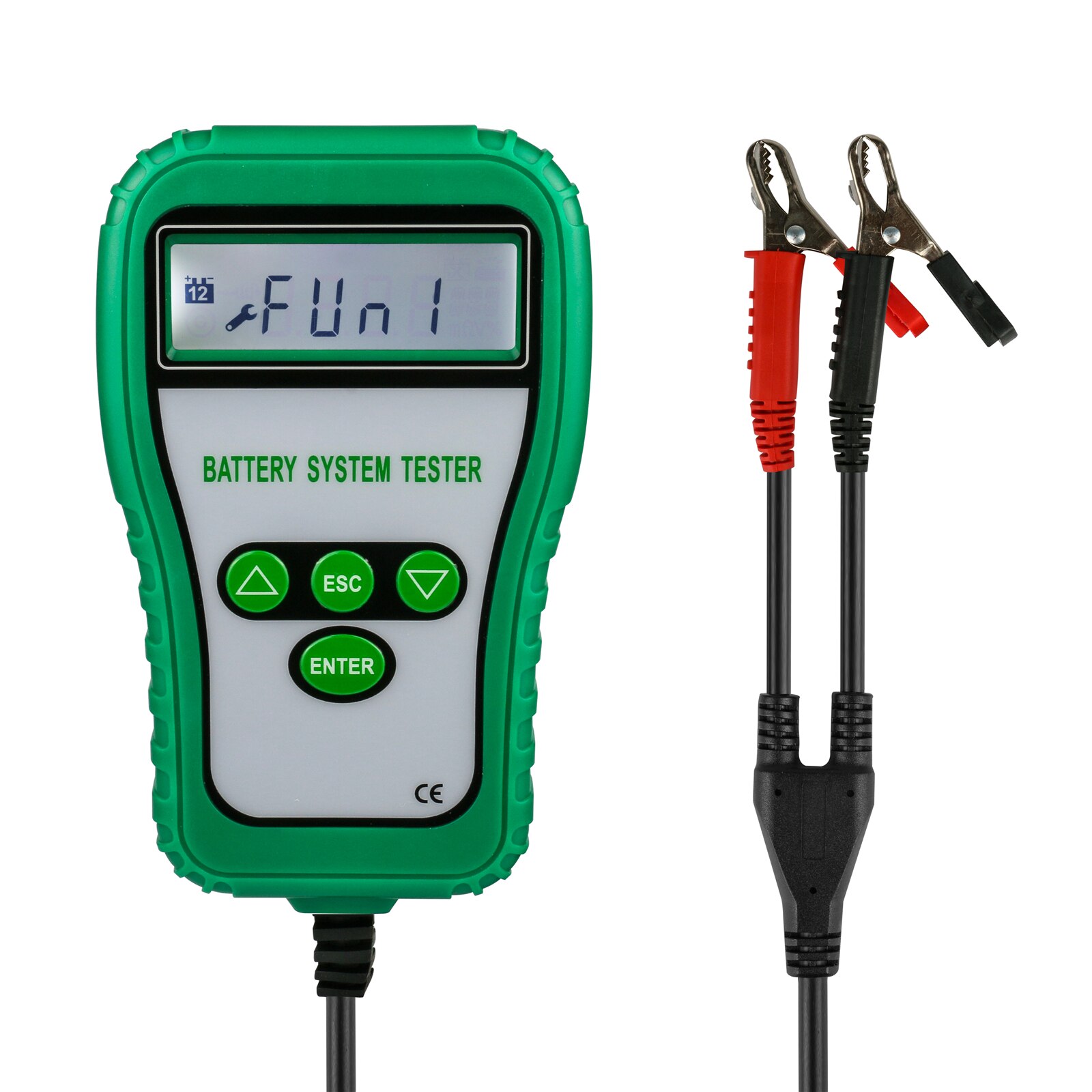

(2) Press <▲><▼> button to select test function, and then press further. See the picture:
If the engine is working, please turn off first and switch the key to off location. After driving for a while, the voltage value will be higher than that in the normal situation after the checked battery being fully charged . Please turn on the headlights for 2 to 3 minutes, then check the battery when it's voltage value drop to the normal value.
Operation procedure
(1) Make the red clamp connect to the positive polar , and the black to the negative. Make sure all connections are well contacted in order to void affected result.
(2) Press <▲><▼> button to select test function, and then press
v>

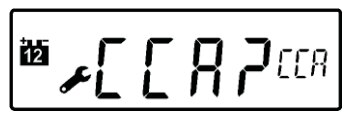

(3) Press <▲><▼> button to select test standard according to the standard of storage battery. If it is JIS standard, need to check CCA with the comparison table. Then select CCA(SAE) as the test standard to press further. See the picture:
v>

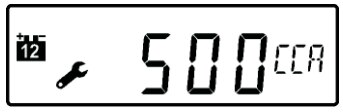

(4) According to the value indicated on the battery, press <▲> <▼> button to adjust the reference value of the battery. Long press<▲><▼> button to adjust the number continuously. See thepicture:
(5)After adjusting the reference test value of the battery, press to star testing.
(6)It will display the result after finishing test:
(7)Press <▲><▼> to turn the page to review the other results of the test. Press to return step (3) to select test standard. Press to return step (2) to select test function of the battery.
Instruction of test result:
Voltage of the battery: 12.85V
Fully charged 100% 12.78V
75% 12.54V
50% 12.30V
25% 12.12V
Totally discharged 11.94V
CCA value 588CCA
Check the condition of battery
Internal insulation 4.75mΩ
The higher of the CCA value , the lower of the internal insulation normally.
Remark: Different material of the battery produced by various manufacturers can cause different internal insulation. So there is no fixed standard. But there is little difference among the internal insulation of the battery with the same model from the same manufacturer.

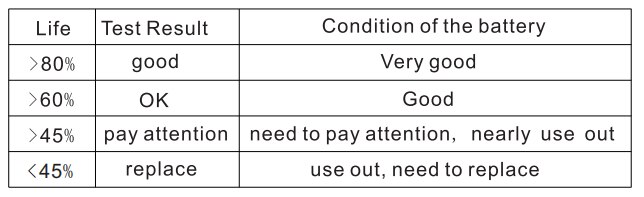

Life: Display the condition of the battery. Suggest replacing the battery when it shows below 45%.
Suggest replacing
The result indicates the battery is bad and remains 32% of life. So suggest replacing the battery.
Life check OK, and voltage check low
The result indicates the battery is good and full of 100% of life. But only 12.11V left. SO suggest charging.
Life check OK, and voltage check over low
The result indicates the battery remain only 11.88V left and over low voltage, which can affect the result. At this time it is better to charge prior to checking again.
2 Engine system activation load test
Preparation
If the engine is working, please turn off first and switch the key to off location.
Procedure of operation
(1)Connect the red clamp to the positive polar of the battery, and the black one to the negative polar. Make sure they are well connected in order to avoid affected result.

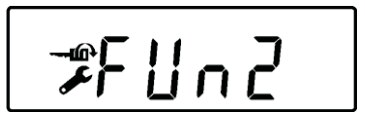

(2)Press <▲><▼> to select activation load test as the picture below:
(3)After selecting the test item, press to display the activation load test screen as the picture below:

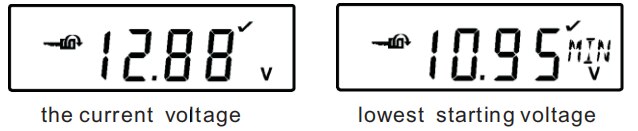

Press <▲><▼> to select "The current instant voltage" or "Minimum starting voltage". As can be seen in the picture current test voltage is 12.88V, standard voltage is 9.6V, and the lowest starting voltage is 10.95V.
(4)Star the engine to make the tester automatically record the lowest voltage in this process. Normally the voltage of battery will be higher than 9.6V in this process. As the starting process, recorded the lowest voltage is lower than 9.6V, the instrument will beep and flash screen.
(5)Press to return step (2).
Instruction of engine system test

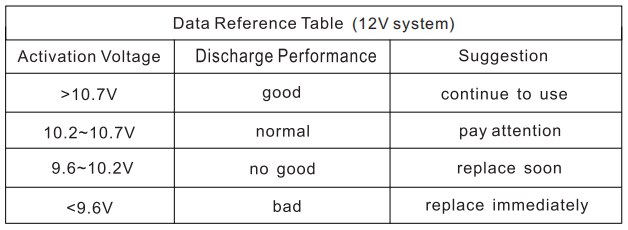

The lowest voltage higher than 9.6V means good.

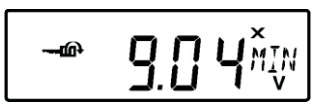

The lowest voltage lower than 9.6V means no good.
Please check the relative connections, wire and engine. Also the terminals of the battery should be checked if rusted.
3 Charging system test
Preparation
Please star the engine firstly.
Procedure of operation
(1)When the engine is working, connect the red clamp to the positive polar of the battery, and the black one to the negative polar. Make sure they are well connected in order to avoid affected result.
(2)Speed the engine to 3000 rpm.

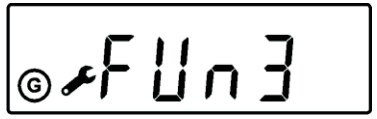

(3)Press <▲><▼> to select charging system test as the picture below:
(4)After selecting the test item, press to display the charging system test screen as the picture below:
The picture of generator output highest voltage indicates the current test voltage is 13.88V, the highest voltage is 14.08V, and
the lowest voltage is 13.75V.
(5)Press <▲><▼> to select highest output screen and lowest output screen.
(6)As in the process, when the generator output the wrong highest voltage or lowest voltage, the instrument will appear thev> following picture and accompanied by a beep prompt and flash screen.
v>
(7)Press to return step (3).

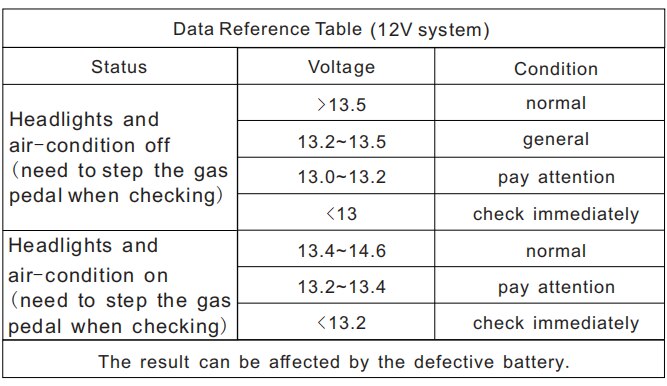

There are some problems in the system
If the voltage is high than 15.00V, please check the voltage regulator.
If the voltage is lower than 13.30V, please check the connections, wires and the engine.
More
