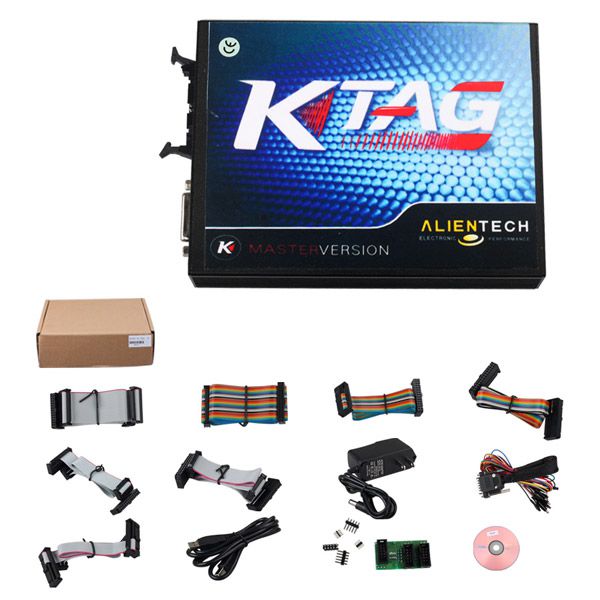

New V2.10 KTAG K-TAG ECU Programming Tool Master Version Hardware V5.001
  • New V2.10 KTAG K-TAG ECU Programming Tool Master Version Hardware V5.001
  • New V2.10 KTAG K-TAG ECU Programming Tool Master Version Hardware V5.001
  • New V2.10 KTAG K-TAG ECU Programming Tool Master Version Hardware V5.001
  • New V2.10 KTAG K-TAG ECU Programming Tool Master Version Hardware V5.001
  • New V2.10 KTAG K-TAG ECU Programming Tool Master Version Hardware V5.001
  • New V2.10 KTAG K-TAG ECU Programming Tool Master Version Hardware V5.001
  • New V2.10 KTAG K-TAG ECU Programming Tool Master Version Hardware V5.001
  • New V2.10 KTAG K-TAG ECU Programming Tool Master Version Hardware V5.001
New V2.10 KTAG K-TAG ECU Programming Tool Master Version Hardware V5.001
New V2.10 KTAG K-TAG ECU Programming Tool Master Version Hardware V5.001
New V2.10 KTAG K-TAG ECU Programming Tool Master Version Hardware V5.001
New V2.10 KTAG K-TAG ECU Programming Tool Master Version Hardware V5.001
New V2.10 KTAG K-TAG ECU Programming Tool Master Version Hardware V5.001
New V2.10 KTAG K-TAG ECU Programming Tool Master Version Hardware V5.001
New V2.10 KTAG K-TAG ECU Programming Tool Master Version Hardware V5.001
New V2.10 KTAG K-TAG ECU Programming Tool Master Version Hardware V5.001

New V2.10 KTAG K-TAG ECU Programming Tool Master Version Hardware V5.001

V2.10 KTAG K-TAG ECU Programming Tool 1. SupportsK-TAG, BDM, Stiefel, K-Line, CANbus, usw. 2. Upgradable.3. Reads and writes most controllers on the market.4. Multi-languages: English/ French/ Italian/ Portuguese/ Spanish.
Item No. COBD21232 Price Down Notice
5 stars, 9 reviews.
Out of Stock
Price:
US$79.99/ piece
Discount Price:
US$69.00/ piece 14%
Quantity:

Shipping:
Standard Flat Rate Shipping Service
Estimated delivery time: 7-45 working days.See details»
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat Ask a question


New V2.10 KTAG K-TAG ECU Programming Tool Master Version Hardware V5.001

Top 5 Reasons to Get K-TAG:


1. Supports K-TAG, bdm, BOOT, K-line, CANBUS, etc.
2. Upgradable software: Via Email
3. Universal ECU programmer. Can be used to read and write most ECUs in the market
4. Multi-languages: English/ French/ Italian/ Portuguese/ Spanish
5. Cheap

KTAG ECU Programming tool Using Tips:

1. DO NOT upgrade the software online,otherwise it will be damaged.
2. DO NOT connect internet and use anti-virus software when you use this software
3. Only use the software we provide.

KTAG ECU Programming Tool Description:

1. The new K-TAG is 100% J-Tag compatible, but in a completely different way. Usually J-Tag programmers are available only for big productions, never present in chiptuning devices. Using only the essential components, Alientech have merged J-Tag, Motorola BDM/Nexus and Bootloader Mitsubishi/Infineon Tricore/ST communication lines into a single product.

2. K-TAG works in perfect harmony. Learning how to use K-TAG takes almost no time, because all the communication protocols operate along similar principles. Once you have learned how to use a protocol, you will naturally be familiar with all the others. Alientech knows what it means to work in motion. For this reason the research methods of the protocols and choice of vehicles are detailed and ordered.

3. Unlike many ECU programming tools, with K-TAG you have at your disposal only the applications you really need. Once you have the hardware, you can choose which group of protocols to enable and then start working. In this page you can find a complete list of the ECU currently supported by K-TAG.

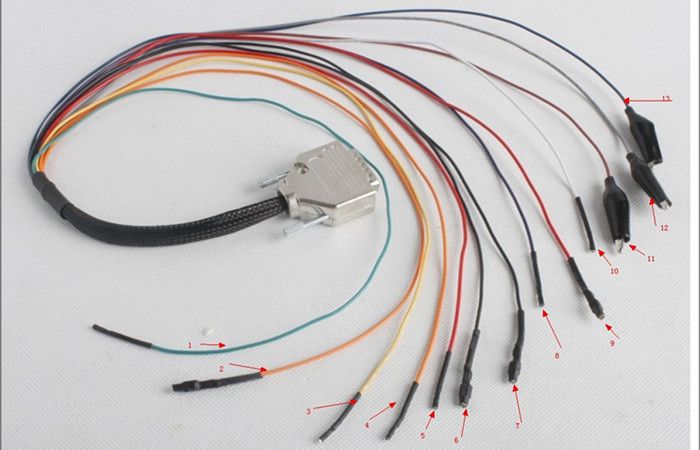

KTAG ECU Programming Tool Cable:

1. GREEN-CAN L
2. ORANGE-VKEY
3. YELLOW-K LINE
4. ORANGE-VKEY
5. RED-VECU
6. BLACK-GND
7. BLACK-GND
8. PURPLE-VPP
9. RED-VECU
10. WHITE-CAN H
11. BROWN-RESET
12. GRAY-BOOT
13. BLUE-CNF1

ktag-ecu-programmer-cables

Available protocols for K-TAG: (Supported List)

1. BDM MOTOROLA MPC5xx

2. TAG NEXUS MPC5xx

3. J-TAG RENESAS SH705x

4. BOOTLOADER MITSUBISHI MH72xx/MH8xx

5. BOOTLOADER INFINEON TRICORE

6. BOOTLOADER ST10

The only function that K-TAG does not support is OBD Communication. But for that you can count on KESS V2.

Here follows details of the accessories available in car list catalog per each group of protocols of communication.

BDM Motorola MPC5XX
14AS00T01S: Adapter to be soldered to the ECU
14AS00T02S: Cable with connector to be soldered to the ECU
14AS00T03S: Adapter to be soldered to the ECU
14AS00T04S: Adapter to be soldered to the ECU
14AM00T00M: Board for connection through positioning frame
14AM00T01M: Board for connection through positioning frame
14AM00T02M: Board for connection through positioning frame
14AM00TBAS + 14AM00TB01: Board for connection through positioning frame, with pull-out tip 14AM00TB01
14AM00TBAS + 14AM00TB02: Board for connection through positioning frame, with pull-out tip 14AM00TB02
14AM00TBAS + 14AM00TB03: Board for connection through positioning frame, with pull-out tip 14AM00TB03

J-TAG Nexus MPC5xx
14AS00T05S: Adapter to be soldered to the ECU
14AM00T05M: Board for connection through positioning frame
14AM00T06M: Board for connection through positioning frame

J-TAG RENESAS SH705xx
14AM00T07M: Write Board for connection through positioning frame
14AM00T08M: Write Board for connection through positioning frame
14AM00T09M: Write Board for connection through positioning frame
14AM00T10M: Read Board for connection through positioning frame
14AM00T11M: Read Board for connection through positioning frame

BOOTLOADER INFINEON TRICORE
14P600KT04: Board for connection through positioning frame

BOOTLOADER ST10
14AM00T03M: Board for connection through positioning frame

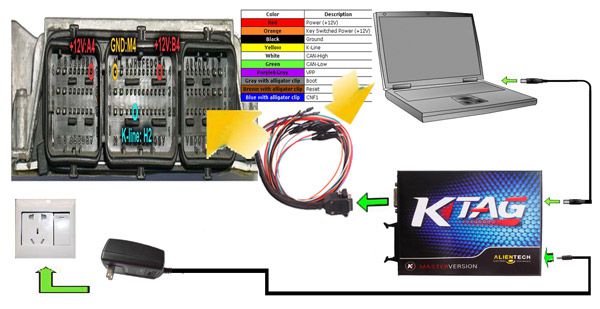

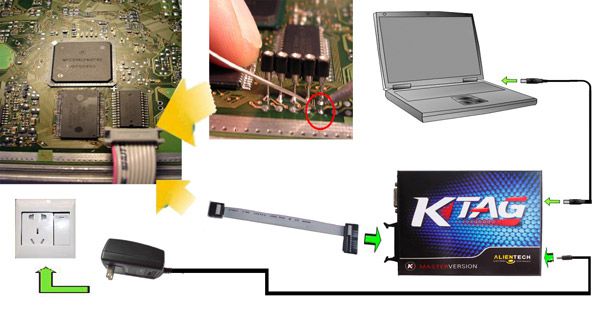

KTAG Connection Display:

ktag-ksuite-ecu-programmer-connection-display
ktag-ksuite-ecu-programmer-connection-display-2

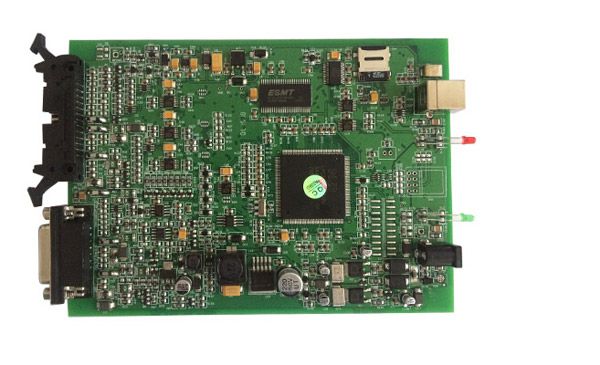

KTAG PCB Board Display:

ktag-ecu-tuning-tool-pcb
