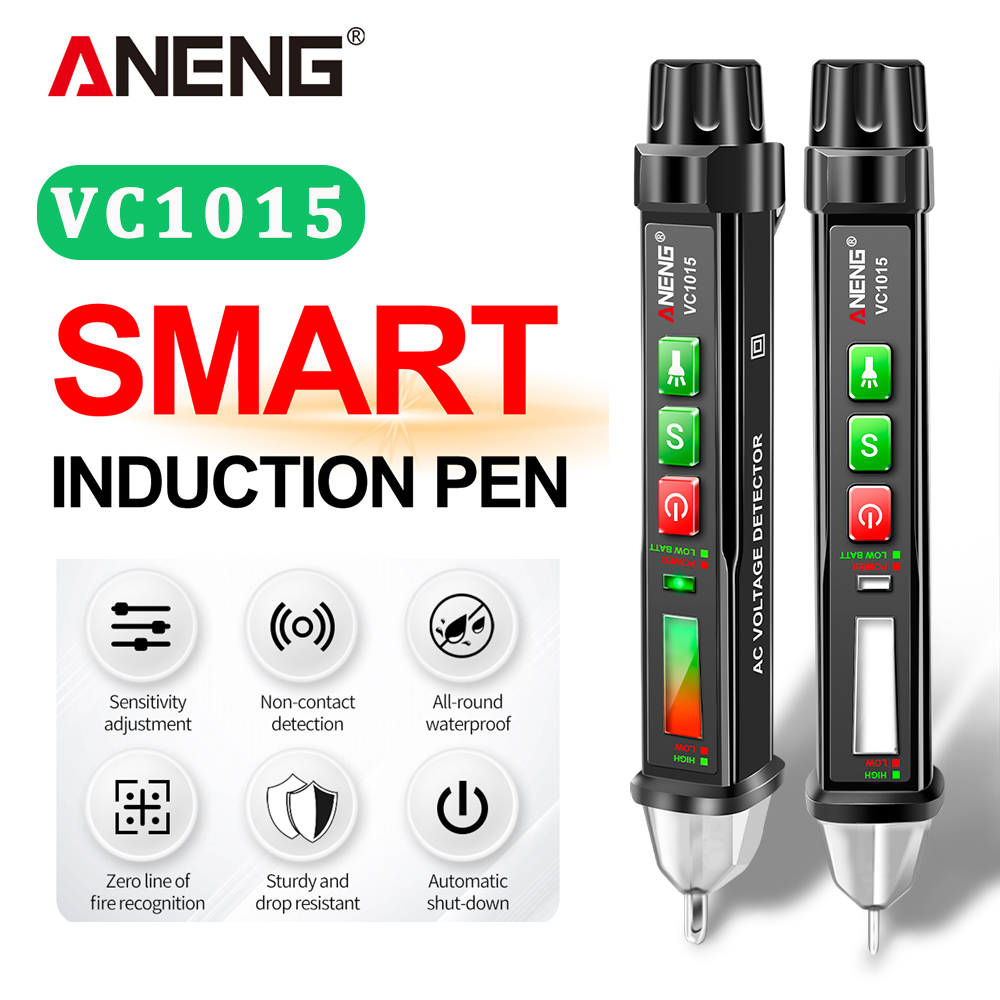

ANENG VC1015 Non-contact AC Voltage Detector Tester Meter 12V-1000v Pen Style Electric Indicator LED Voltage Meter Vape Pen
- Shipping:
- Airmail Post
Estimated delivery time: 7-45 working days.See details» - Returns:
- Return for refund within 7 days,buyer pays return shipping.Read details »
- Support:
- Online Chat WhatsApp Skype Ask a question
- Product Details
- Product's Reviews
- Write a Review
- Related Products
Specifications:
1. Operating Temperature:0~40°
2. Display Type: Digital Only
3. Dimensions: 156 x 20 x 20mm
4. Accuracy Class: Class III
5. Model: AC1015
6. Power Supply: 2 x 1.5V AAA Batteries(Not Included)
7. Flash light: Yes
8. Alarm mode: Sound and Light
9. Probe Shape: Prolate
10. NCV Sensitivity:High,Medium,Low
11. Weight:Approx. 50g
12.Non-contact AC Voltage Tester
13. Measuring Range:12~1000V

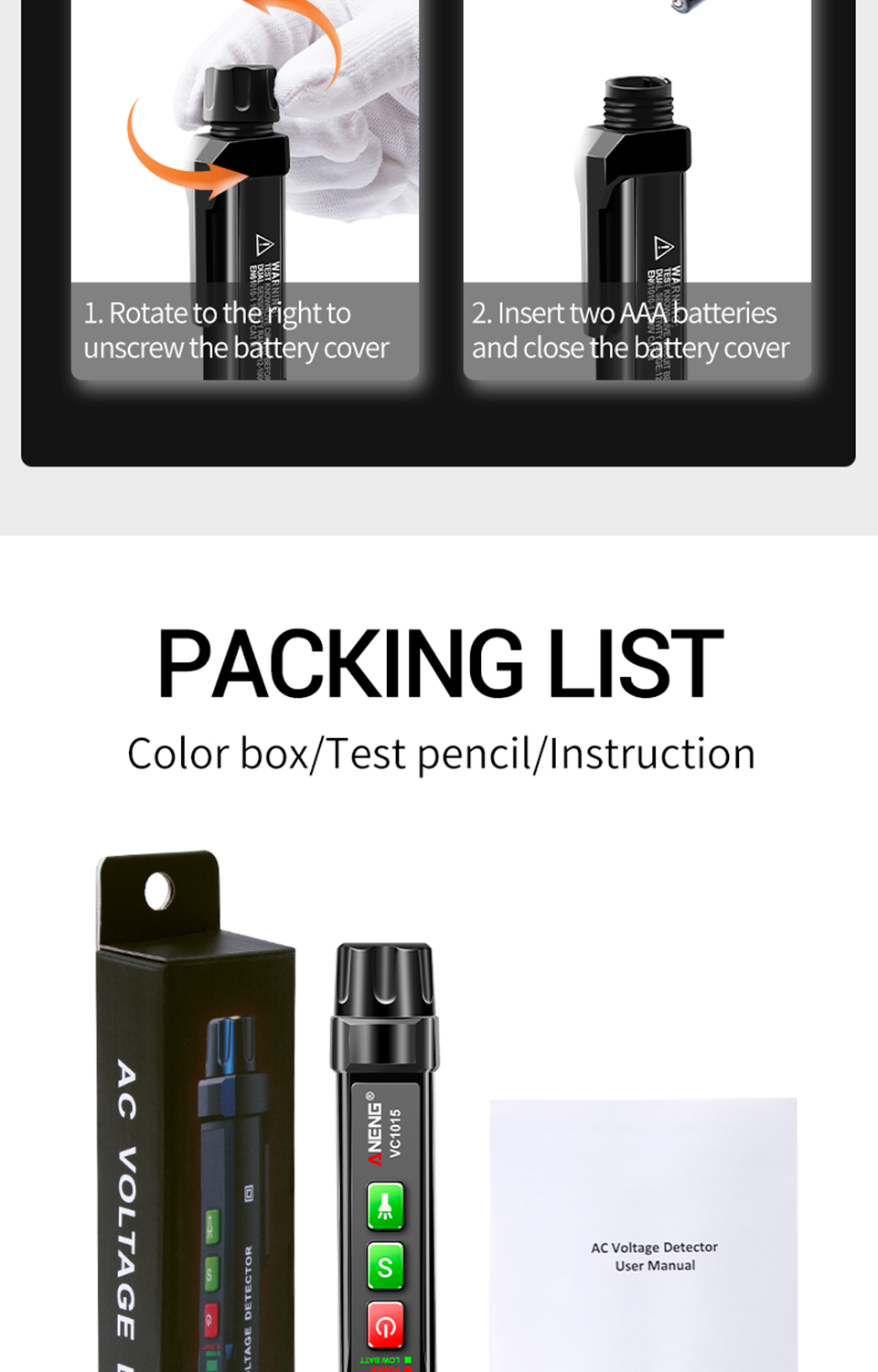

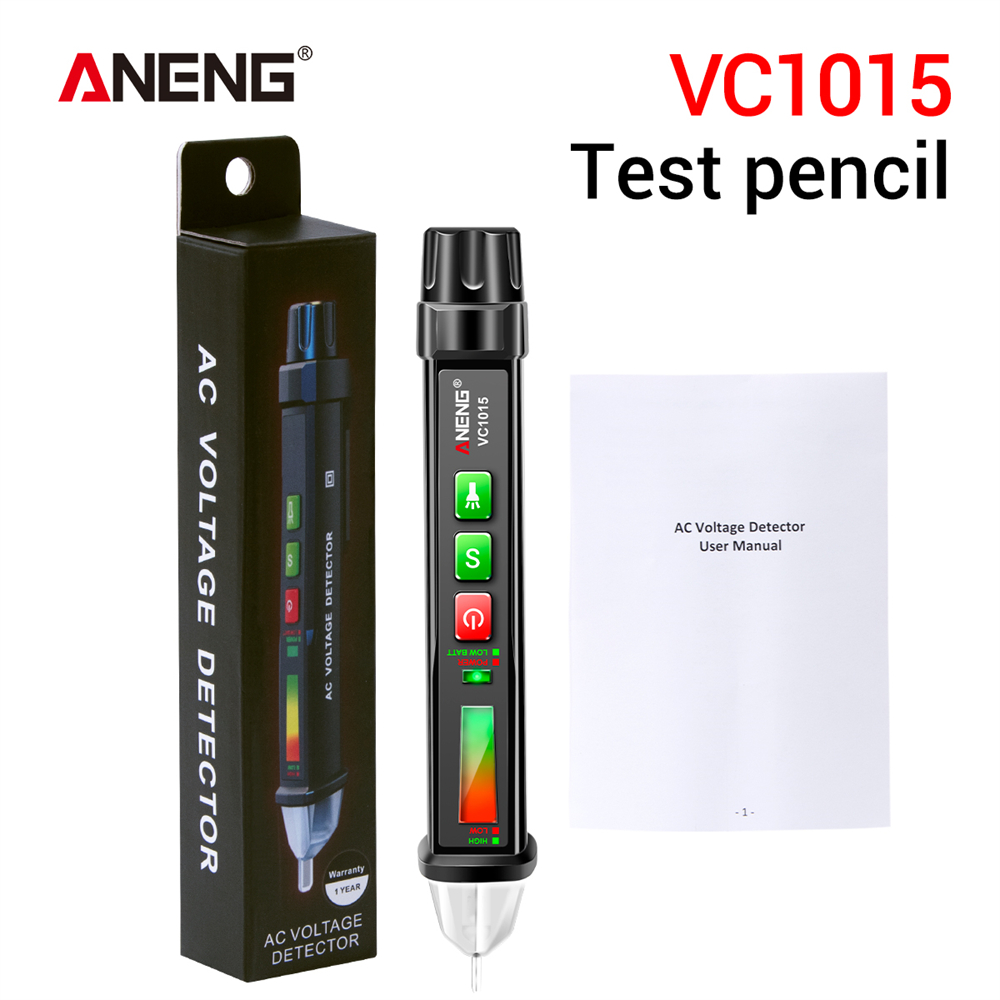

Package includes:
1 x AC Voltage Tester
1 x User Manual

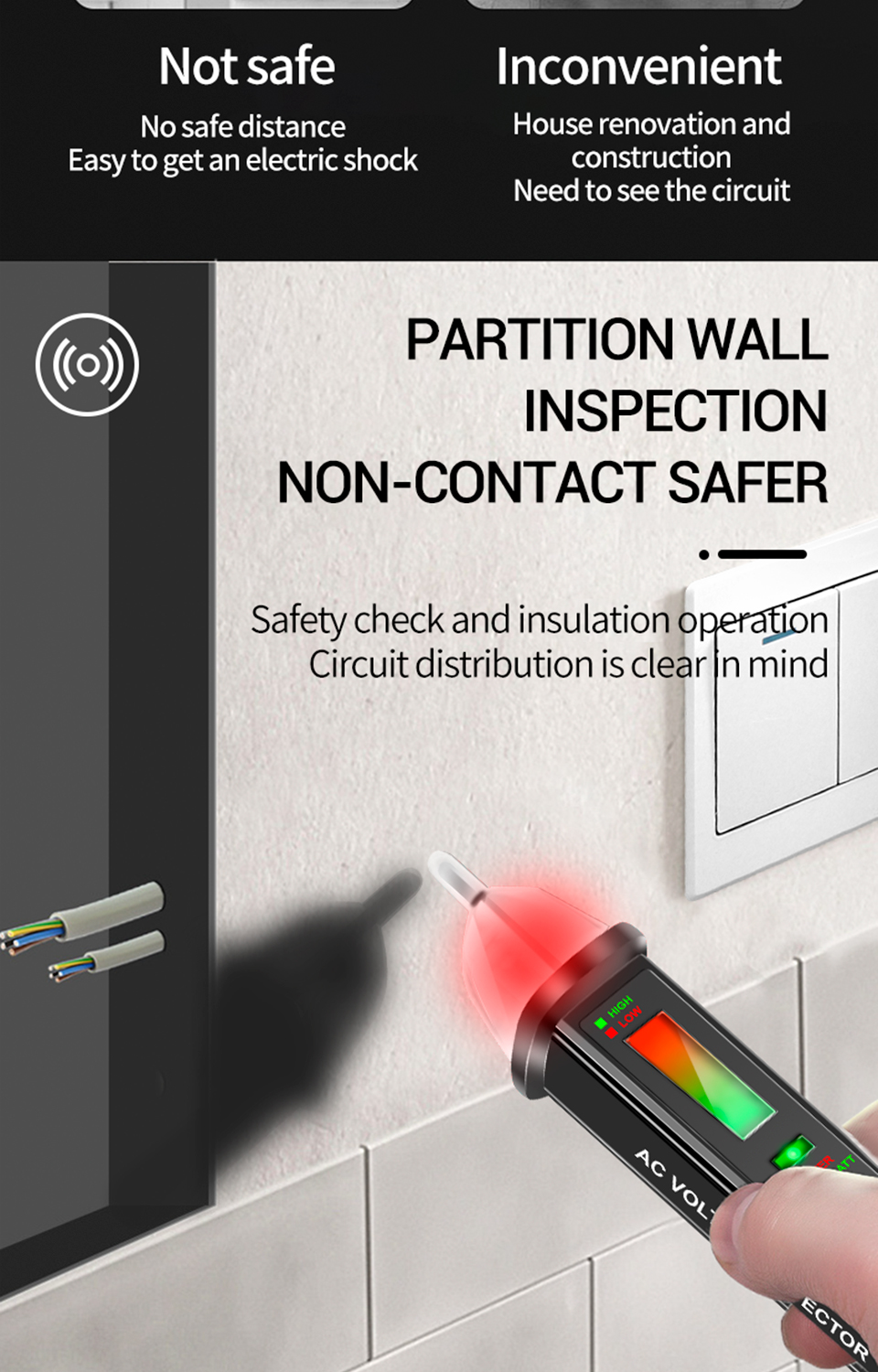

AC voltage detection
Insert the probe of the tester into power socket or get close to the live wire,when the tester defects AC voltage signal ,the induced voltage signal indicator flashes, according to the detected signal indicator flashes, according to the detected signal strength ,the signal strength indicator will show three kinds of color,green, green + red or red, meanwhile the buzzer makes alarming sounds of different frequencies:
When AC voltage signal is detected ,the signal intensitay indicator is green(low);
When higher AC voltage signal is detectde, the signal intensity indicator is red(high).

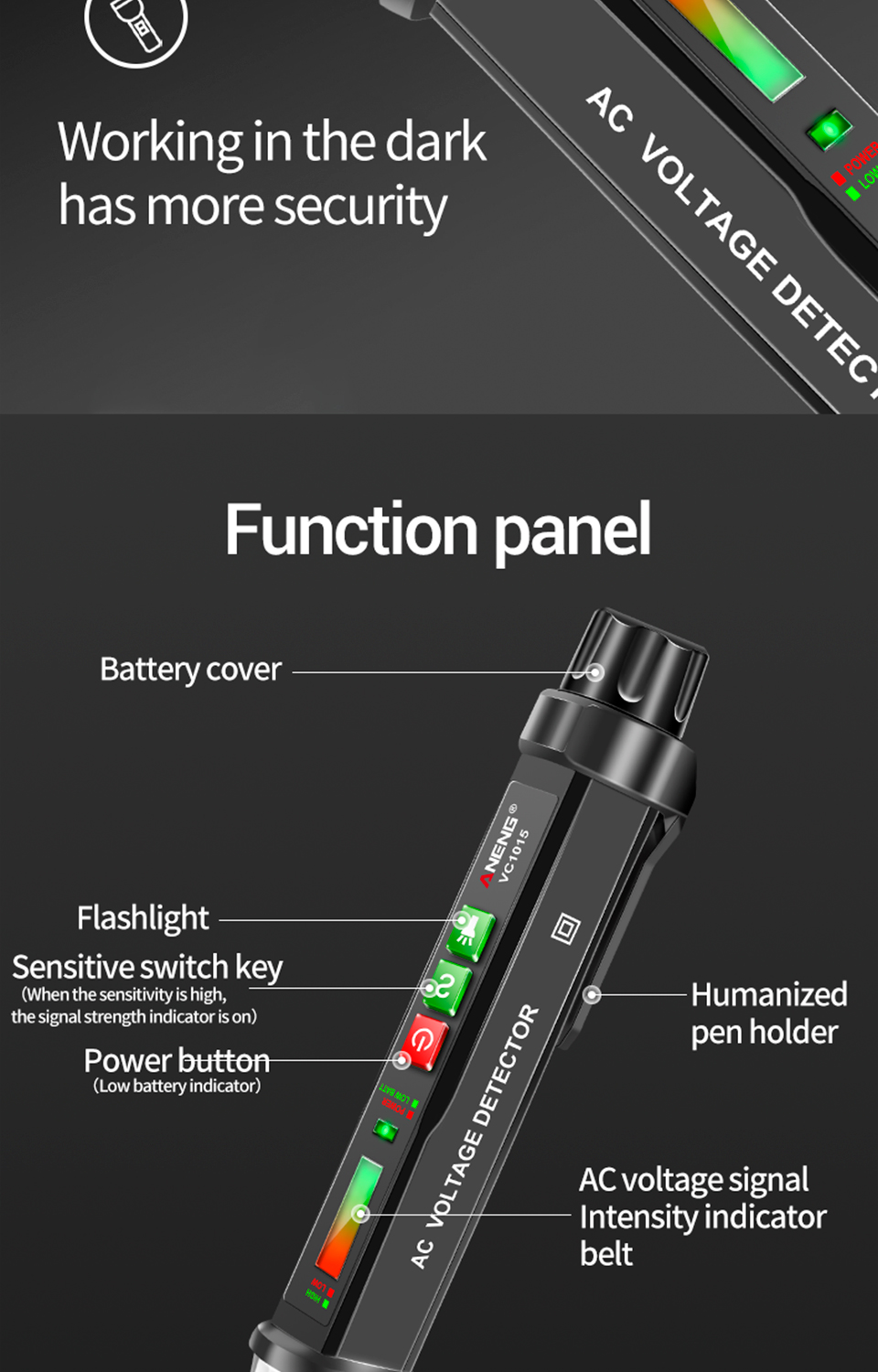

Turn on/off
Press the power on/off buton for two seconds,thebuzzer makes alarming sounds,flashlight,intensity indicator, signalstrength indicator band,power/low battery in dilnal strestivity switching buttonindicator fiashes once alor,senaite time. When no ACsignal is detected,the power indicator will change to thebreathing indicator state with the current standby. Whenthe detector is on,press the power on/off button,to turnoff the detector.

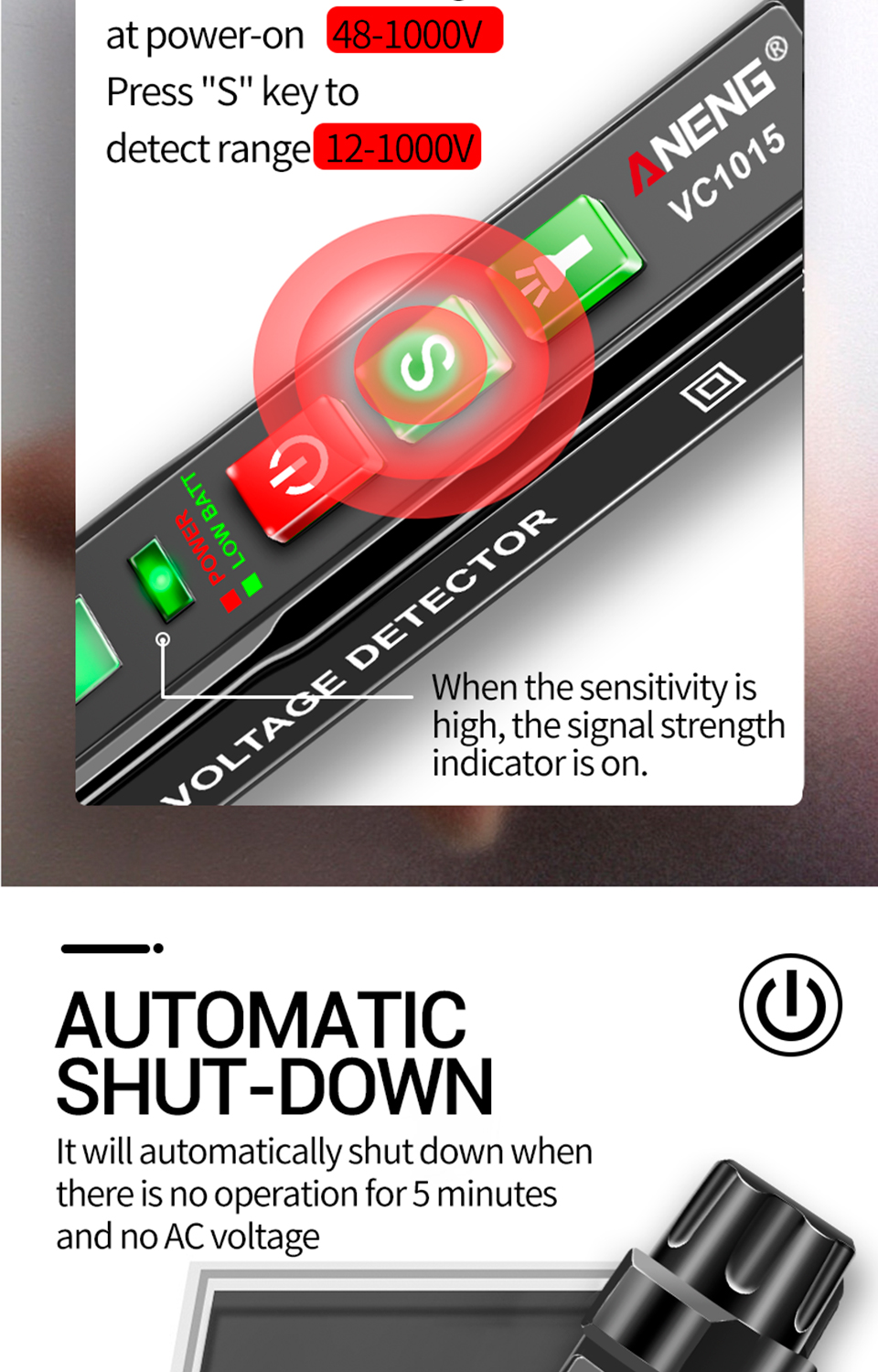

Low/high sensitivity switch
At first, it's low sensitivity,the ac voltage range is about48-1000V, when press the "S" button,the buttonindicator is light to indicate the current state of highsensitivity, the ac voltage range is about 12-1000V.Press the button to switch the low/high sensitivity.

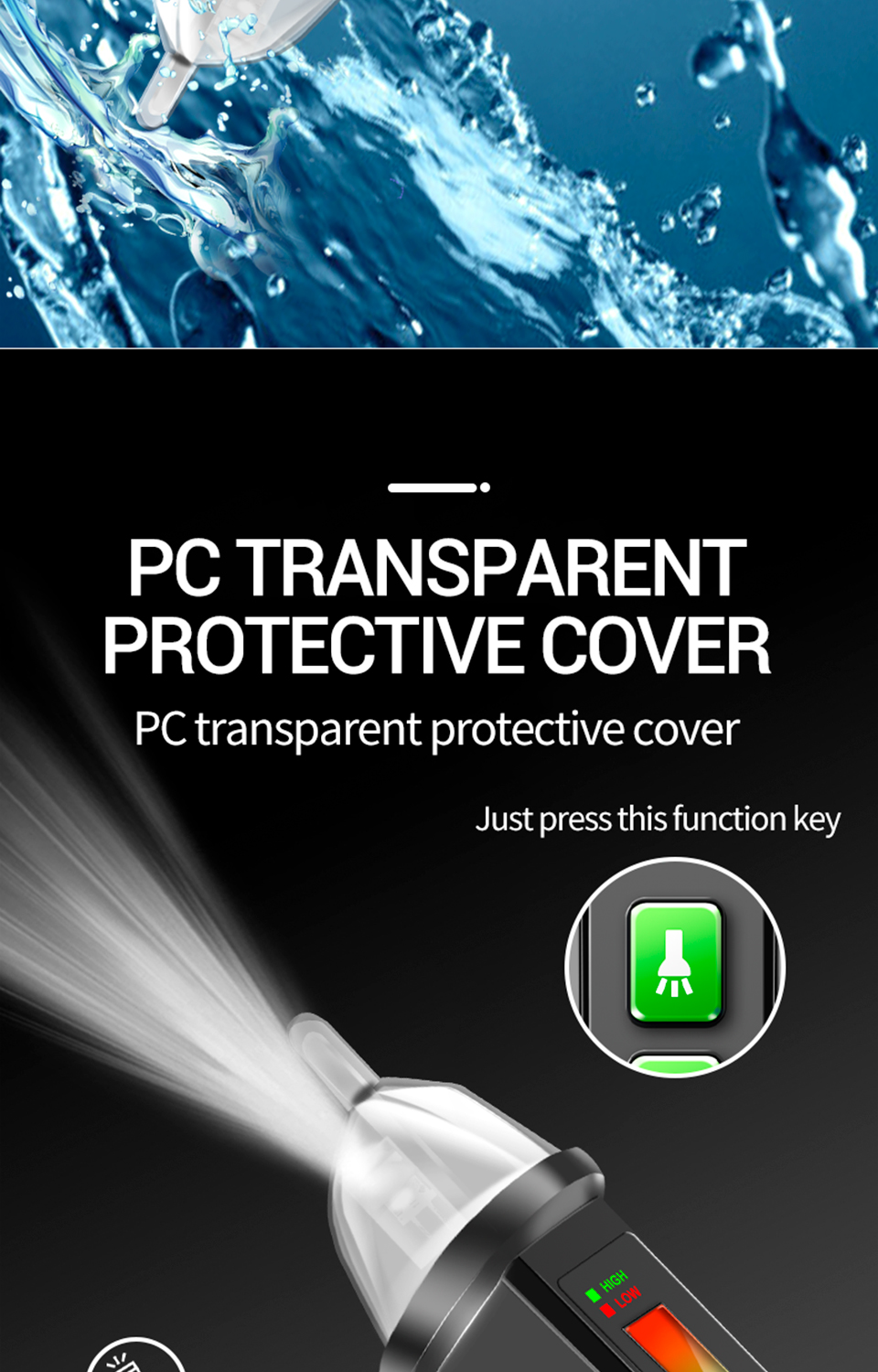

Turn on/off flashlight
When the detector is on, press the flashlight on/offbutton to turn/off the flashlight.
Automatic power off function
When there's no operation of the detector or there's nosignal detected range by the detector,the detector willpower off automatically.

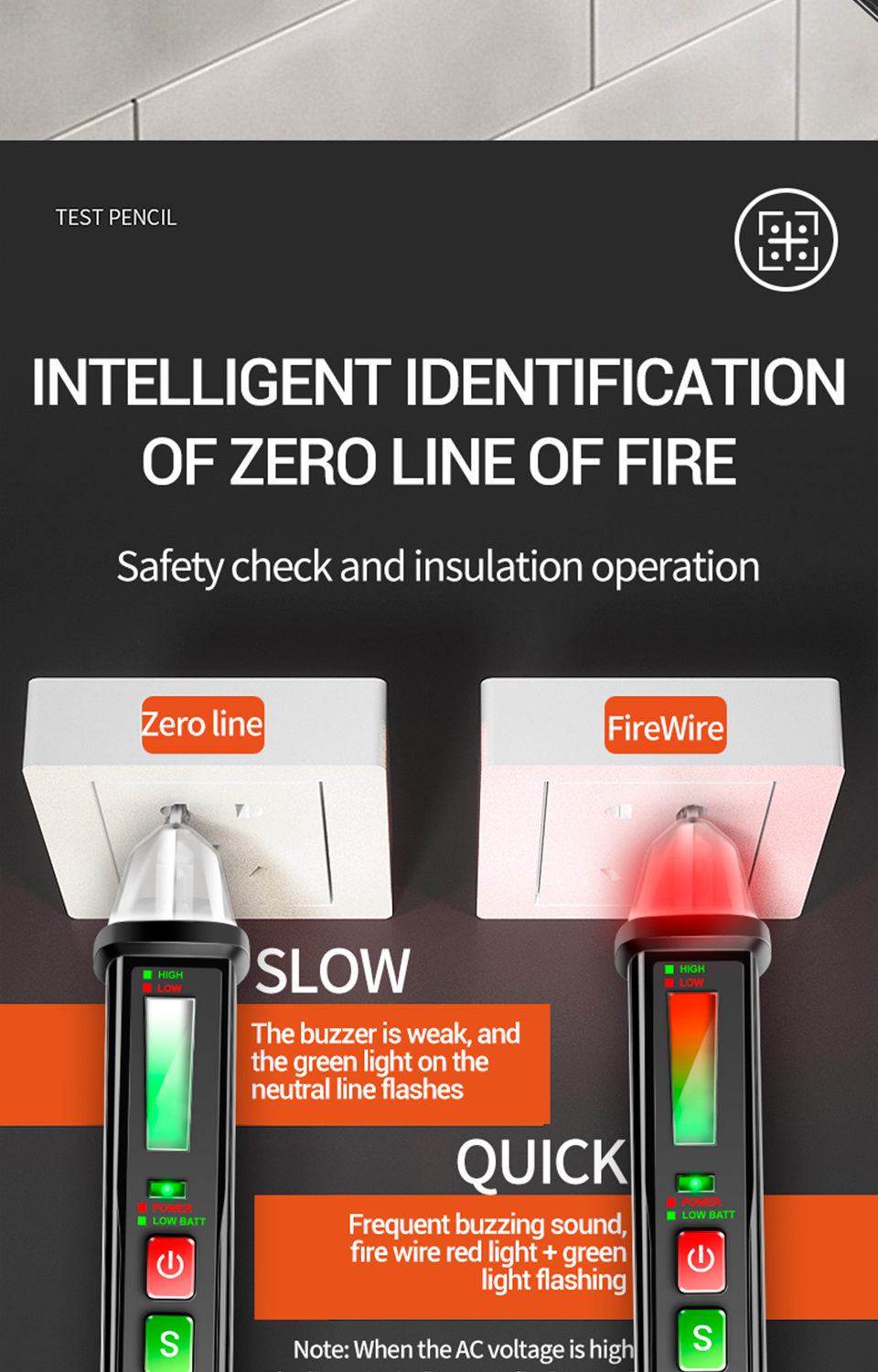

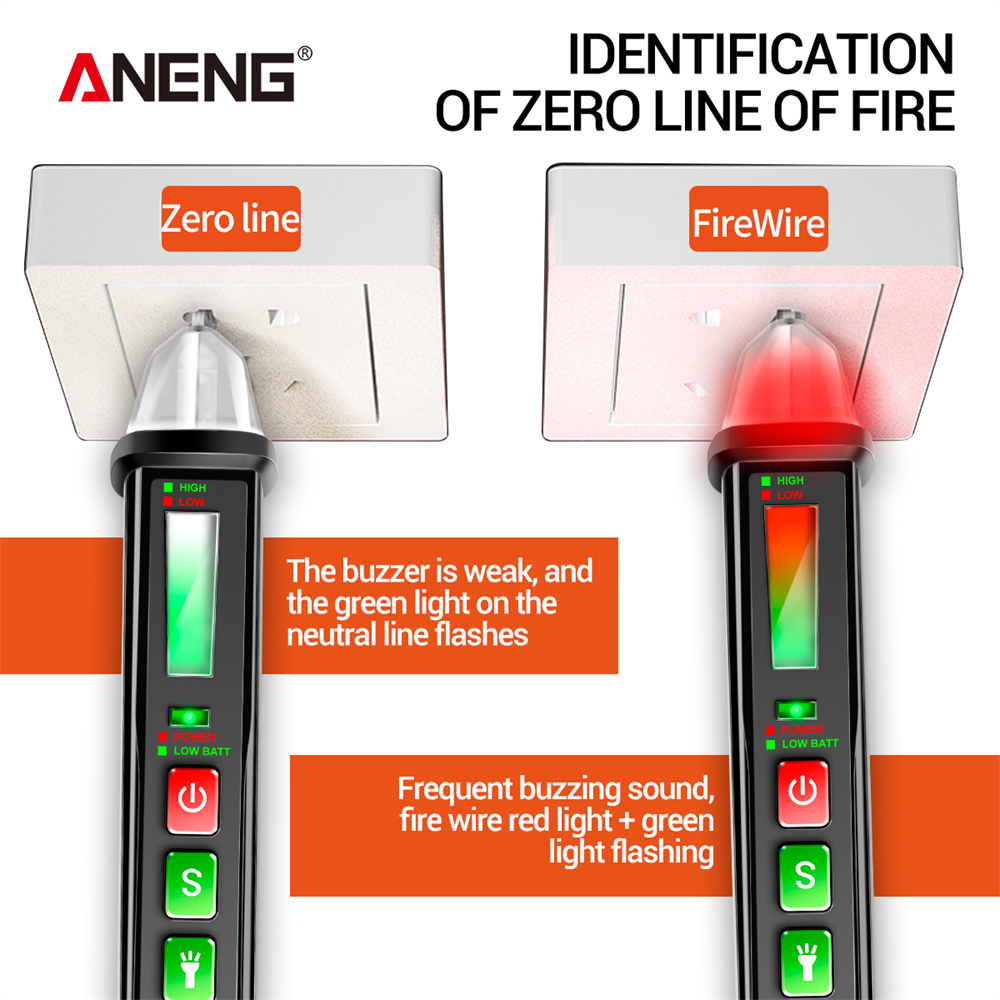

Neutral line/live wire judgment

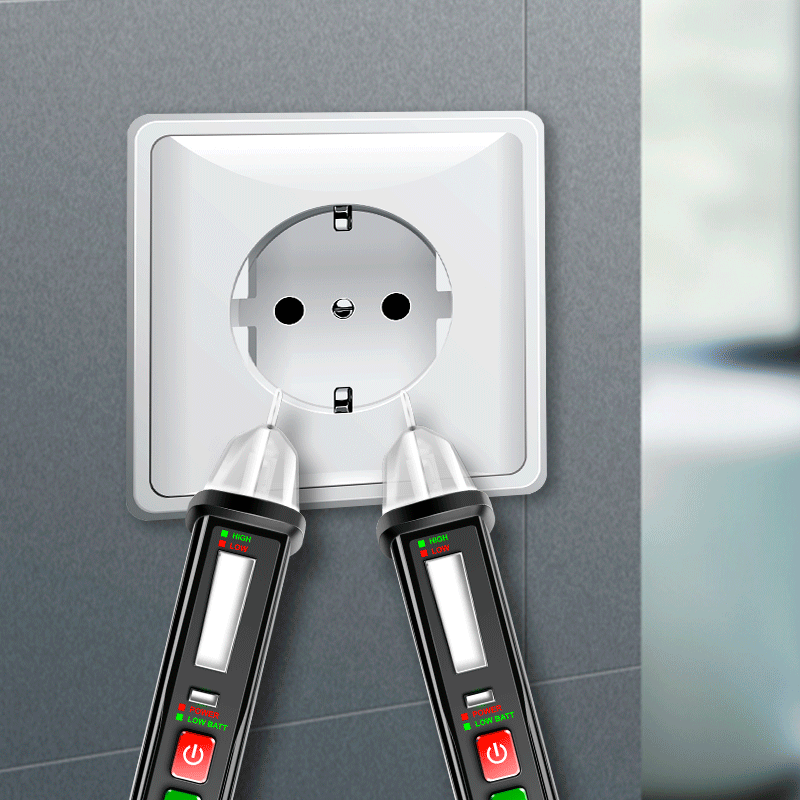

Separate two wires to be tested as far as possible,andthen use the probe of the detector to get close to thewires,for socket,insert the probe into the socket,andthe one with strong induced signal detected by thedetector is live wire, while the one with weak inducedsignal or without induced signal is neutral line.
Battery undervoltage indication
When the battery voltage is low, the power/low batteryindicator is steady red. Please replace the batterytimely.
