OBDSTAR CAN DIRECT-V2 Kit for X300 Classic G3/ Odo Master/ X300 Pro4

OBDSTAR CAN DIRECT-V2 Kit

CAN DIRECT-V2 is used for bypassing the gateway modules in newer vehicles and provide direct access to the vehicles CAN bus for proximity key programming(Note: If reading data of a gateway vehicle by an OBD diagnostic connector, it will be blocked!), supports Proximity Key Programming, Cluster Calibration, Automotive Repair, CAN Frame Acquisition and other functions.

Compatibe with X300 Classic G3/ Odo Master/ X300 Pro4 and third-party tools.

Functions of CAN DIRECT-V2 Kit:

1. IMMO (Work with X300 Classic G3, X300 Pro4 ):

TOYOTA/LEXUS (proximity Key Programming)

Support below (4A) models:

2019- TOYOTA COROLLA
2021- TOYOTA COROLLA CROSS
2021- TOYOTA COROLLA SPORT
2021- TOYOTA COROLLA SPORT HV
2021- TOYOTA COROLLA TOURING
2021- TOYOTA COROLLA TOURING HV
2021- TOYOTA COROLLA HV
2019- TOYOTA LEVIN
2021- TOYOTA LEVIN HV
2021- TOYOTA ALLION
2021- TOYOTA LEVIN

Support below (8A) model:

2021- TOYOTA Yaris Cross

Support below (8A-A8) models:

2018- TOYOTA PRADO
2018- TOYOTA LAND CRUISER
2018- TOYOTA CROWN
2018- TOYOTA HIGHLANDER

Support below (8A-A9) models:

2018- TOYOTA CAMRY
2018- TOYOTA C-HR
2018- TOYOTA IZOA
2018- TOYOTA PRIUS
2018- TOYOTA VELLFIRE
2018- TOYOTA ALPHARO
2018- LEXUS RX450H
2018- LEXUS LC

Support below (8A-AA) models:

2018- TOYOTA HIGHLANDER HV
2018- TOYOTA RAV4
2018- TOYOTA RAV4 HV
2018- TOYOTA AVALON
2018- TOYOTA CROWN KLUGER HV
2018- LEXUS ES
2018- LEXUS UX
2018- LEXUS RX
2018- LEXUS LS

Support below model:

2021- TOYOTA COROLLA CROSS HV

RENAULT

2020- RENAULT Clio 5
2020- RENAULT Captur
2020- RENAULT Arkana
2020- RENAULT Kangoo
2020 RENAULT Espace
2021- RENAULT Scenic
2020- RENAULT Zoe
2022- RENAULT Traffic
2021- RENAULT MEGANE 4 PH2

PSA

2023- PEUGEOT 308 Prox (For UDS+ systems)
2023- PEUGEOT 208 Prox (For UDS+ systems)

OPEL

2022- OPEL Astra L (For UDS+ systems)

FCA

2018- DODGE Charger
2019- DODGE Ram
2018- DODGE Challenger
2018- DODGE Durango
2018- DODGE Journey
2018- JEEP Renegade Prox
2019- JEEP Renegade
2019- JEEP Compass Blade
2018- JEEP Compass Prox
2018- JEEP CHEROKEE
2018- JEEP GRAND CHEROKEE
2018- JEEP WRANGLER
2018- JEEP RENEGADE
2017- CHRYSLER Pacifica Prox
2015- CHRYSLER 300/300C
2018- MASERATI models, including GHIBLI, LEVANTE, and QUATTROPORTE etc.
2018- FIAT models, including 500, 500C, and 500X etc.
2018- Alfa Romeo models, including GIULIA, STELVIO, and TONALE etc.

2. Cluster Calibration Function (Work with X300 Classic G3, Odo Master):

Support below TOYOTA/LEXUS dashboard types:

2019- LEXUS ES S6J3001 DENSO
2023- LEXUS GX550 R7F701401 DENSO
2023- LEXUS LM350H R7F701401 DENSO
2019- LEXUS LS S6J3001 DENSO
2023- LEXUS LS500 R7F701401 DENSO
2022- LEXUS LX600 S6J3001 DENSO
2023- LEXUS NX R7F701441 DENSO
2023- LEXUS NX350 R7F701401 DENSO
2023- LEXUS RX R7F701441 DENSO
2023- LEXUS RX350 R7F701401 DENSO
2023- LEXUS RX450H R7F701401 DENSO
2023- LEXUS RX500H R7F701401 DENSO
2018- LEXUS UX S6J3001 DENSO
2019-TOYOTA 4RUNNER S6J3001 DENSO
2019-TOYOTA ALLION S6J3001 DENSO
2023-TOYOTA ALPHARD R7F701401 DENSO
2018-TOYOTA AVALON S6J3001 DENSO
2024-TOYOTA AVANZA R7F701442
2023-TOYOTA AVANZA VELOZ Q S6J3001 DENSO
2023-TOYOTA BX4 R7F701441 DENSO
2023-TOYOTA BZ4 R7F701441 DENSO
2023-TOYOTA BZ4X R7F701401 DENSO
2023-TOYOTA BZ4X R7F701441 DENSO
2024-TOYOTA CAMRY R7F701401 DENSO(80)
2018-TOYOTA CAMRY S6J3001 DENSO
2018-TOYOTA CH-R S6J3001 DENSO
2024-TOYOTA COROLLA R7F701442
2023-TOYOTA COROLLA R7F701401 DENSO
2018-TOYOTA COROLLA S6J3001 DENSO

TOYOTA COROLLA R7F701441 DENSO

2023-TOYOTA COROLLA CROSS R7F701401 DENSO
2021-TOYOTA COROLLA CROSS S6J3001 DENSO
2024-TOYOTA CROWN R7F701401 DENSO
2018-TOYOTA CROWN KLUGER S6J3001 DENSO
TOYOTA FRONTLANDER R7F701441 DENSO
2019-TOYOTA GRANACE S6J3001 DENSO

TOYOTA GRANVIA S6J3001 DENSO

2020-TOYOTA HARRIER R7F701401 DENSO
2016-TOYOTA HARRIER S6J3001 DENSO
2019-TOYOTA HIACE S6J3001 DENSO
2023-TOYOTA HIGHLANDER R7F701401 DENSO(70)
2018-TOYOTA HIGHLANDER S6J3001 DENSO
2018-TOYOTA KLUGER S6J3001 DENSO
2024-TOYOTA LEVIN R7F701401 DENSO
2019-TOYOTA LEVIN S6J3001 DENSO

TOYOTA LEVIN R7F701441 DENSO

2019-TOYOTA LINSHANG S6J3001 DENSO
2023 TOYOTA RAIZE S6J3001 DENSO
2023-TOYOTA RAV4 R7F701401 DENSO
2019-TOYOTA RAV4 S6J3001 DENSO
2022 TOYOTA SIENNA R7F701401 FULL TFT
2019-TOYOTA SIENNA S6J3001 DENSO
2018-TOYOTA TACOMA S6J3001 DENSO
2023-TOYOTA TACOMA IV R7F701401 DENSO
2022-TOYOTA TUNDRA R7F701401 DENSO
2023-TOYOTA VELLFIRE III R7F701401 DENSO
2023 TOYOTA VENZA R7F701401 DENSO
2019-TOYOTA VENZA S6J3001 DENSO
2023-TOYOTA VIOS S6J3001 DENSO
2020-TOYOTA WILDLANDER R7F701401 DENSO
2019-TOYOTA WILDLANDER S6J3001 DENSO
2024-TOYOTA YARIS R7F701442
2020-TOYOTA YARIS R7F701441 DENSO
2019-TOYOTA YARIS CROSS S6J3001 DENSO
2019-TOYOTA YARIS IV S6J3001 DENSO

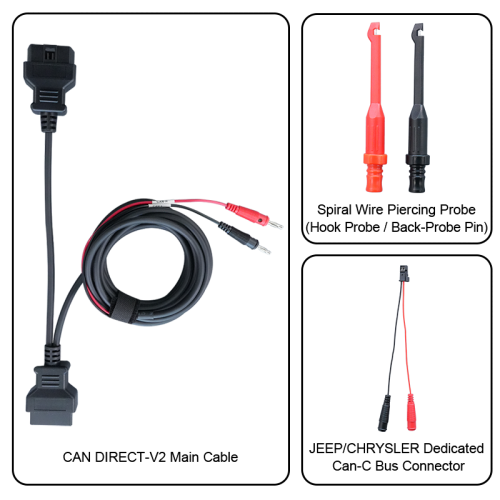

Package includes:

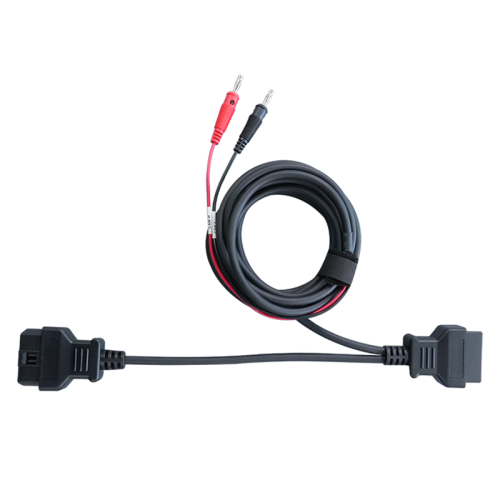

1pc x CAN DIRECT-V2 Main Cable
1pc x Spiral Wire Piercing Probe (Hook Probe / Back-Probe Pin)

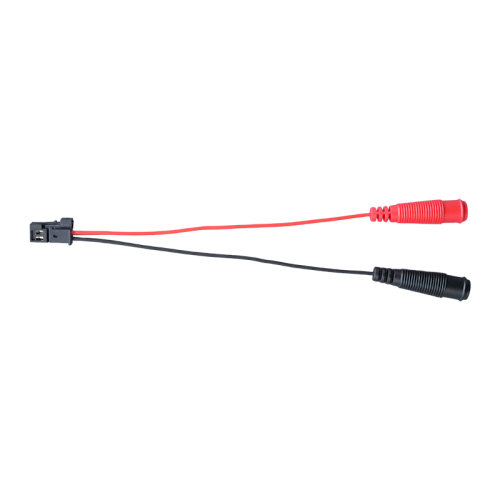

1pc x JEEP/CHRYSLER Dedicated Can-C Bus Connector
