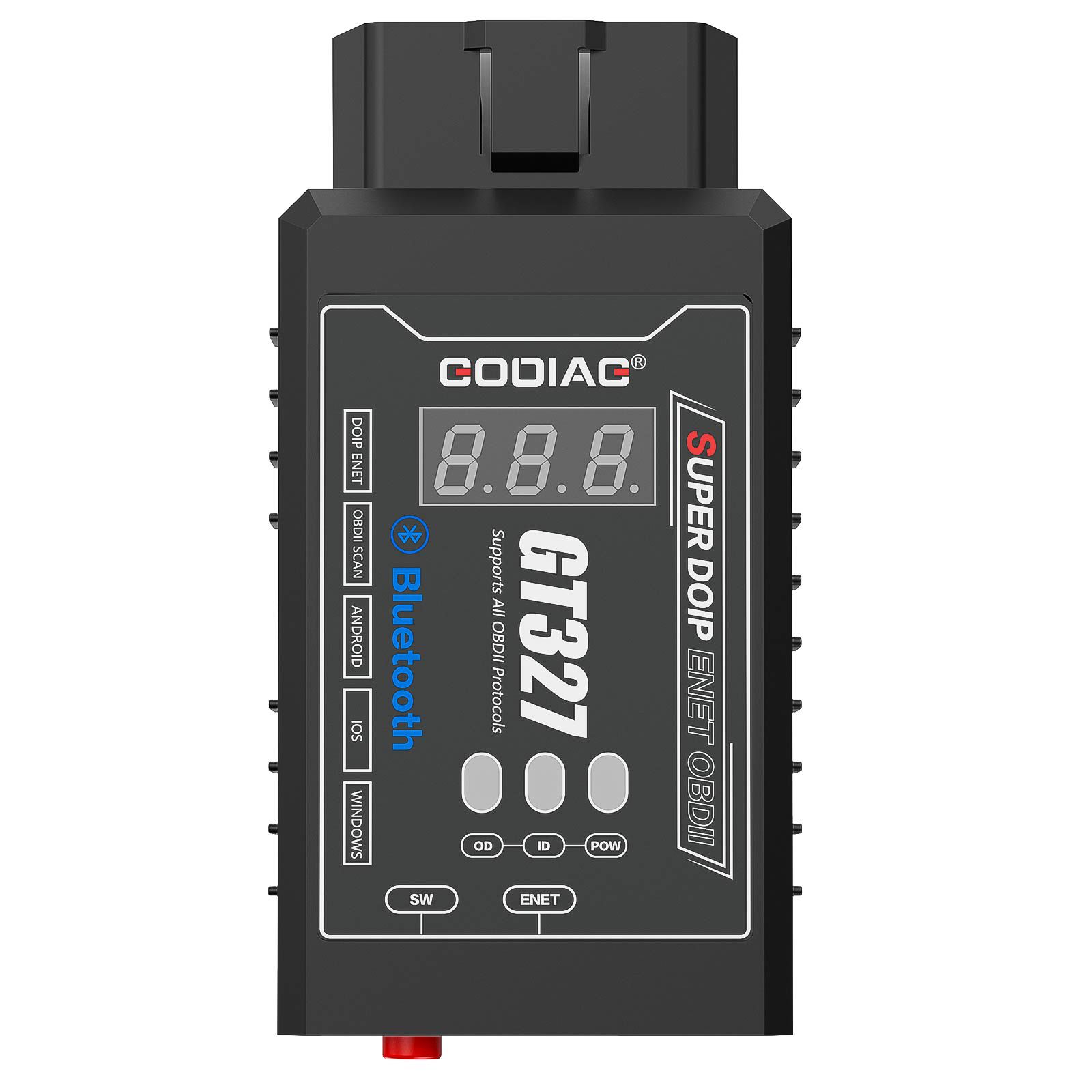

GODIAG GT327 SUPER DOIP ENET ELM327v1.5 Bluetooth 4.0 OBDII Scanner with Voltage Display for iOS/Android/Windows

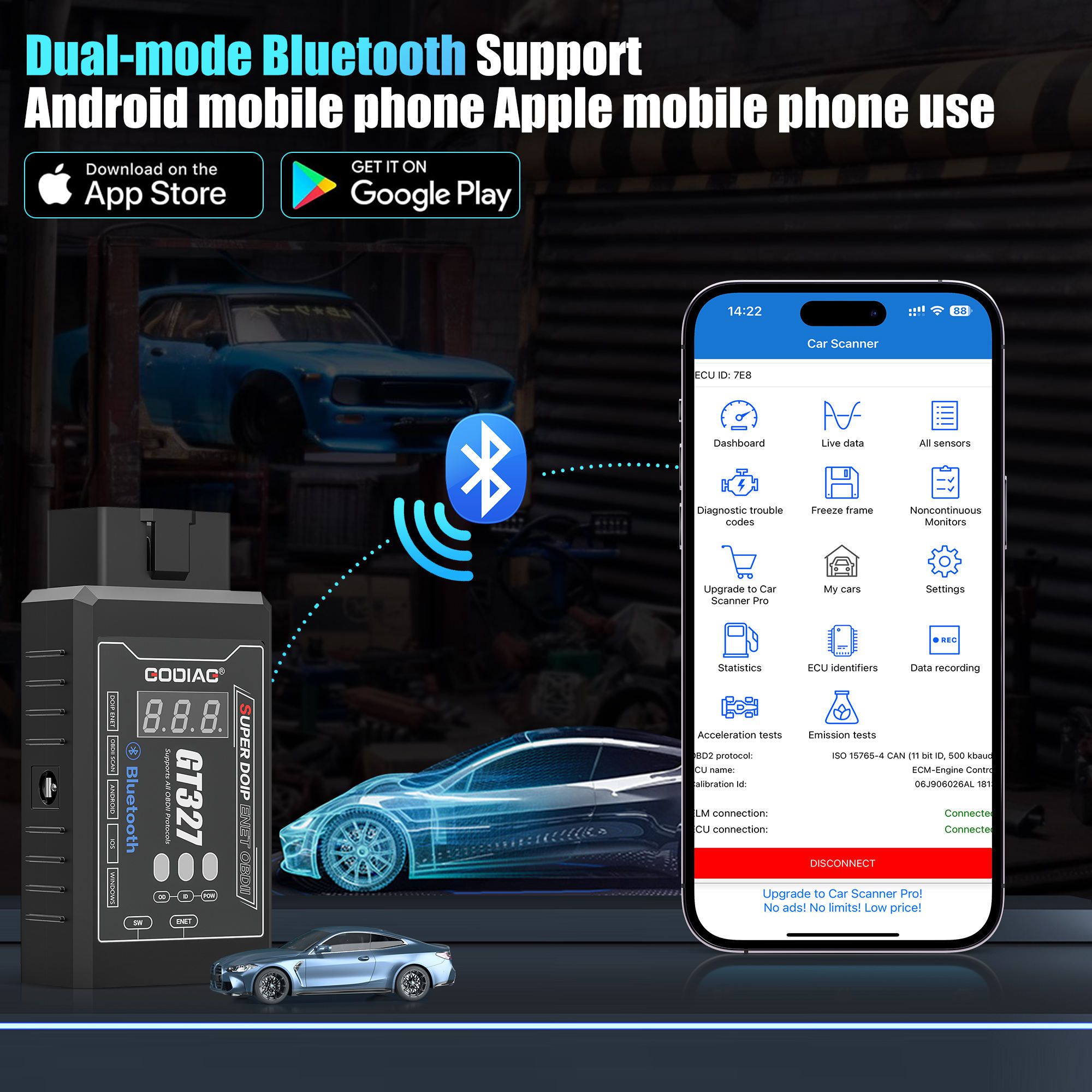

The GODIAG GT327 SUPER DOIP ENET OBDII ELM327v1.5 full scanner is specially developed for car maintenance technicians and DIY maintenance personnel. This device supports Bluetooth communication using an ARM core dual-mode Bluetooth module, enabling seamless connectivity with both Android and iPhone devices via Bluetooth for OBDII diagnostics. Additionally, it can be connected to a computer via an Ethernet cable to work with DOIP and ENET vehicle-specific diagnostic software for advanced diagnostic programming and coding operations.

Note: This product does not include software.

Product Features

1. Voltage Monitoring: Displays the current vehicle diagnostic interface voltage.
2. Low-Voltage Alarm: Alerts when vehicle voltage drops below 11V. If triggered, users must charge the car battery using a dedicated charger. Avoid diagnosing, programming, or attempting to start the vehicle after the alarm to prevent excessive battery discharge and potential damage.
3. Android Compatibility: Supports Android phones (Bluetooth name: OBD II).
4. iPhone Compatibility: Supports iPhones (Bluetooth name: OBD BLE).
5. DOIP/ENET Support: Enables diagnostic programming and coding for vehicles equipped with DOIP/ENET communication protocols.

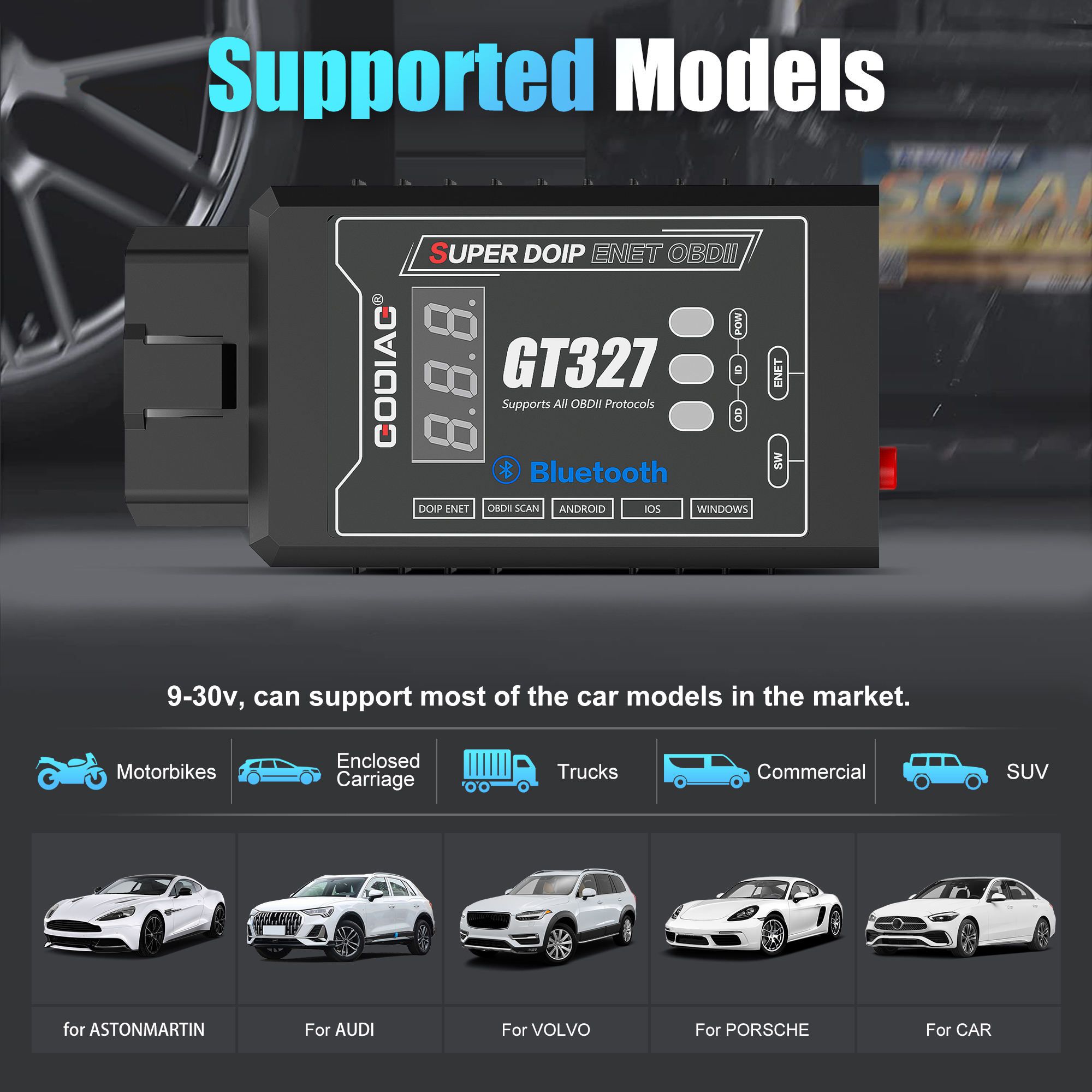

6. Wide Vehicle Compatibility: Works with motorcycles, cars, trucks, commercial vehicles, and SUVs operating within a 9–30V range.

Product Functions

The GODIAG GT327 SUPER DOIP ENET OBDII ELM327v1.5 Full Scanner provides wireless Bluetooth communication and supports standard OBD II vehicle diagnostics.

Supported Protocols

1. SAE J1850 PWM (41.6 Kbaud)
2. SAE J1850 VPW (10.4 Kbaud)
3. ISO9141-2 (5 baud init, 10.4 Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11-bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29-bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11-bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29-bit ID, 250 Kbaud)
10. DOIP ENET (supported via Ethernet cable connection)

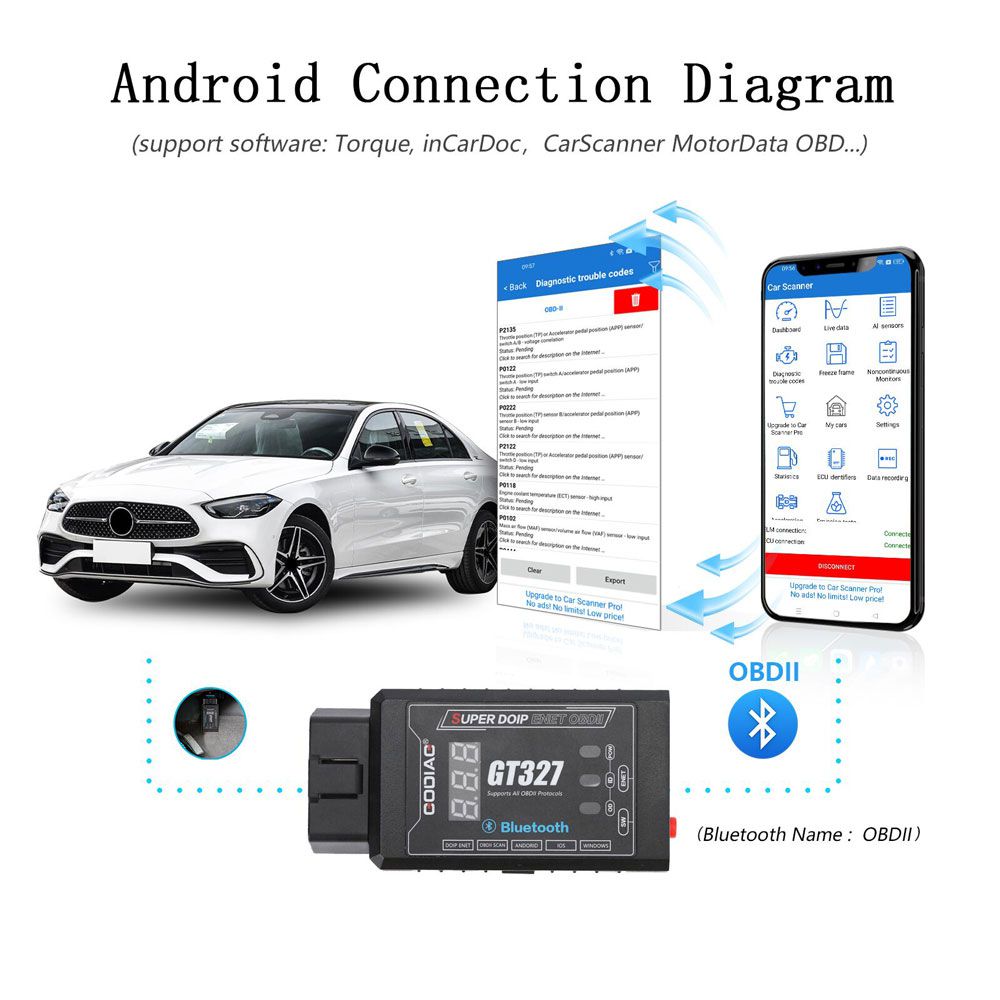

Android Phone Bluetooth Diagnostic Function & Usage Steps

Supported Software: Torque, inCarDoc, CarScanner, MotorData OBD, DashCommand, OBD Car Doctor, Auto Doctor, MiniOBDI, EOBD, and more.
Important: This device supports Bluetooth only. Do not use Wi-Fi or software designed for dedicated hardware with this scanner.

1. Install Software: Download and install diagnostic software on your Android phone (Torque, CarScanner, or MotorData OBD are recommended). Ensure the DOIP ENET switch on the device is popped up (off position). Do not connect the Ethernet cable—this is reserved for DOIP ENET computer-specific software only.
2. Connect Device: Plug the scanner into the vehicle’s OBDII port. The voltage display will show the current diagnostic interface voltage, and the power indicator light will turn on. If voltage falls below 11V, an alarm will sound—charge the battery before proceeding.
3. Pair via Bluetooth: Go to phone Settings > Bluetooth > Search for devices > Select “OBD II” and enter password 1234 or 0000. Launch the diagnostic app once pairing is successful.
4. Configure Software: Refer to the recommended software setup video for correct configuration. Note: Settings vary by application.

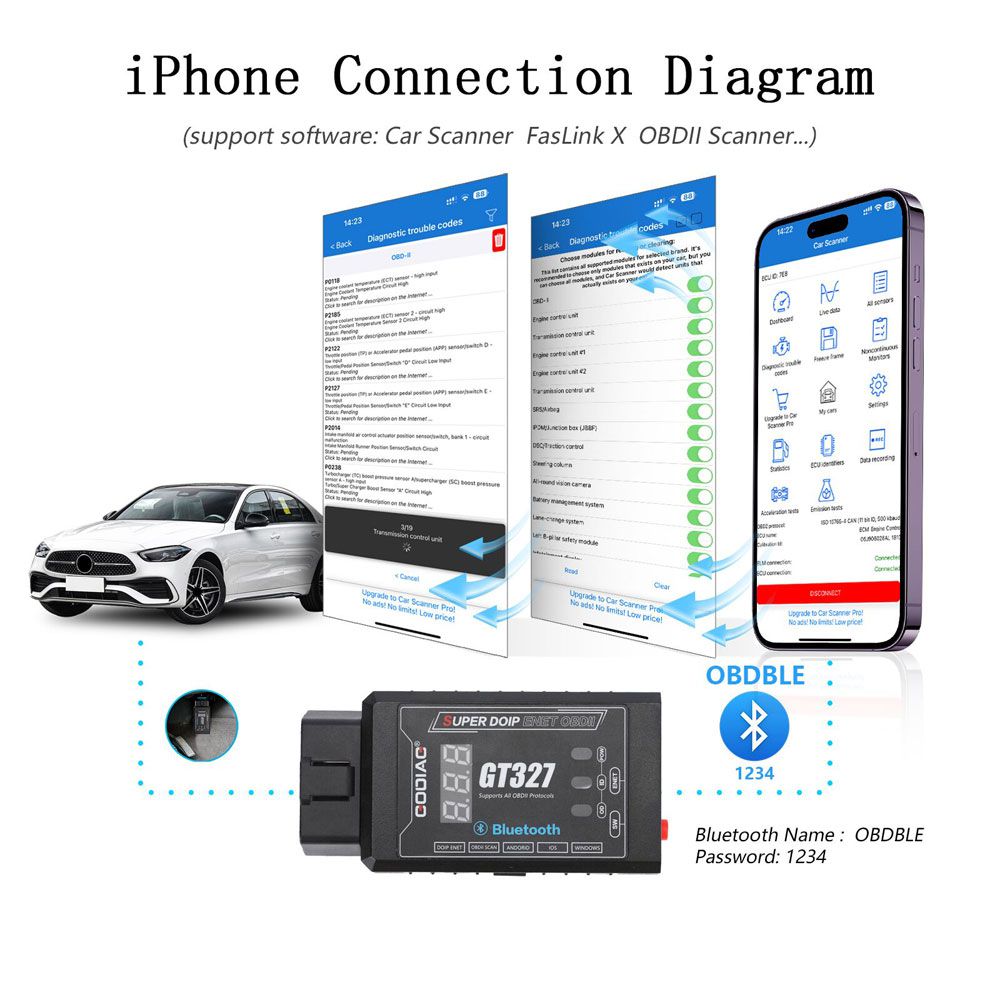

iPhone Bluetooth Diagnostic Function & Usage Steps

Supported Software: Free apps like Car Scanner, FasLink X, OBDII Scanner ELM327, plus various paid options.
Important: This device supports Bluetooth only. Wi-Fi or proprietary hardware software is incompatible.

1. Install Software: Download and install diagnostic software on your iPhone (CarScanner or FasLink X recommended). Keep the DOIP ENET switch popped up (off) and do not connect the Ethernet cable—it is only for computer-based DOIP ENET software.
2. Connect Device: Insert the scanner into the vehicle’s OBDII port. The voltage screen displays the current interface voltage, and the power light illuminates. If voltage drops below 11V, an alarm sounds—use a dedicated charger before continuing.
3. Enable Bluetooth: Open iPhone Settings > Bluetooth and turn it on. Note: iPhones do not allow manual Bluetooth pairing in settings for third-party OBD devices.
4. Pair in App: Open the diagnostic app’s settings, select the Bluetooth name “OBD BLE,” and enter password 1234 or 0000. Consult the recommended setup video for guidance. Settings differ per app.

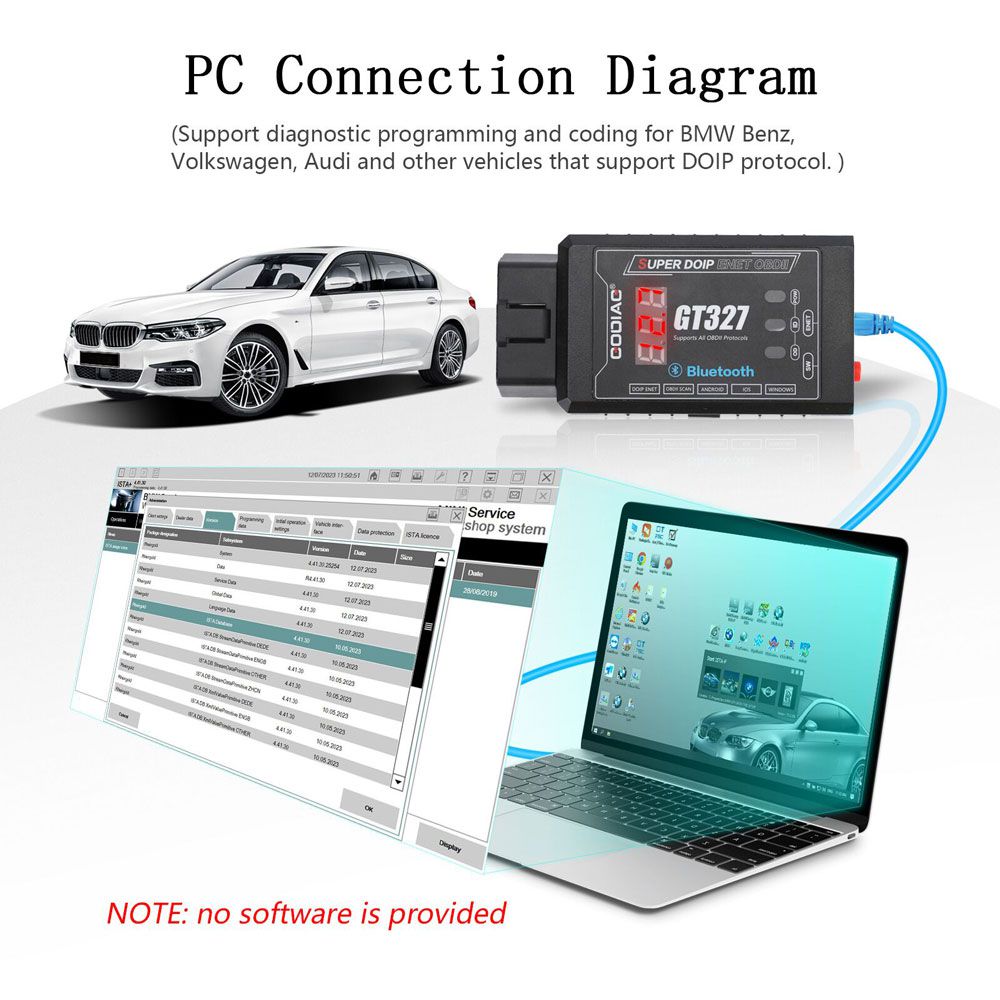

SUPER DOIP ENET Connection to Computer

Enables diagnostic programming and coding for vehicles supporting the DOIP protocol, including:

• BMW, Mercedes-Benz, Volkswagen, Audi
• Land Rover, Bentley, Lamborghini, Jaguar, Volvo, Geely

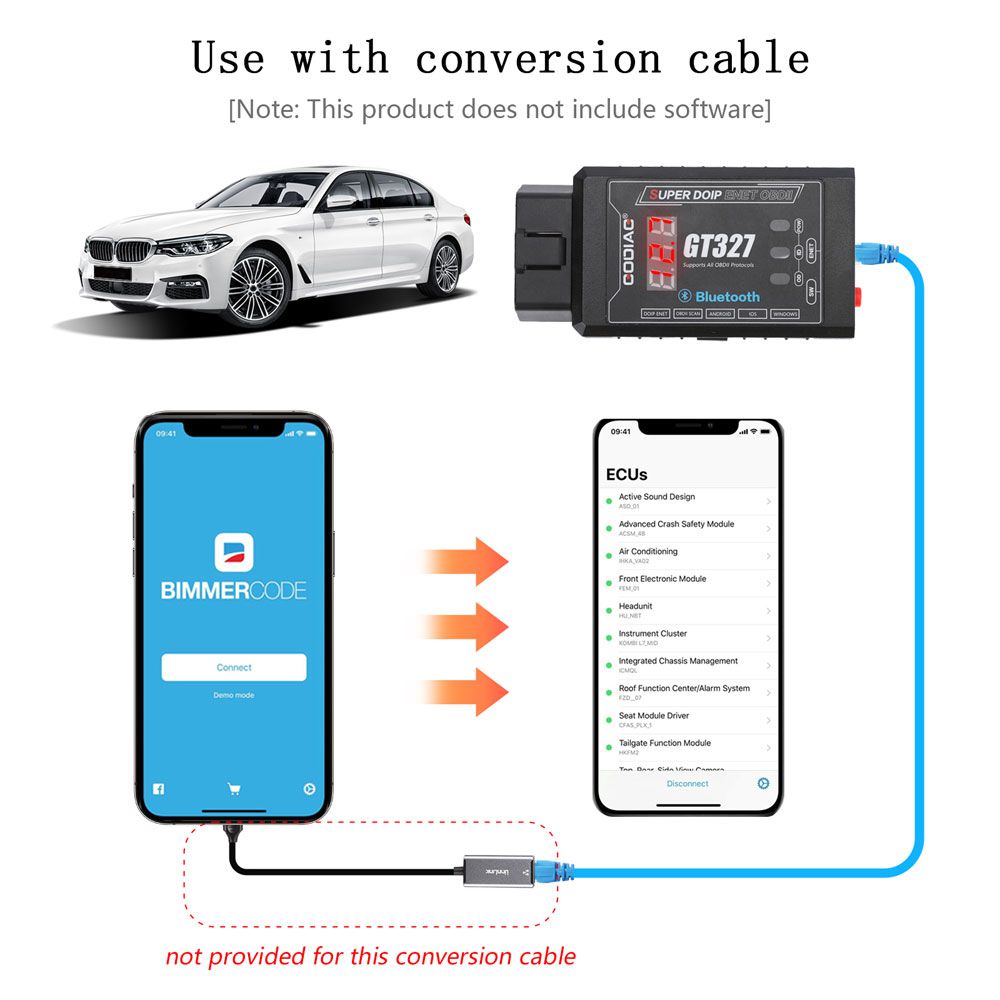

SUPER DOIP ENET Connection to Mobile Phone

Important: DOIP ENET vehicle diagnostics require a physical Ethernet cable connection. An OTG converter (not included) is also necessary.

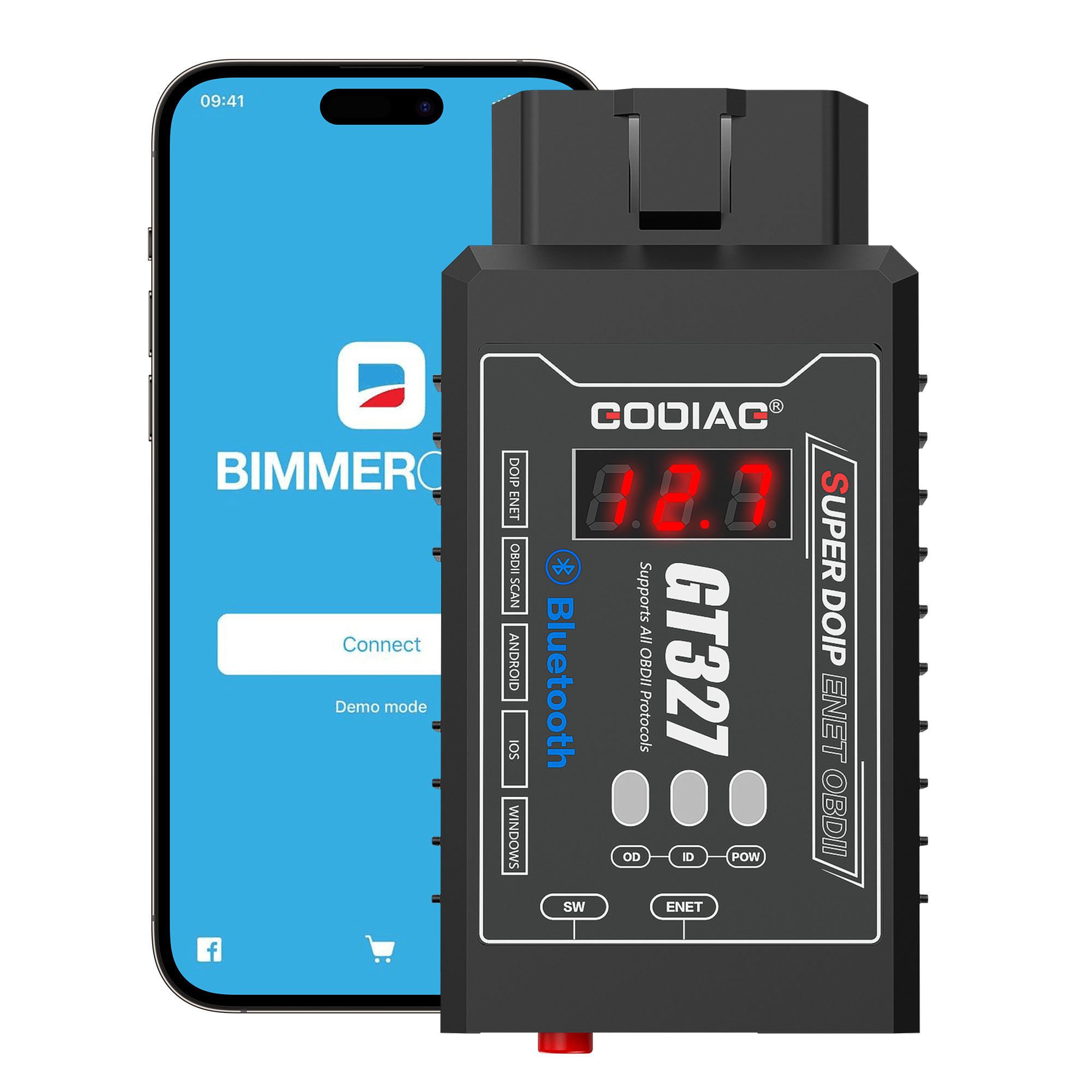

Compatible Apps: Bimmercode, Bootmod3, Bimmerlink OBD, and others when used with an OTG converter.

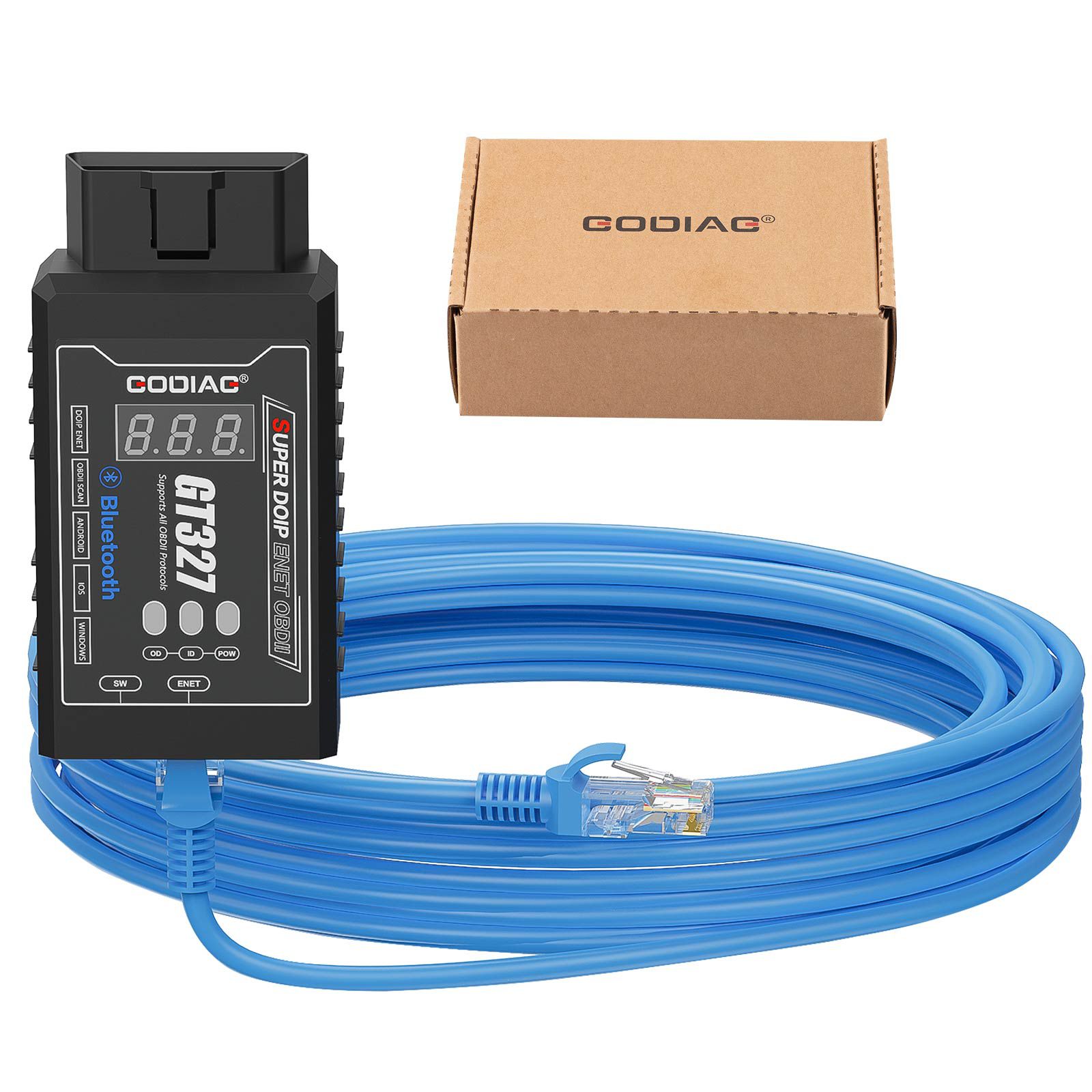

Package Includes

• 1 × GODIAG GT327 SUPER DOIP ENET OBDII Host
• 1 × ENET Ethernet Cable (3 meters)
• 1 × PDF Manual
