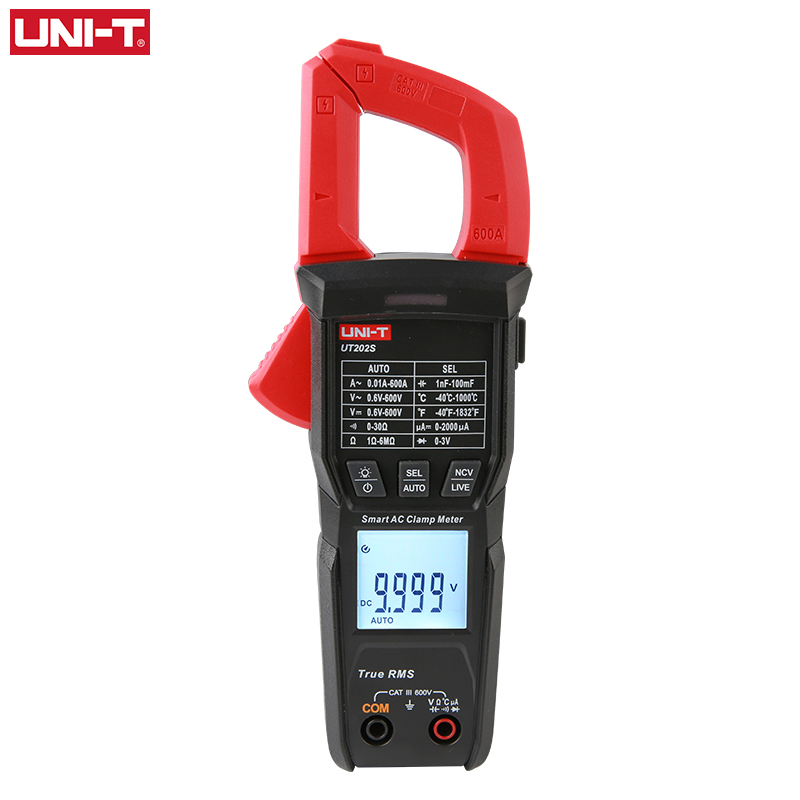

UNI-T Clamp Meter UT202S UT202BT 600A AC Amperometric Clamp Digital Voltmeter Temperature Capacitance Tester

UT202S UT202BT AC Clamp MeterUT202S/UT202BT is a handheld true RMS digital clamp meter with stable performance, novel structure, high reliability and high safety, Wholesale UT202S UT202BT AC Clamp Meter
Item No. COBD210731 Price Down Notice
In Stock
Price:
US$76.14/ piece
Discount Price:
US$32.92/ piece 57%
Option:
Quantity:

Shipping:
Airmail Post
Estimated delivery time: 7-45 working days.See details»
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat WhatsApp Skype Ask a question

Related Accessories/Similar Items

UT202S UT202BT AC Clamp Meter

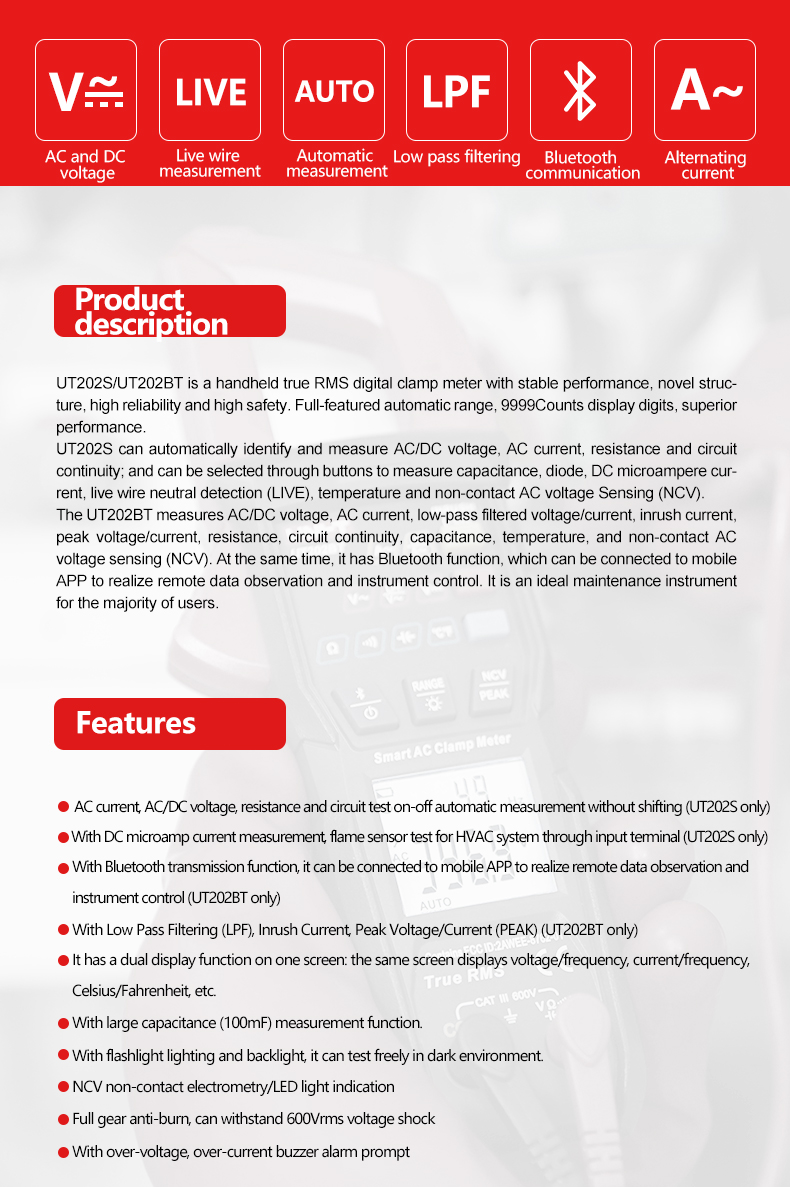

UT202S/UT202BT is a handheld true RMS digital clamp meter with stable performance, novel structure, high reliability and high safety. Full-featured automatic range, 9999Counts display digits, superior performance. UT202S can automatically identify and measure AC/DC voltage, AC current, resistance and circuit continuity; and can be selected through buttons to measure capacitance, diode, DC microampere current, live wire neutral detection (LIVE), temperature and non-contact AC voltage Sensing (NCV). The UT202BT measures AC/DC voltage, AC current, low-pass filtered voltage/current, inrush current, peak voltage/current, resistance, circuit continuity, capacitance, temperature, and non-contact AC voltage sensing (NCV). At the same time, it has Bluetooth function, which can be connected to mobile APP to realize remote data observation and instrument control.

Features

1. Button-design clamp meter
2. One-handed operation and easy to use
3. 9999 counts
4. Jaw opening: 28mm
5. 600V DC AC voltage measurement
6. 600A AC current measurement
7. Temperature measurement
8. Dual display: V+HZ and A+HZ
9. Bluetooth 5.0 (UT202BT only)
10. Inrush current measurement (UT202BT only)
11. Low pass filter measurement (UT202BT only)
12. Bright backlight / Flashlight
13. Non-contact voltage (NCV)
14. CAT III 600V

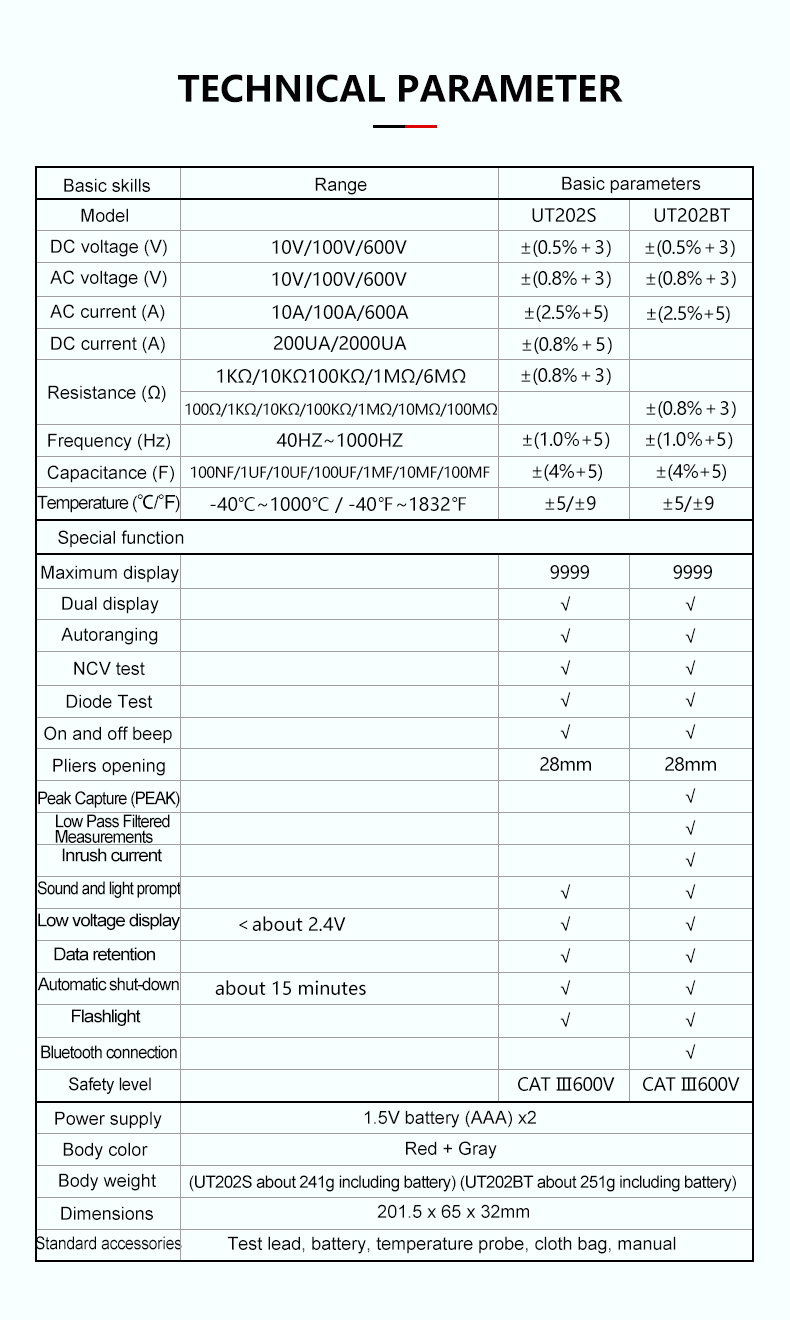

Parameter

Specifications

Range

UT202T

UT202BT

DC voltage (V)

600V

±(0.5%+3)

±(0.5%+3)

AC voltage (V)

600V

±(0.8%+3)

±(0.8%+3)

AC current (A)

600A

±(2.5%+5)

±(2.5%+5)

DC current (A)

2000UA

±(0.8%+5)

Resistance (Ω)

6MΩ

±(0.8%+3)

100MΩ

±(0.8%+3)

Frequency (Hz)

40Hz~1000Hz

±(1.0%+5)

±(1.0%+5)

Capacitance (F)

100mF

±(4%+5)

±(4%+5)

Temperature (℃/℉)

-40℃~1000℃/-40℉~1832℉

±5/±9

±5/±9

Features

Jaw opening

28mm

28mm

Display count

9999

9999

Dual display

Auto range

NCV

Continuity

PEAK hold

Low pass filter

Inrush current

Audible visual indication

Low battery indication

<2.4V approximately

Data hold

Auto power off

Approximately 15 minutes

Flashlight

Bluetooth

Safety rating

CAT Ⅲ 600V

General Characteristics

Power

AAA 1.5V x 2(No include)

Product color

Red+Gray

Product size

201.5 x 47 x 28mm

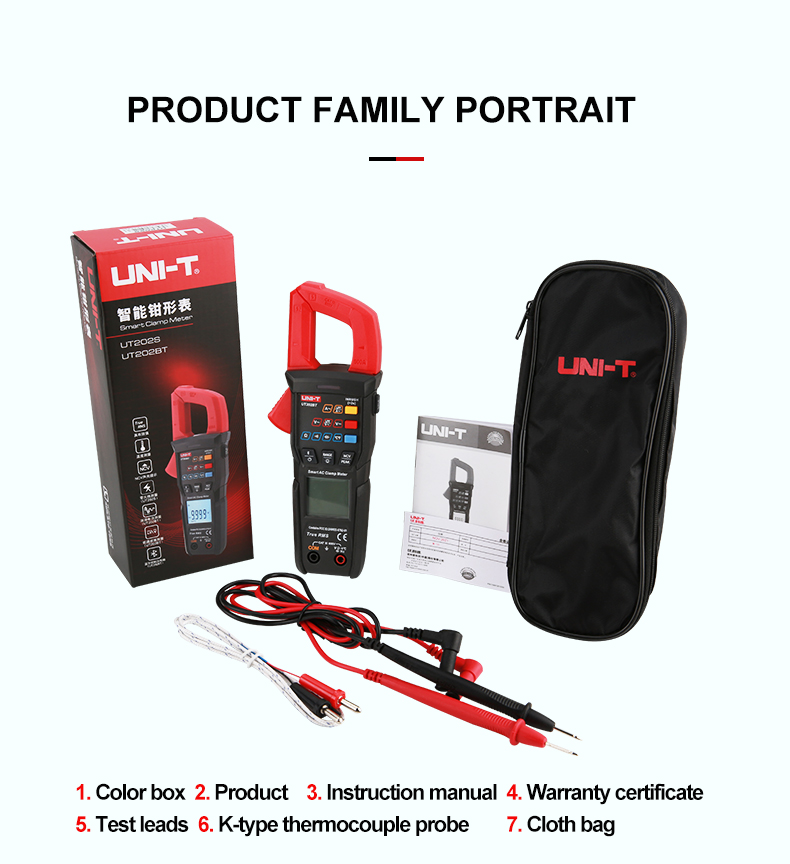

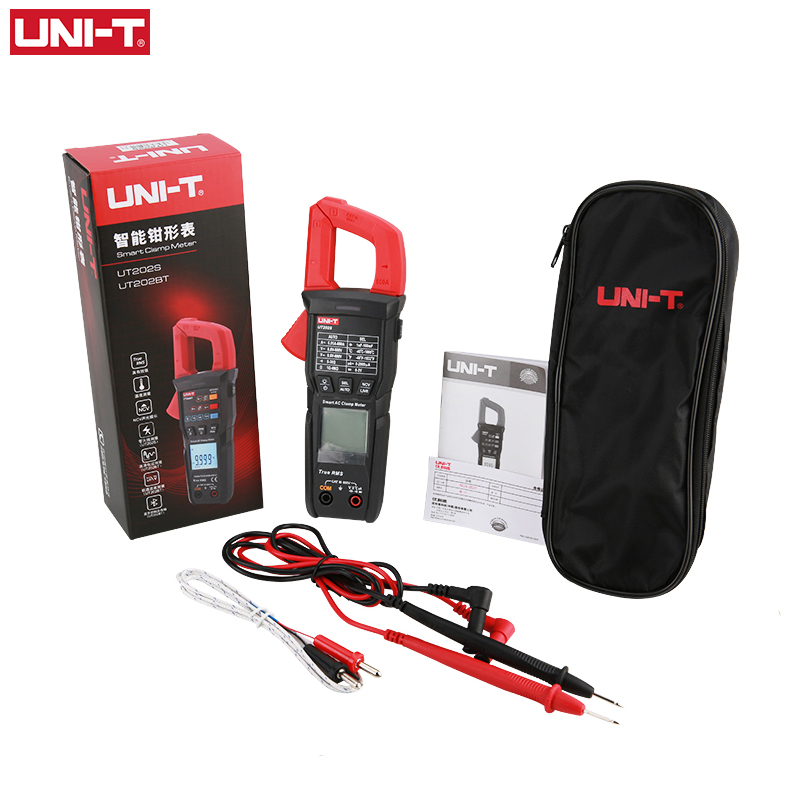

Standard accessories

Test leads,temperature probe

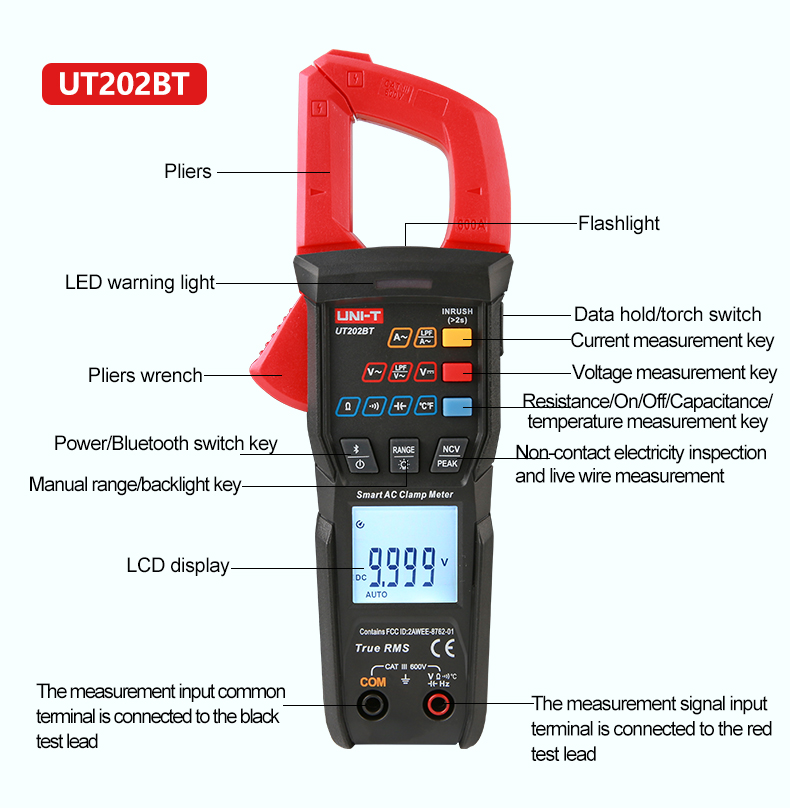

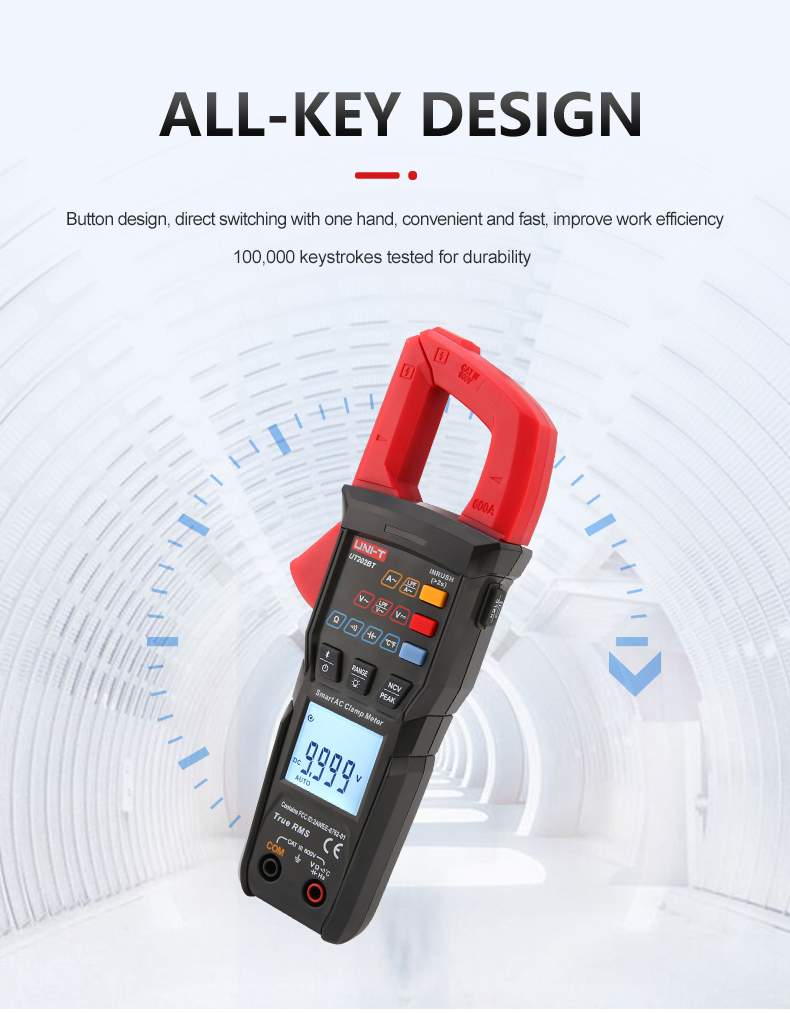

All-key design

One-hand operation and easy to use

Temperature measurement

Temperature range:-40℃~1000℃/-40℉~1832℉

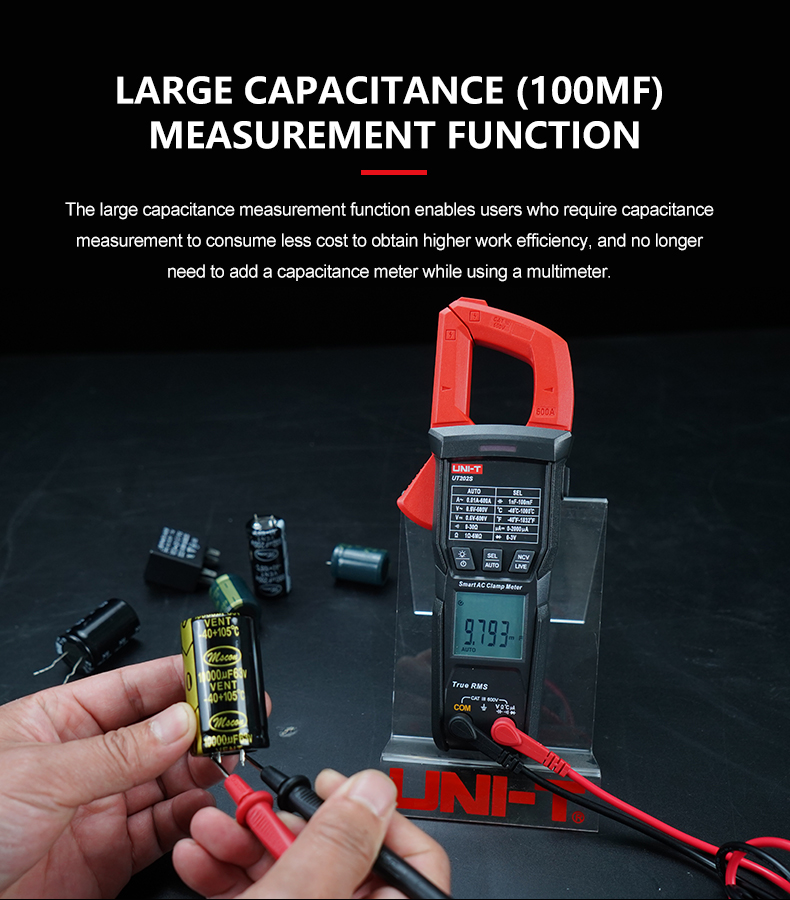

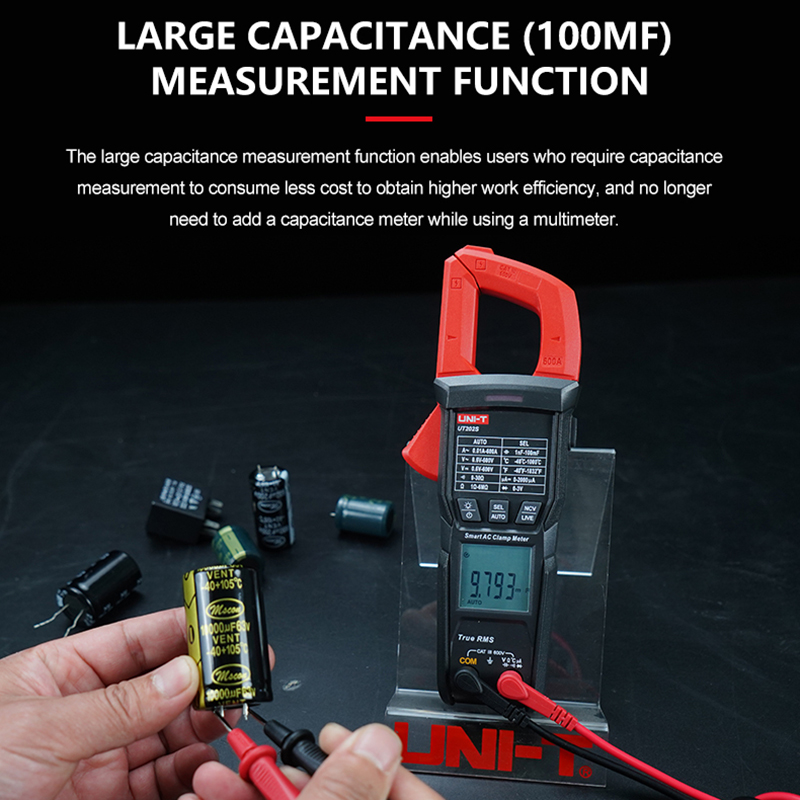

100MF large capacitance measurement function

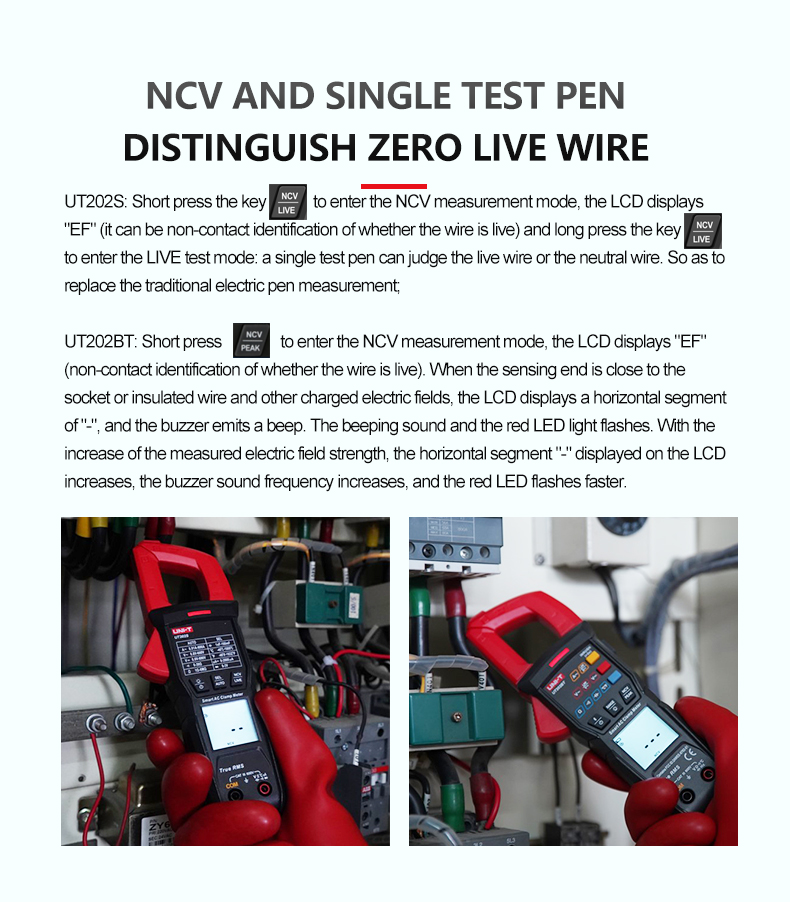

Non-contact voltage (NCV)

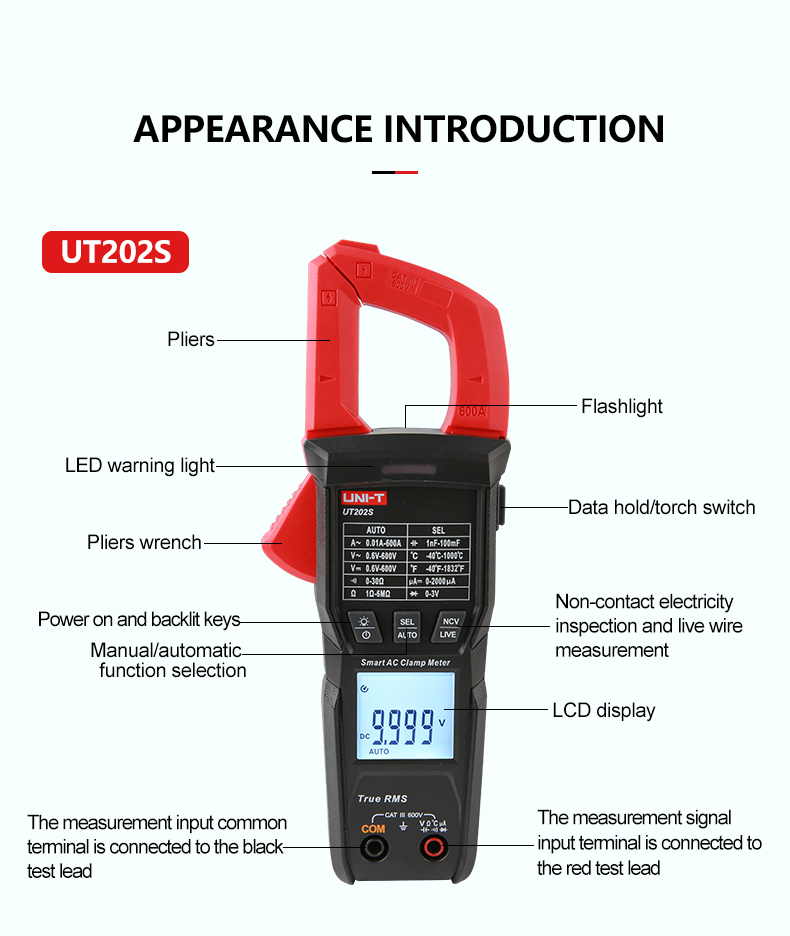

Automatic measurement (UT202S only)

Automatic identification and measurement of AC/DC voltage, AC current, resistance and circuit continuity

LPF low-pass filter measurement (UT202BT only)

Inrush current (UT202BT only)

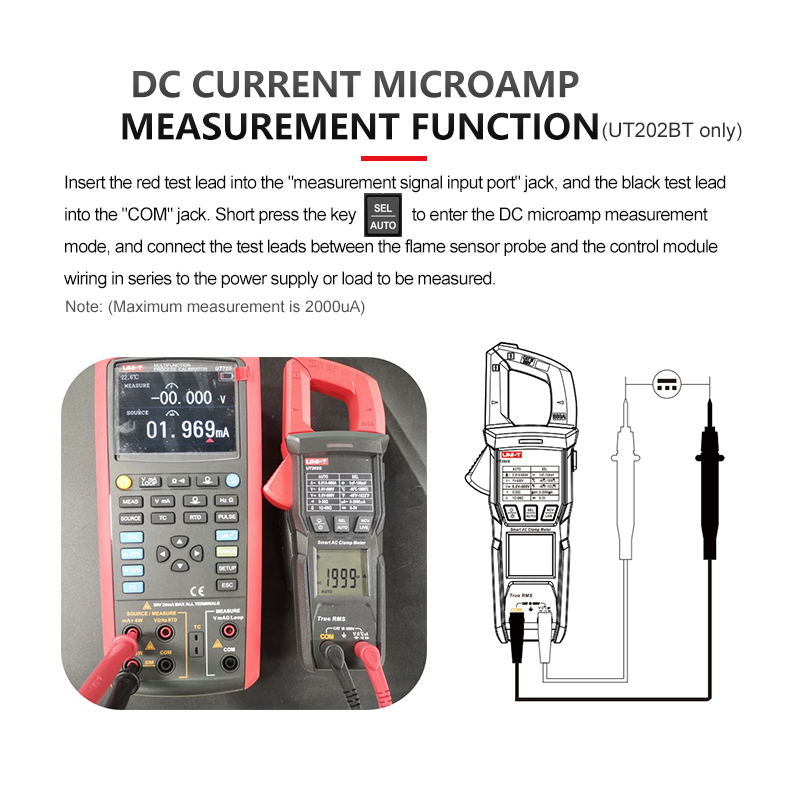

2000UA DC current microamp measurement (UT202BT only)

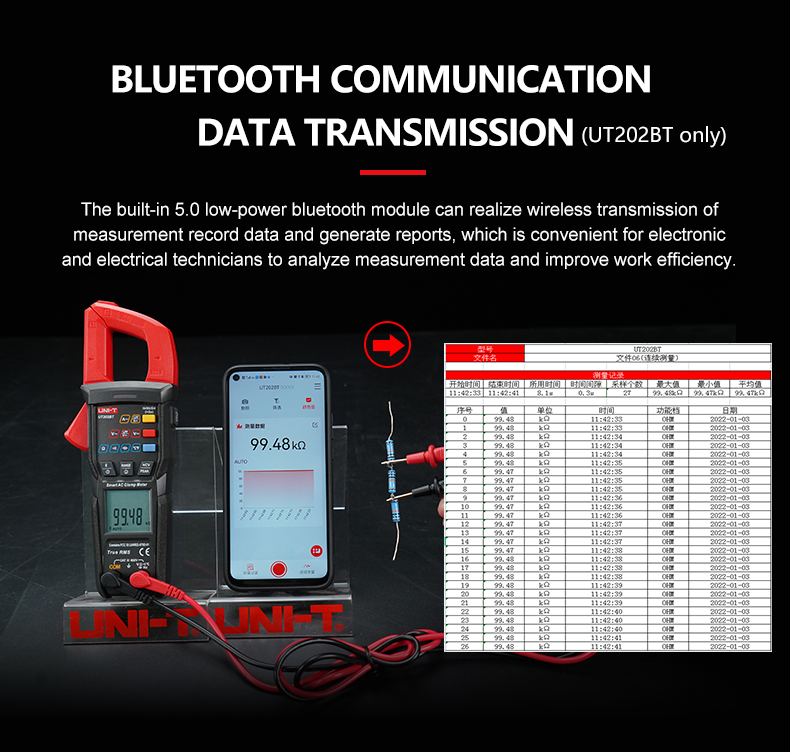

Bluetooth communication data transmission (UT202BT only)
